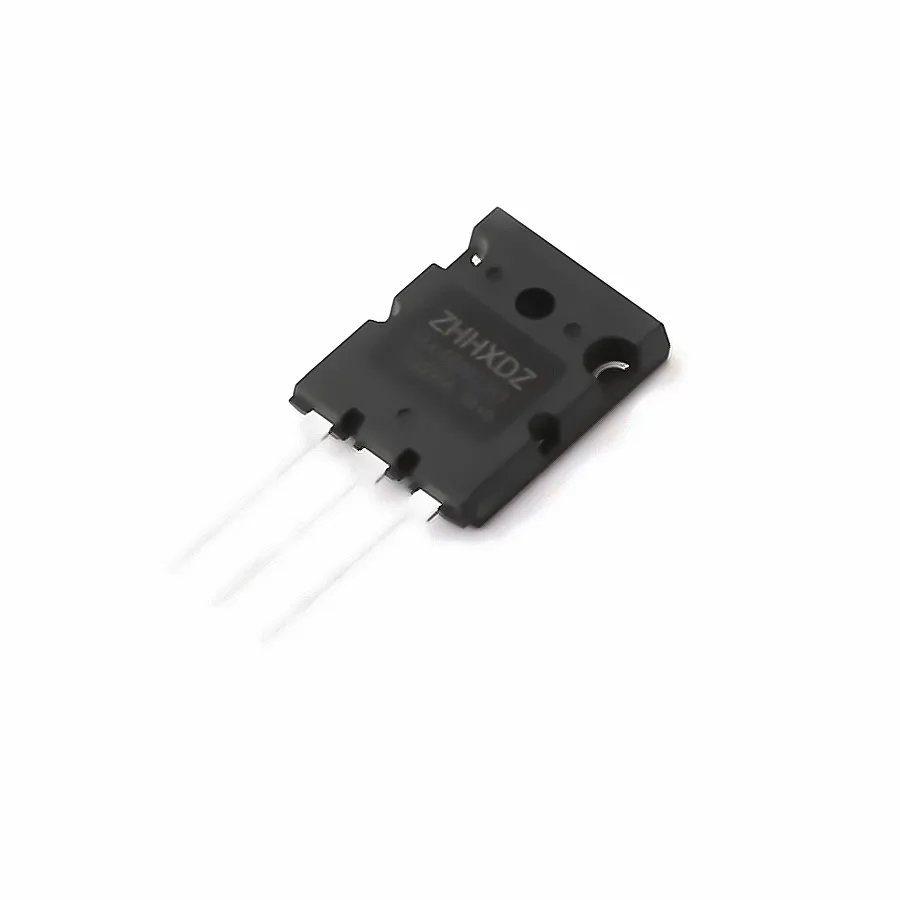

ZHHXDZ HX40N120-TO264
| Manufacturer | |
| Mfr. Part # | HX40N120-TO264 |
| EBEE Part # | E841399170 |
| Package | TO-264 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | TO-264 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>5 In Stock for Fast Shipping
5 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.0911 | $ 3.0911 |
| 10+ | $2.6424 | $ 26.4240 |
| 25+ | $2.3761 | $ 59.4025 |
| 100+ | $2.1069 | $ 210.6900 |
| 500+ | $1.9822 | $ 991.1000 |
| 1000+ | $1.9259 | $ 1925.9000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | ZHHXDZ HX40N120-TO264 | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 200V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.5V@250uA | |
| Pd - Power Dissipation | 500W | |
| IGBT Type | NPT (Non-Punch Through) | |
| Gate Charge(Qg) | 220nC@15V | |
| Td(off) | 110ns | |
| Td(on) | 15ns | |
| Reverse Transfer Capacitance (Cres) | 125pF | |
| Reverse Recovery Time(trr) | 75ns | |
| Switching Energy(Eoff) | 1.1mJ | |
| Turn-On Energy (Eon) | 2.3mJ | |
| Input Capacitance(Cies) | 3.2nF | |
| Pulsed Current- Forward(Ifm) | 240A | |
| Output Capacitance(Coes) | 370pF |
