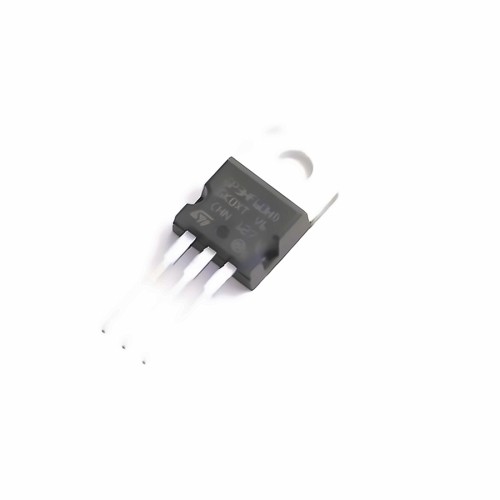

Images are for reference only
Add to Favourites
STMicroelectronics STGP3HF60HD
| Manufacturer | |
| Mfr. Part # | STGP3HF60HD |
| EBEE Part # | E83193384 |
| Package | TO-220 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 38W 7.5A 600V TO-220 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>4 In Stock for Fast Shipping
4 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.8460 | $ 1.8460 |
| 10+ | $1.5782 | $ 15.7820 |
| 30+ | $1.4097 | $ 42.2910 |
| 100+ | $1.2380 | $ 123.8000 |
| 500+ | $1.1608 | $ 580.4000 |
| 1000+ | $1.1262 | $ 1126.2000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGP3HF60HD | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.75V@250uA | |
| Pd - Power Dissipation | 38W | |
| IGBT Type | - | |
| Gate Charge(Qg) | 12nC | |
| Td(off) | 60ns | |
| Td(on) | 11ns | |
| Reverse Transfer Capacitance (Cres) | 3pF | |
| Reverse Recovery Time(trr) | 85ns | |
| Switching Energy(Eoff) | 12uJ | |
| Turn-On Energy (Eon) | 19uJ | |
| Input Capacitance(Cies) | 152pF | |
| Pulsed Current- Forward(Ifm) | 25A | |
| Output Capacitance(Coes) | 14pF |
