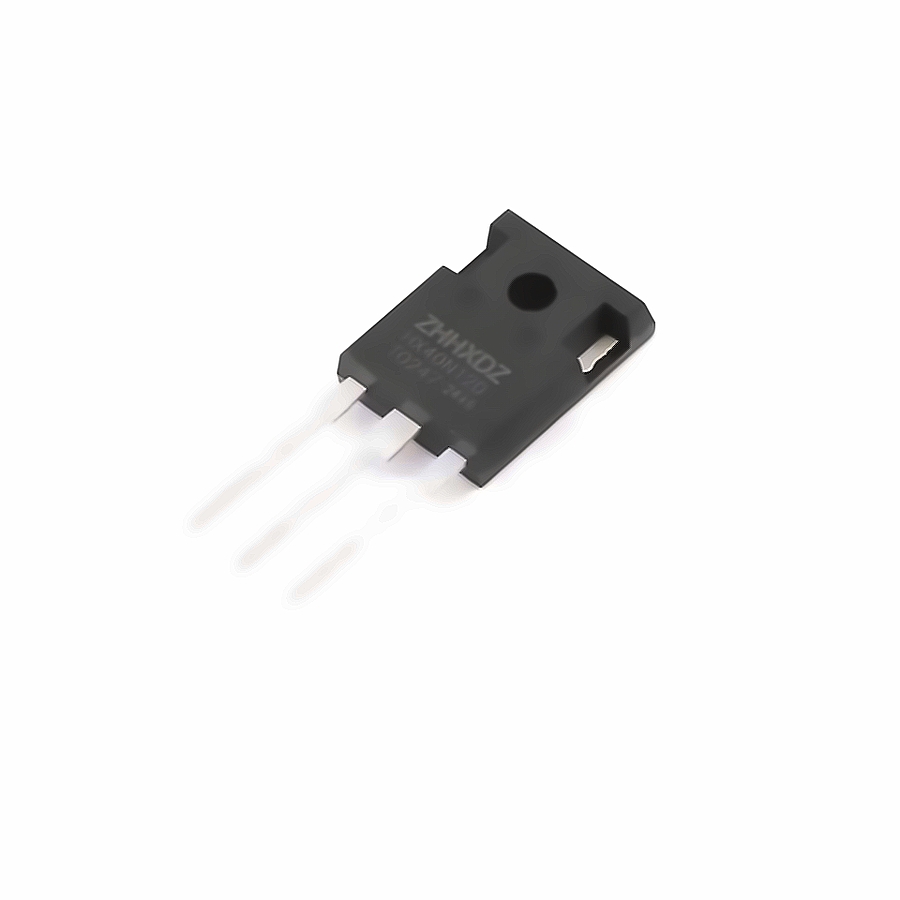

ZHHXDZ HX40N120-TO247
| Manufacturer | |
| Mfr. Part # | HX40N120-TO247 |
| EBEE Part # | E841399171 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | TO-247 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>48 In Stock for Fast Shipping
48 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.1128 | $ 2.1128 |
| 10+ | $1.7891 | $ 17.8910 |
| 25+ | $1.5846 | $ 39.6150 |
| 100+ | $1.3773 | $ 137.7300 |
| 500+ | $1.2834 | $ 641.7000 |
| 1000+ | $1.2414 | $ 1241.4000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | ZHHXDZ HX40N120-TO247 | |
| RoHS | ||
| Operating Temperature | -40℃~+175℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5V@1mA | |
| Pd - Power Dissipation | 483W | |
| Gate Charge(Qg) | 185nC@15V | |
| Td(off) | 290ns | |
| Td(on) | 30ns | |
| Reverse Transfer Capacitance (Cres) | 130pF | |
| Reverse Recovery Time(trr) | 355ns | |
| Switching Energy(Eoff) | 1.2mJ | |
| Turn-On Energy (Eon) | 3.2mJ | |
| Input Capacitance(Cies) | 2.33nF | |
| Pulsed Current- Forward(Ifm) | 160A | |
| Output Capacitance(Coes) | 185pF |
