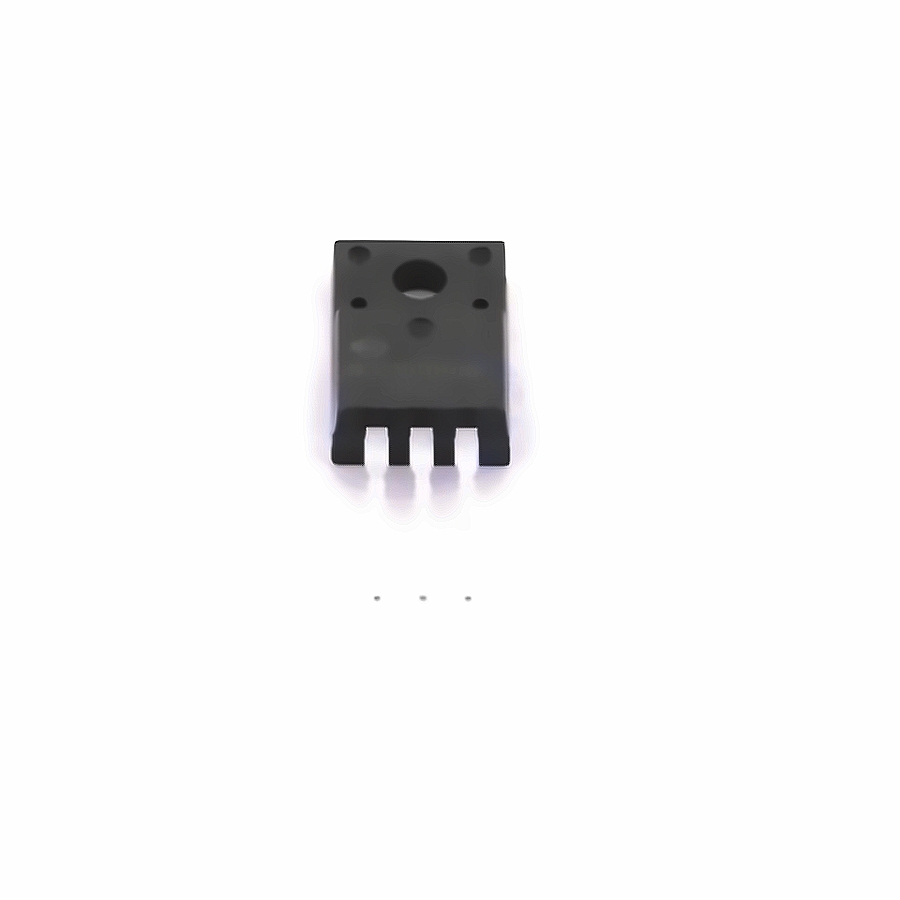

Images are for reference only
Add to Favourites
Wuxi NCE Power Semiconductor NCE30TD60BF
| Manufacturer | |
| Mfr. Part # | NCE30TD60BF |
| EBEE Part # | E8502942 |
| Package | TO-220F-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 35.5W 60A 600V TO-220F-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>203 In Stock for Fast Shipping
203 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.4822 | $ 1.4822 |
| 10+ | $1.2683 | $ 12.6830 |
| 50+ | $1.1524 | $ 57.6200 |
| 100+ | $1.0183 | $ 101.8300 |
| 500+ | $0.9604 | $ 480.2000 |
| 1000+ | $0.9332 | $ 933.2000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Wuxi NCE Power Semiconductor NCE30TD60BF | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | - | |
| Collector Current (Ic) | 60A | |
| Power Dissipation (Pd) | 35.5W | |
| Turn?off Delay Time (Td(off)) | 166ns | |
| Turn?on Delay Time (Td(on)) | 19ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Input Capacitance (Cies@Vce) | 3.552nF@25V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5V@1mA | |
| Total Gate Charge (Qg@Ic,Vge) | 132nC@30A,15V | |
| Diode Reverse Recovery Time (Trr) | 178ns | |
| Turn?off Switching Loss (Eoff) | 0.32mJ | |
| Turn?on Switching Loss (Eon) | 0.36mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.7V@30A,15V | |
| Diode Forward Voltage (Vf@If) | 1.7V@30A |
