Wio Tracker L1
| Manufacturer | |
| Mfr. Part # | 114993648 |
| EBEE Part # | 114993648-EB |
| Customer # | |
| EDA Models | |
| Description | The Wio Tracker L1 Series is a low-power, scalable Meshtastic node featuring LoRa (862–930 MHz), an nRF52840 for efficient processing, and an L76K GPS for precise location tracking.
The L1 version comes with an 1.3 inch OLED status panel for real-time feedback and system monitoring. |
This materials supports customized cables!
Learn more >>10 In Stock for Fast Shipping
10 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: Full Bag: 200
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | IoT/Communication Modules ,LoRa Modules |
Description
Feature

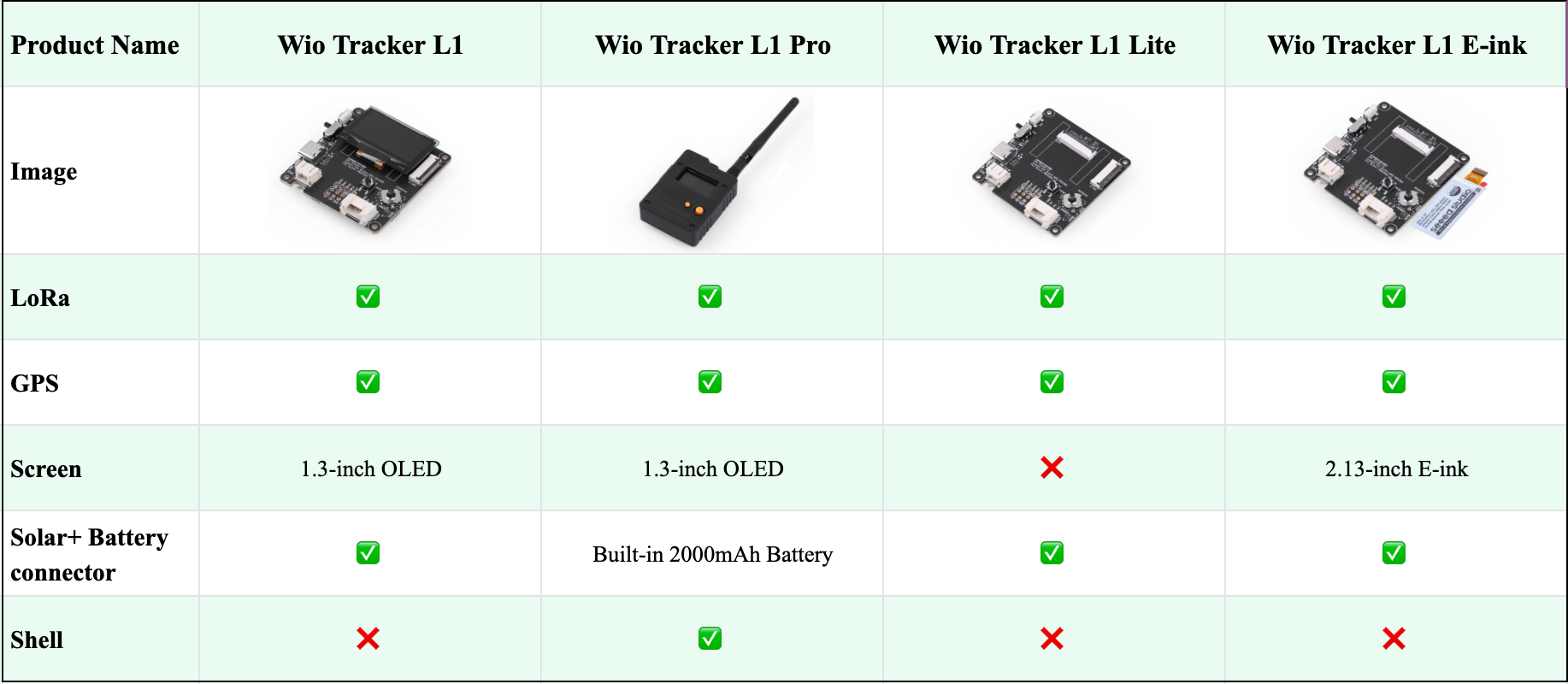

Note: The Wio Tracker L1 Series is available in four versions—choose the one that best fits your needs.
- Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
- Triple Power Supply Options
Supports Type-C fast charging, solar input, and Li-ion battery power for flexible deployment in various environments—ideal for outdoor and mobile applications.
- Flexible Display Support
Optional 1.3-inch OLED and 2.13-inch E-Ink screens, offering versatile display options for different power consumption and visual feedback needs.
- High Expandability
Fully compatible with the Grove ecosystem, and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Specification
|
Processor |
Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz |
|
On-chip Memory |
1 MB flash and 256 kB RAM |
|
Wireless |
LoRa: Based on Wio-SX1262, supports 862-930MHz |
|
Bluetooth 5.0 |
|
|
GPS |
L76K(GPS,BeiDou,GLONASS,QZSS) |
|
OLED Display |
Size: 1.3 inch |
|
Resolution: 128*64 pixels |
|
|
Active Area(mm): L34.5*W23.0*H1.47 |
|
|
Interface |
24P E-Ink Display Connector |
|
Grove Connector: UART/IIC/GPIO |
|
|
Plated Through Hole（PTH）: UART/IIC/GPIO/Analog |
|
|
Soldering pads reserved for SWD |
|
|
Power |
Type-C: 5v---1A |
|
Solar energy interface: 5v---1A |
|
|
Battery interface: 3.7v---1A |
|
|
Certification |
FCC, CE, RoHS |

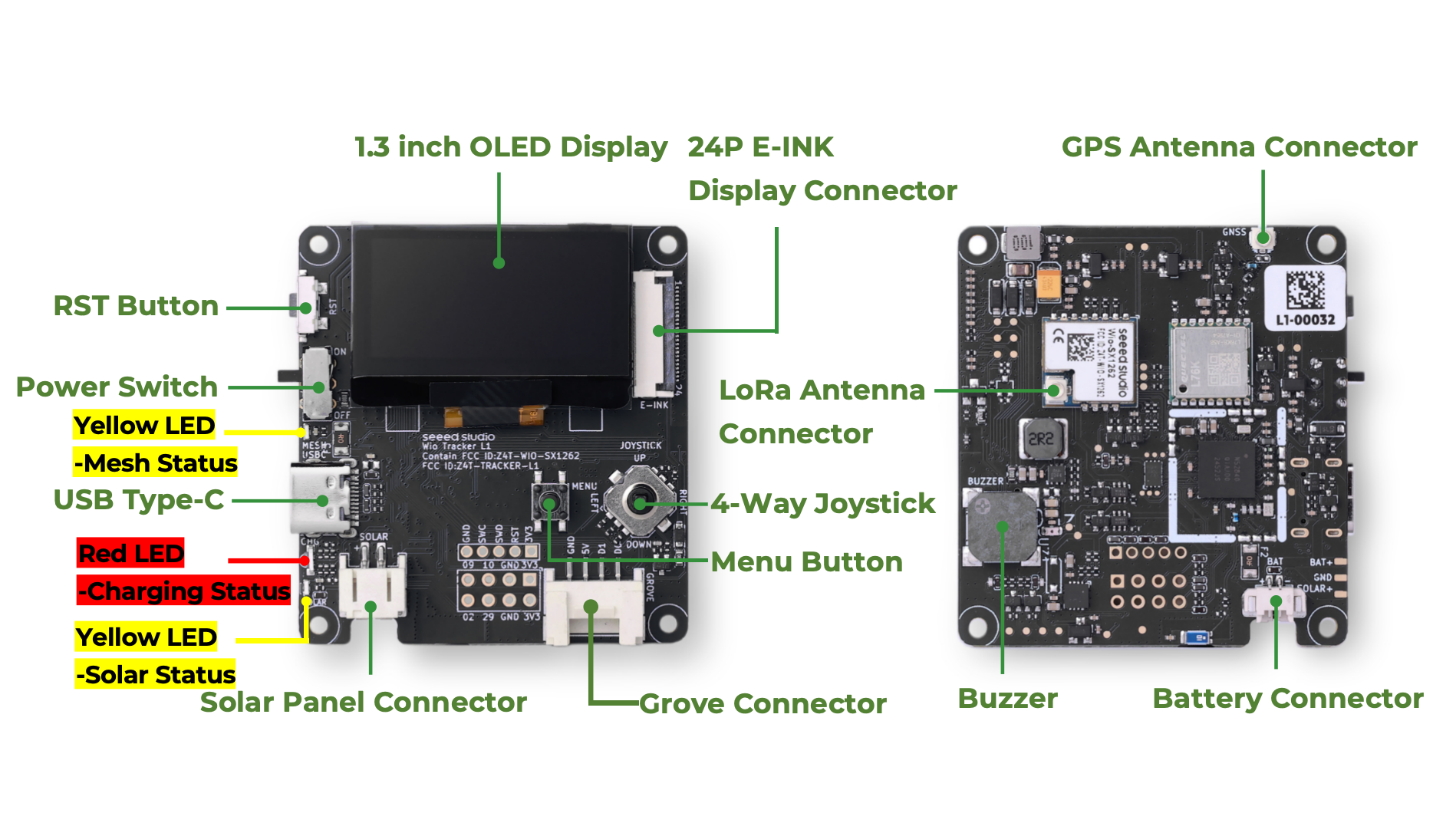

Hardware Overview

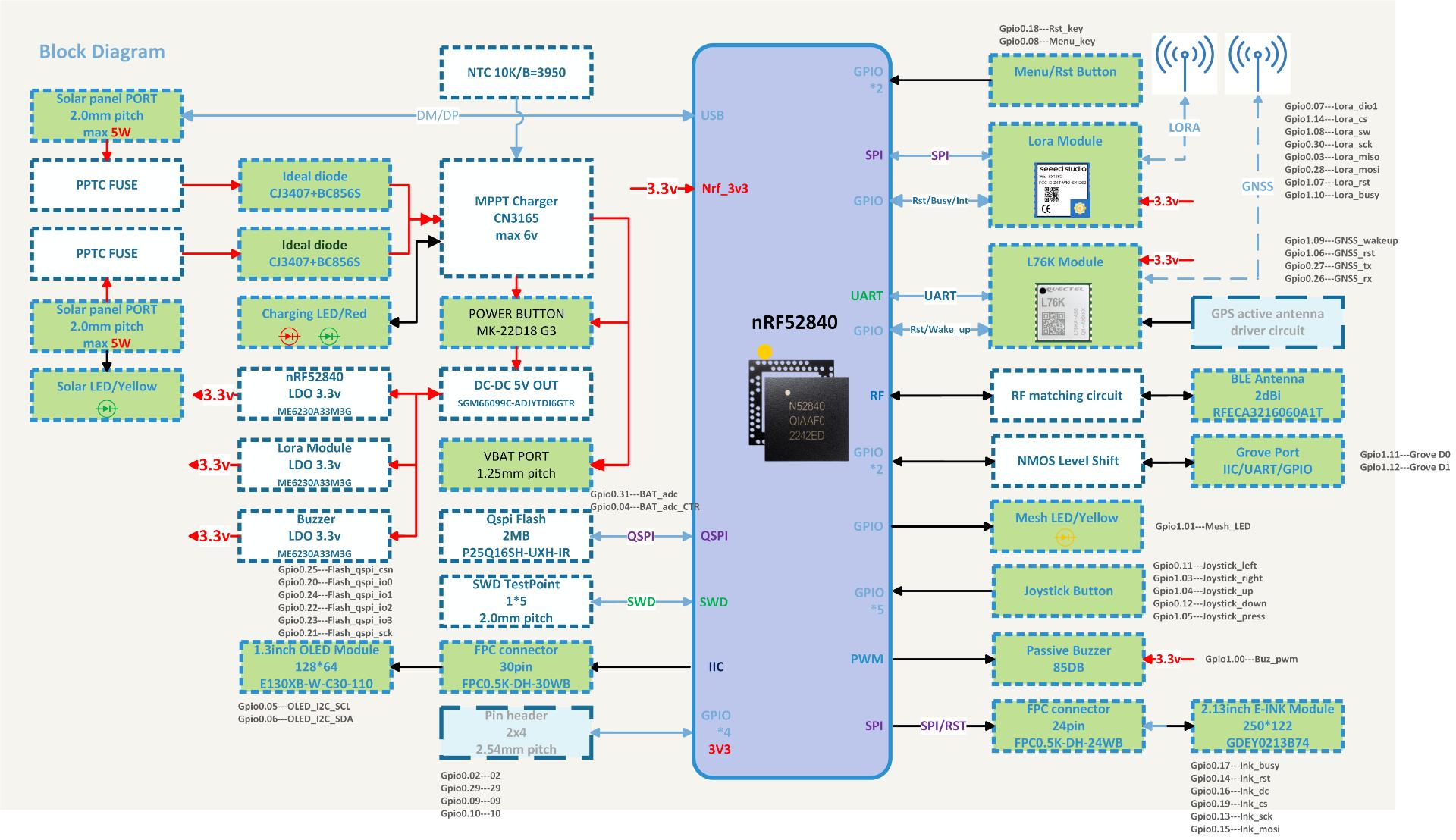

- Diagram
ECCN/HTS
| HSCODE | 8526919090 |
| USHSCODE | 8526910040 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |

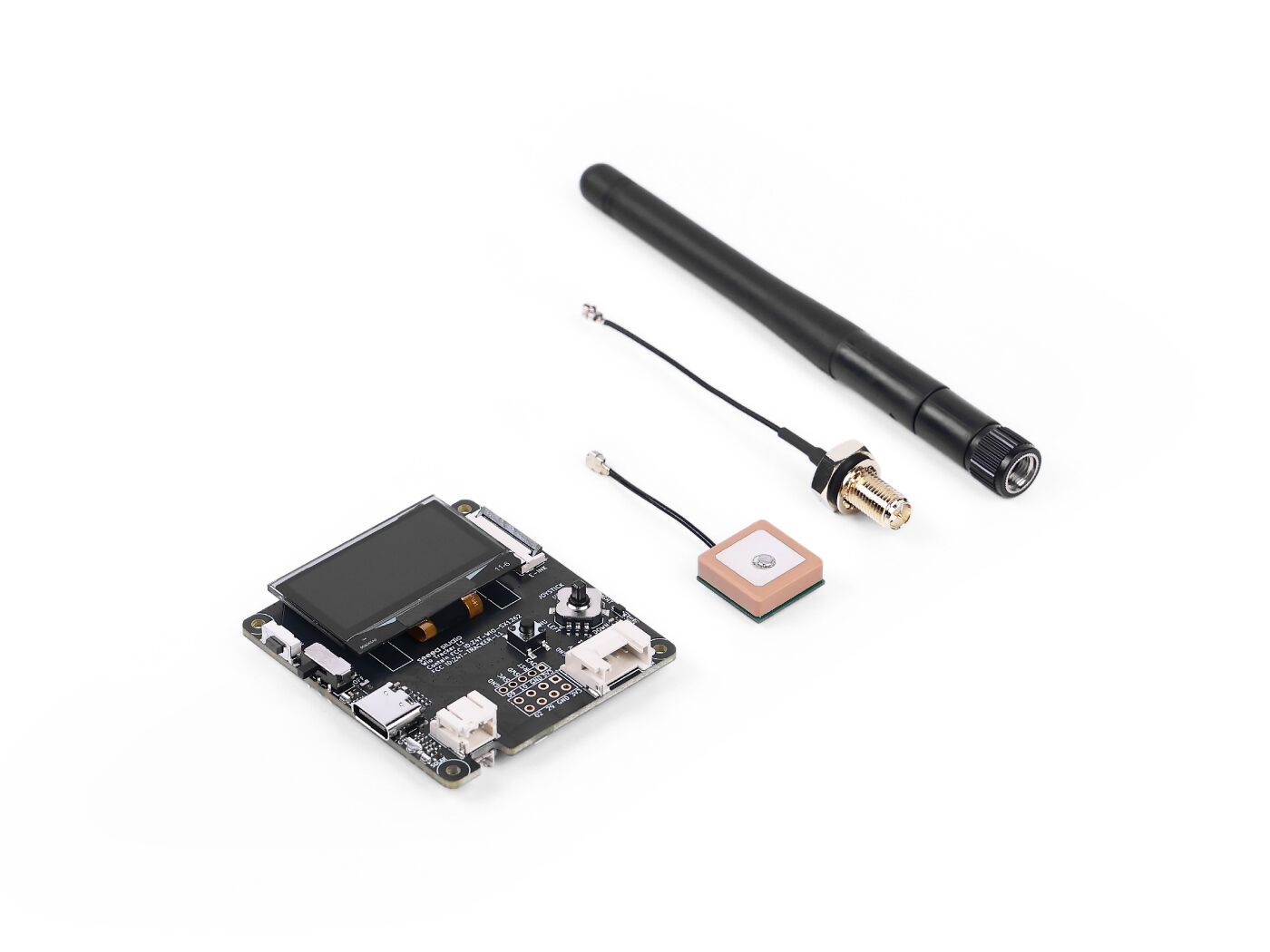

Part List
|
Wio Tracker L1 Board with 1.3 inch OLED |
x1 |
|
LoRa Antenna |
x1 |
|
60mm RF Cable(RP-SMA Female to IPEX) |
x1 |
|
GPS Antenna |
x1 |
