SenseCAP Card Tracker T1000-E for LoRaWAN
| Manufacturer | |
| Mfr. Part # | 114993591 |
| EBEE Part # | 114993591-EB |
| Customer # | |
| EDA Models | |
| Description | It features open-source software. It integrates diverse sensors and positioning tech, transmitting data to the cloud via LoRaWAN for real-time device monitoring and management. As an open-source device, LoRaWAN Tracker T1000-E offers full source code, enabling developers to customize and expand functions freely. |
This materials supports customized cables!
Learn more >>On Backorder
Minimum: 1Multiples: 1
Unit Price
$ 39.9000
Ext. Price
$ 39.9000
Can Ship in 1-2 Business Days
Sales Unit: Full Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | IoT/Communication Modules ,LoRa Modules |
Description
Feature
- Open - source Software: Offer full source code, enabling community contributions and custom dev.
- Multi - sensor Integration: Integrate temp, light, 3 - axis accel sensors. Support GNSS, WiFi & Bluetooth for indoor/outdoor positioning.
- Easy Configuration: Via SenseCraft App, users can easily configure device params.
- Strong LoRaWAN Support: Ensure quick device network access and config.
User - friendly Buttons: Simple button ops for power on/off, Bluetooth setup, SOS alarm, etc.
Open Firmware Ecosystem – Customize T1000-E Your Way
SenseCAP Card Tracker T1000-E for LoRaWAN built for versatility. It comes preloaded with LoRaWAN firmware out of the box, but thanks to its open hardware design and active developer community, the device is compatible with multiple firmware ecosystems – both officially supported and community-driven.
Whether you're deploying LoRaWAN-based asset tracking, setting up mesh networks, or experimenting with GNSS telemetry, T1000-E adapts to your needs.
1. LoRaWAN – Out-of-the-Box LoRaWAN Communication
Ideal for long-range, low-power IoT applications using public or private LoRaWAN networks.
- See and buy: SenseCAP Card Tracker T1000-E for LoRaWAN.
2. Meshtastic - Long-Range Offline Communication
A decentralized mesh network protocol for secure, off-grid messaging.
- See and buy: SenseCAP Card Tracker T1000-E for Meshtastic, fully tested and preloaded by Seeed Studio.
You can also flash the firmwares below yourself on your SenseCAP Card Tracker T1000-E for LoRaWAN and start exploring:
3. MeshCore – Lightweight Mesh Networking
An emerging alternative mesh stack optimized for long-range and low-power communication.
- Meshcore Official Flasher Tool
- Select “Seeed Studio SenseCAP T1000-E”
- Follow the instructions to flash and get started
4. SoftRF – GNSS-based Positioning & ADS-B
Open-source firmware for peer-to-peer GNSS telemetry, ADS-B reception, and geolocation experiments.
Tip: T1000-E for LoRaWAN comes with LoRaWAN firmware by default. Seeed Studio also provides a dedicated Meshtastic-compatible version. Other firmware options, such as MeshCore and SoftRF, are community-maintained – we encourage you to explore based on your specific application needs.
Specification
|
General Parameters |
|
|
Product Model |
T1000-E |
|
Backhaul |
LoRaWAN® (v1.0.4 Class A) |
|
Bluetooth |
Bluetooth v5.1, setting via SenseCraft App |
|
LoRaWAN Channel Plan |
IN865/EU868/US915/AU915/AS923/ KR920/RU864 |
|
Temperature |
Range: -20 to 60℃; Accuracy: ± 1℃; Resolution: 0.1℃ |
|
Light |
0 to 100% (0 is dark, 100% is brightest ) |
|
3-Axis Accelerometer |
3-Axis Accelerometer to detect movement |
|
LED and Buzzer |
1*LED and 1* buzzer to indicate status |
|
Button |
1*Button to operate and trigger events(SOS) |
|
Antenna |
Internal (GNSS/LoRa/Wi-Fi/BLE) |
|
Communication Distance |
2 to 5km (depending on gateway antenna, installation, and environments) |
|
IP Rating |
IP65 |
|
Dimensions |
85 x 55 x 6.5 mm |
|
Device Weight |
32g |
|
Operating Temperature |
-20℃ to +60℃ |
|
Operating Humidity |
5% - 95% (No condensation) |
|
Certification |
CE /FCC /RoHS |
|
Location |
|
|
GNSS Constellation |
GPS/GLONASS/Galileo/ BeiDou/QZSS |
|
GNSS Sensitivity |
-145dBm cold start / -160 dBm Tracking |
|
GNSS Location Accuracy |
~1m CEP, GPS, -130dBm |
|
Wi-Fi Positioning |
Passive scanning, uploads the scanned 3~5 MAC addresses |
|
Bluetooth Positioning |
uploads the scanned 3 best signal MAC addresses of Beacon |
|
Battery |
|
|
Battey Capacity |
Rechargeable lithium battery, 700mAh |
|
*Battery Life Estimates |
3 months on a single charge(uplink every 1 hour, only GNSS data) |
|
Battery Life Monitoring |
Periodic uplink battery level |
|
Charge Cable (Adapter not included) |
USB magnetic charging cable, 1 meter |
|
Power Input Voltage |
4.7 to 5.5V DC |
|
Charging Temperature |
0 to +45℃ |

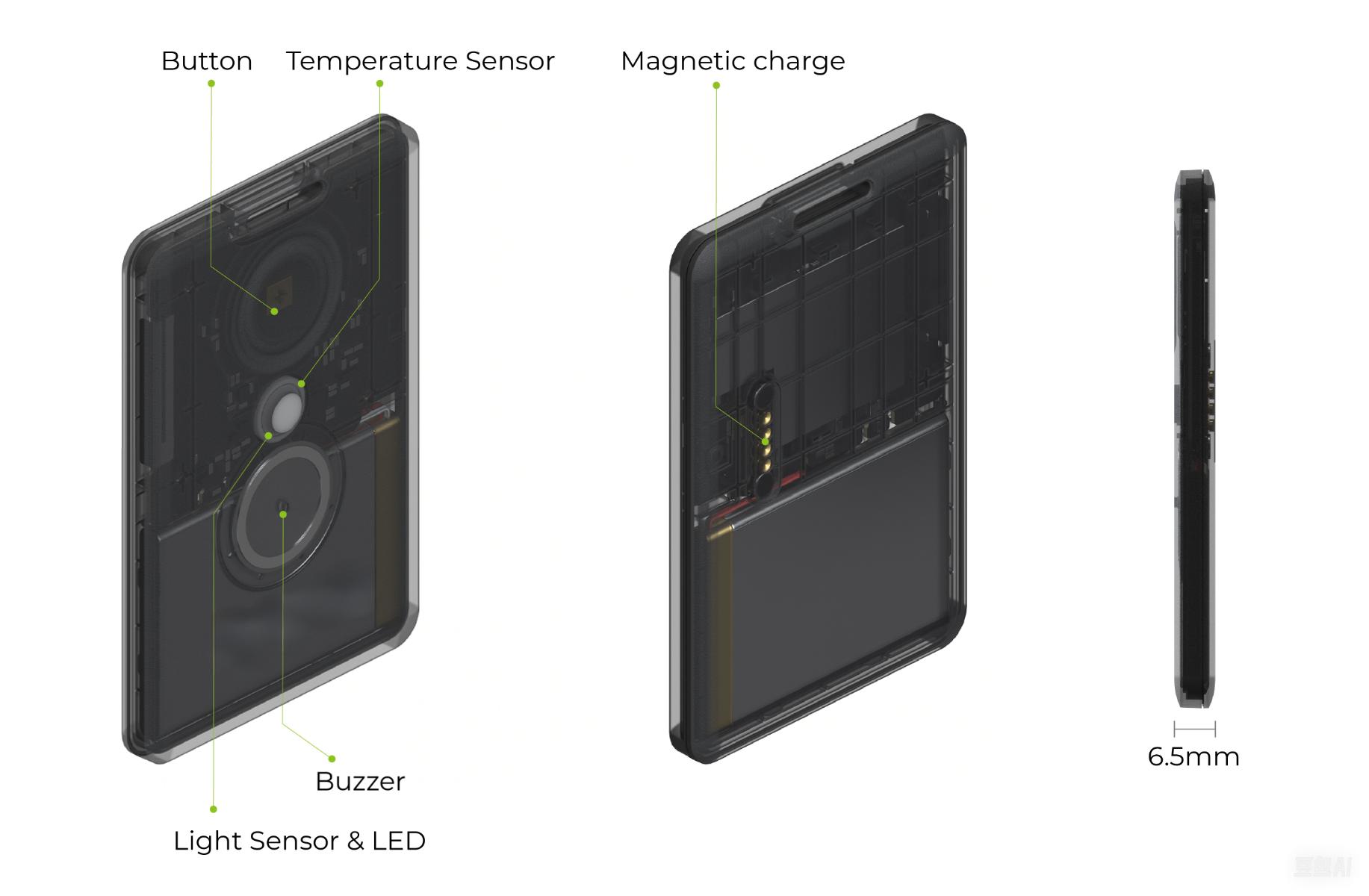

Hardware Overview
Application
- Asset Tracking: Monitor asset status and location remotely. Transmit location data to the cloud via LoRaWAN. Users can view real - time position and trajectory on mobile or PC management platforms.
- Environmental Monitoring: Leverage built - in thermal, photosensitive sensors and 3 - axis accelerometer. Collect and upload environmental data in real time via LoRaWAN for remote parameter monitoring.
- Logistics Management: Install on vehicles or packages. Track cargo transport status (routes, stops, on - time arrival) in real time, aiding logistics firms in scheduling and management.
ECCN/HTS
| HSCODE | 9031809090 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 9013101000 |
| COO | CHINA |

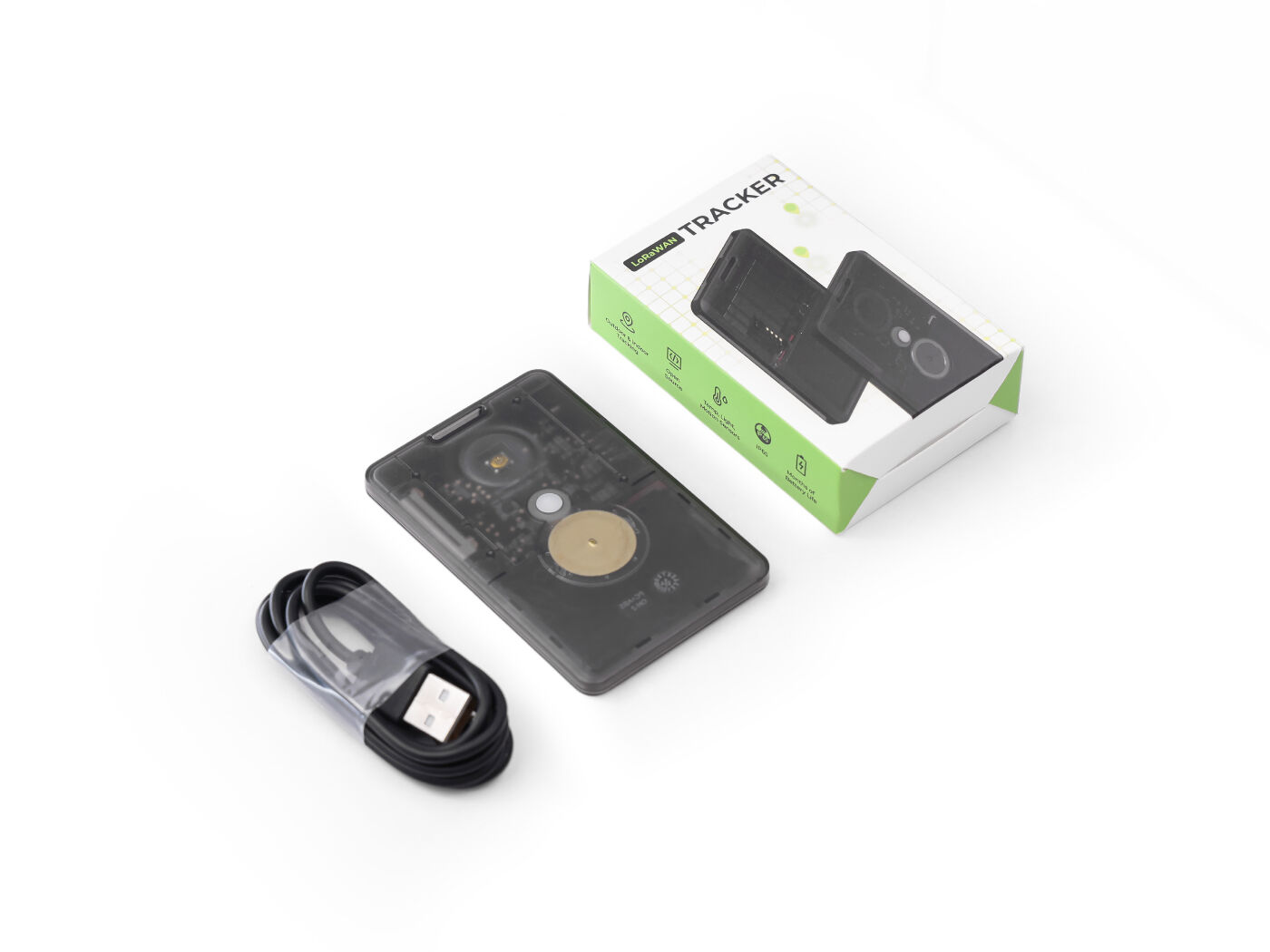

Part List
|
Tracker T1000-E |
x1 |
|
USB Cable (Adapter not included) |
x1 |
