SenseCAP Solar Node P1-Pro for Meshtastic
| Manufacturer | |
| Mfr. Part # | 114993633 |
| EBEE Part # | 114993633-EB |
| Customer # | |
| EDA Models | |
| Description | It is a solar-powered communication node that integrates the XIAO nRF52840 Plus main controller, the Wio-SX1262 LoRa module, and the XIAO L76K GPS module. It is specifically designed for areas without network coverage. With a built-in battery, it supports long-distance communication, precise positioning, and low-power operation. It's suitable for expanding network coverage in outdoor areas. |
This materials supports customized cables!
Learn more >>In Stock: 10
Minimum: 1Multiples: 1
Unit Price
$ 89.9000
Ext. Price
$ 89.9000
Can Ship in 1-2 Business Days
Sales Unit: Full Bag: 200
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | IoT/Communication Modules ,LoRa Modules |
Description
Feature
Note:
The SenseCAP Solar Node P1-Pro has positioning function and four 18650 batteries. If you have your own batteries and don't need positioning, please choose the SenseCAP Solar Node P1.
To replace the battery, use Button-top 18650 battery.

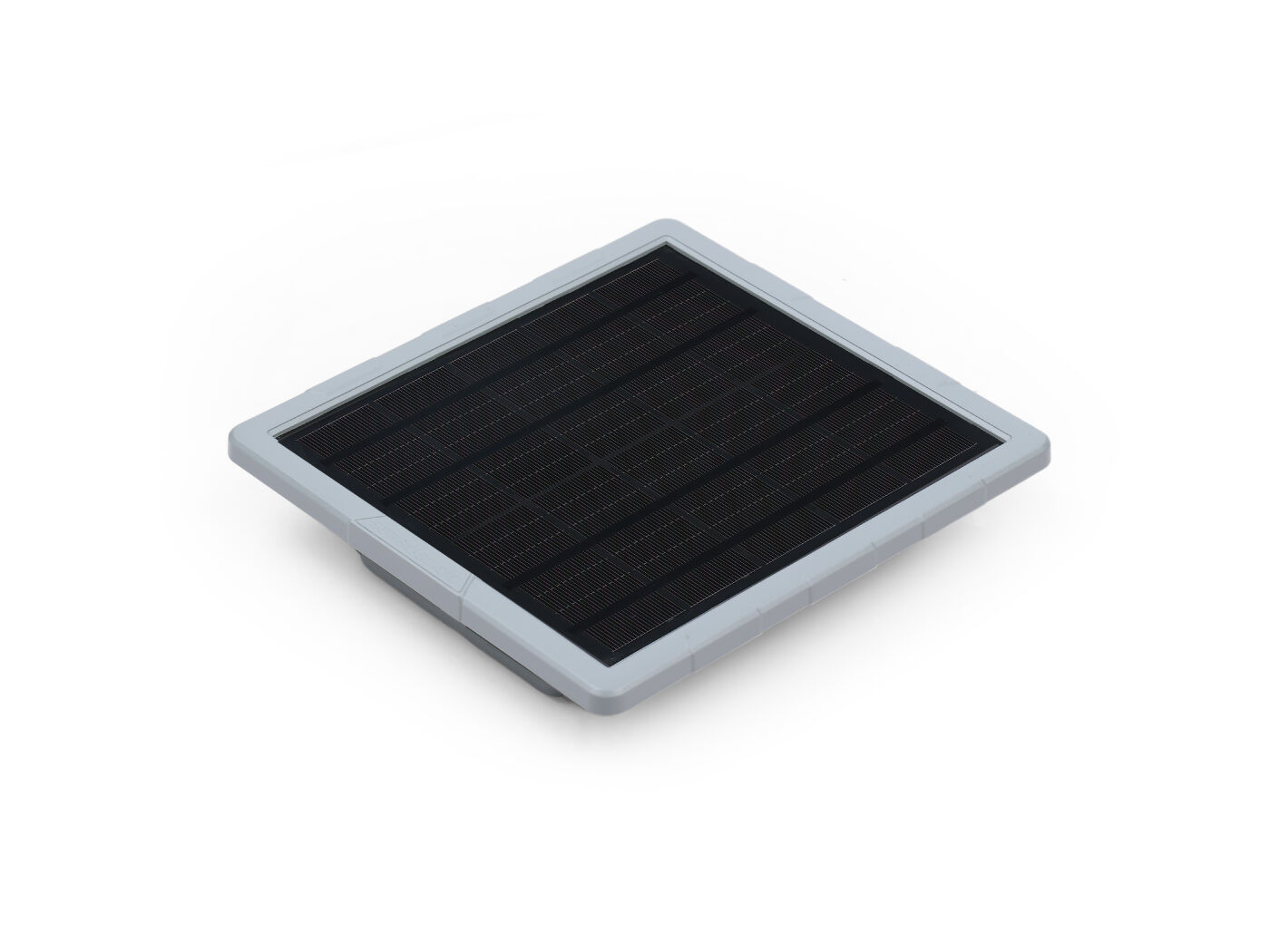

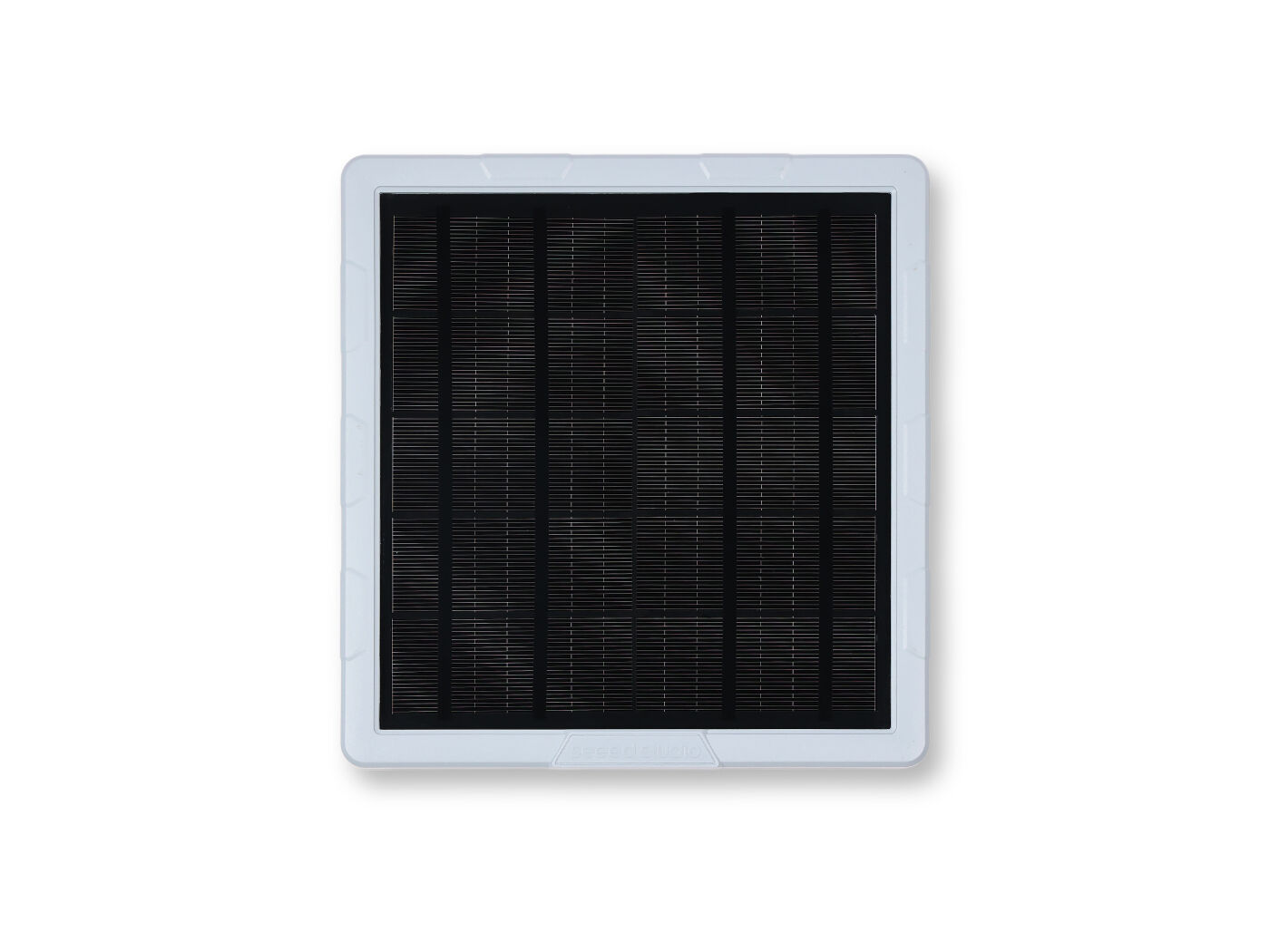

- Utilizes a 5W solar panel in combination with 4*18650 batteries with a capacity of 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply.
- The device comes pre-flashed with Meshtastic firmware at the factory.
- Features a built-in XIAO L76K GPS module, enabling high-precision real-time positioning. It supports real-time sharing of location information, providing reliable location assurance for outdoor activities.
- Equipped with a Grove interface, it is convenient to connect various sensors, such as temperature and humidity sensors. This meets diverse monitoring needs and enables easy functional expansion.
- It is suitable for long-term outdoor use.
- The communication range between the two devices can reach 8-9KM in open areas. It can seamlessly integrate into the Meshtastic ecosystem and be used as an outdoor node or repeater to easily expand the Mesh network, enhancing network coverage.
- Accessory Options If you need an antenna with higher gain, we recommend the 860-930MHz 3dBi fiberglass antenna.
- Plug-and-play: Comes with a standard RF cable, which can be directly inserted into the pre-drilled hole (standard D-shaped hole) on the Solar Node bracket
- Three-step installation: Align → Insert → Lock
Specification
|
Main controller |
XIAO nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash) |
|
LoRa Module |
Wio-SX1262 Module (Semtch SX1262, TXOP=22dBm@862-930MHz) |
|
GPS Module |
XIAO L76K (Support GPS/GLONASS/Galileo) |
|
Antenna |
LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi |
|
GNSS: GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz |
|
|
Bluetooth 5.0 |
|
|
Solar Panel |
5W |
|
Interface |
Grove *1: IIC/GPIO/UART |
|
USB-C debugging |
|
|
Button |
Power on/off |
|
Reset |
|
|
User-defined |
|
|
LED |
Charging status indicator lights *2 |
|
Solar panel status indicator light *1 |
|
|
Mesh heartbeat light *1 |
|
|
User-defined *1 |
|
|
Power supply |
Type-C: 5V 1A |
|
Solar power supply: 5V 1A |
|
|
Battery |
4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40 ~ 60°C ● Charging environment: 0 ~ 50°C |
|
Certification |
FCC、CE |
|
Dimension |
191.2 x 201.2 x 42.1 mm |

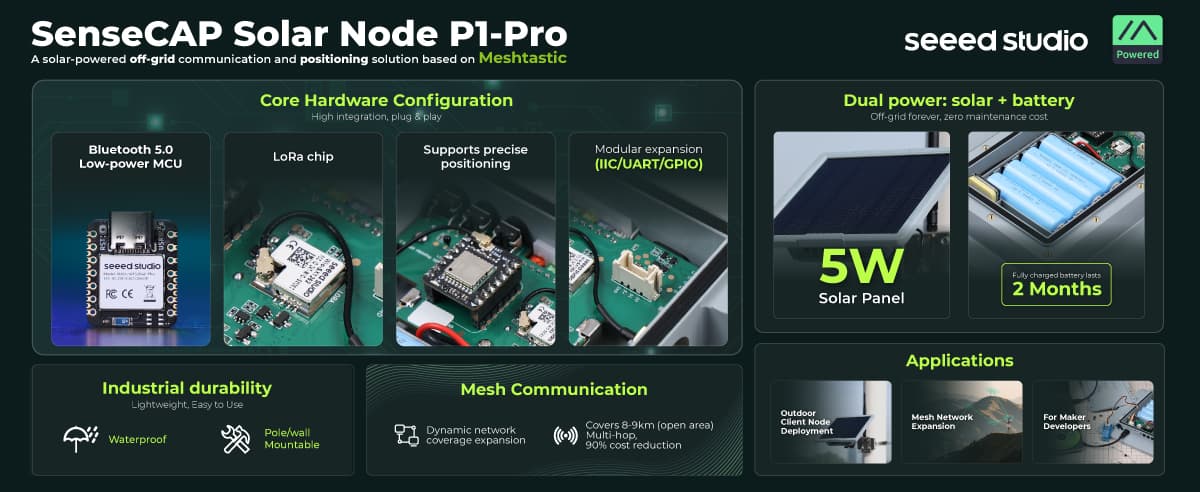

Hardware Overview
- Diagram
- Overall effect diagram
- Accessories diagram
①
2dbi, 868~915MHz rubber rod antenna
②
Universal joint bracket, angle adjustable.
③
Bracket connector, can support the antenna
④
RF Cable; RP-SMA Male to RF-SMA Female; 300mm
⑤
Hoop bracket
Diameter:
70-100mm
⑥
Hoop ring

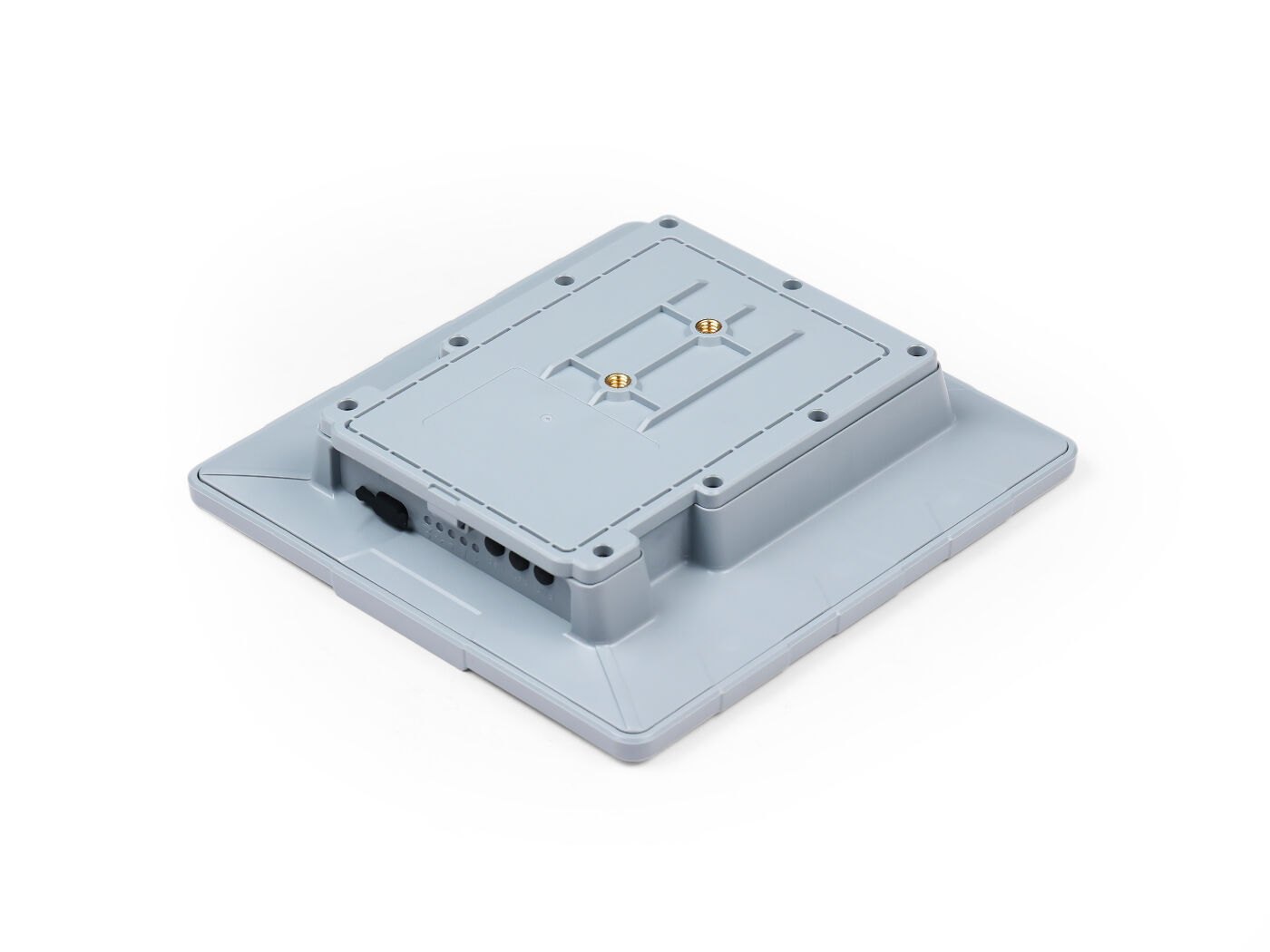

- Interactive items
⑦
Power switch
⑧
Reset
⑨
User-defined
⑩
Red light on: Charging
⑪
Green light on: Charged
⑫
Yellow light on: Device is exposed to light.
⑬
Blue light: Mesh heartbeat
⑭
White light: User-defined
⑮
Type-C: 5V 1A
- Dimension diagram
Application
- Outdoor Adventure: Send real-time location and text messages in areas without network coverage.
- Mesh Network Expansion: Serve as a Mesh relay node to expand the coverage of the existing Meshtastic network. Support multi-hop transmission, where data can be relayed through multiple nodes, enhancing network reliability.
- Educational Experiments: Learn about the development of Meshtastic and LoRa decentralized networks.
- Environmental Monitoring: Provide a Grove interface to connect sensors for remote monitoring of the environment (such as temperature, humidity, air quality, etc.).
ECCN/HTS
| HSCODE | 8541402000 |
| USHSCODE | 8541410000 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |

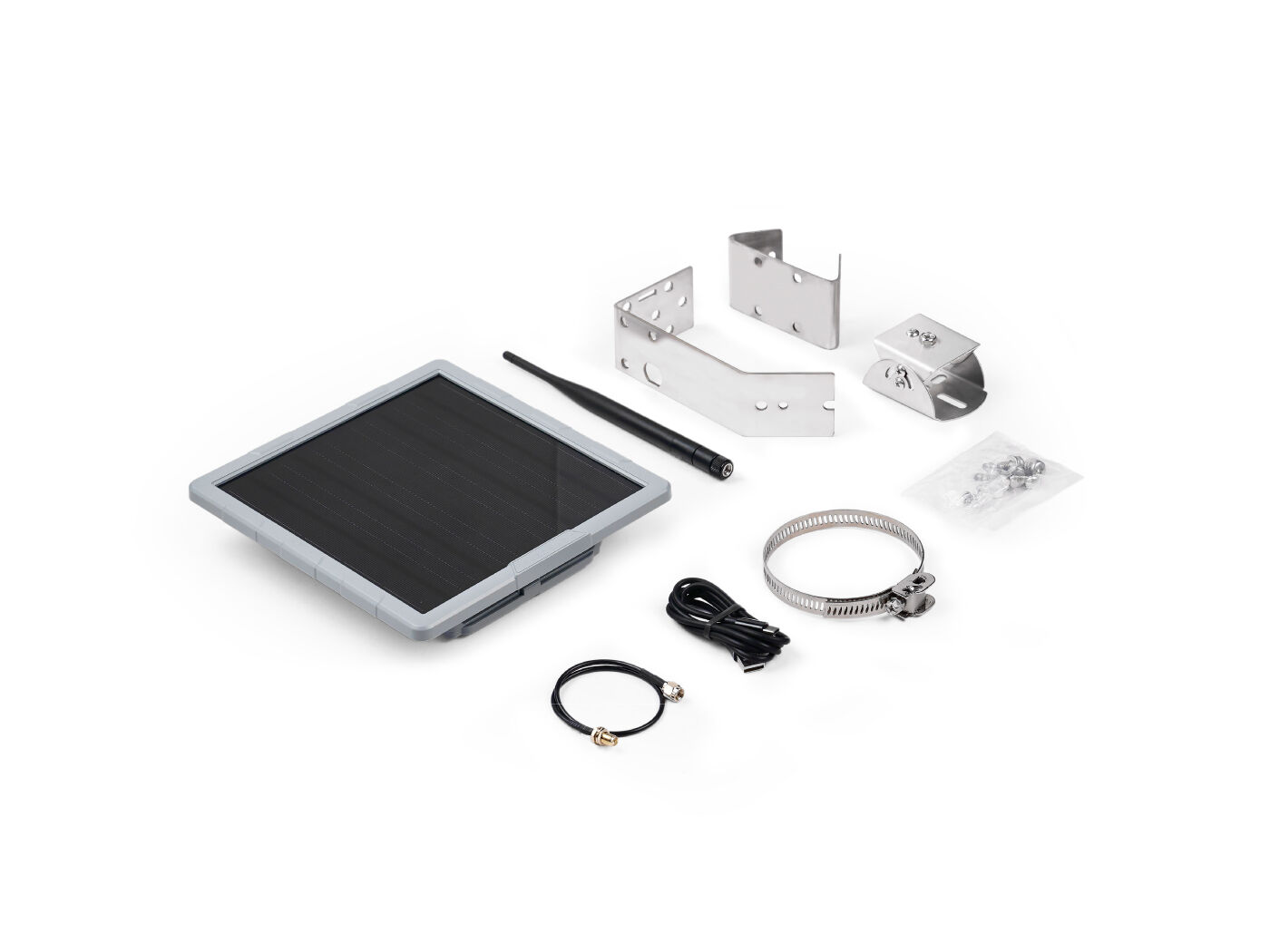

Part List
|
SenseCAP Solar Node P1-Pro (with GPS & battery) |
x1 |
|
Mounting Brackets ● Universal Joint ● Connector ● Hoop Bracket ● Hoop Ring |
x1 |
|
2dBi 868 - 915MHz Rubber Rod Antenna |
x1 |
|
RF Cable: RP-SMA Male to RF-SMA Female-300mm |
x1 |
|
Black Type-C Cable |
x1 |
|
User Manual |
x1 |
