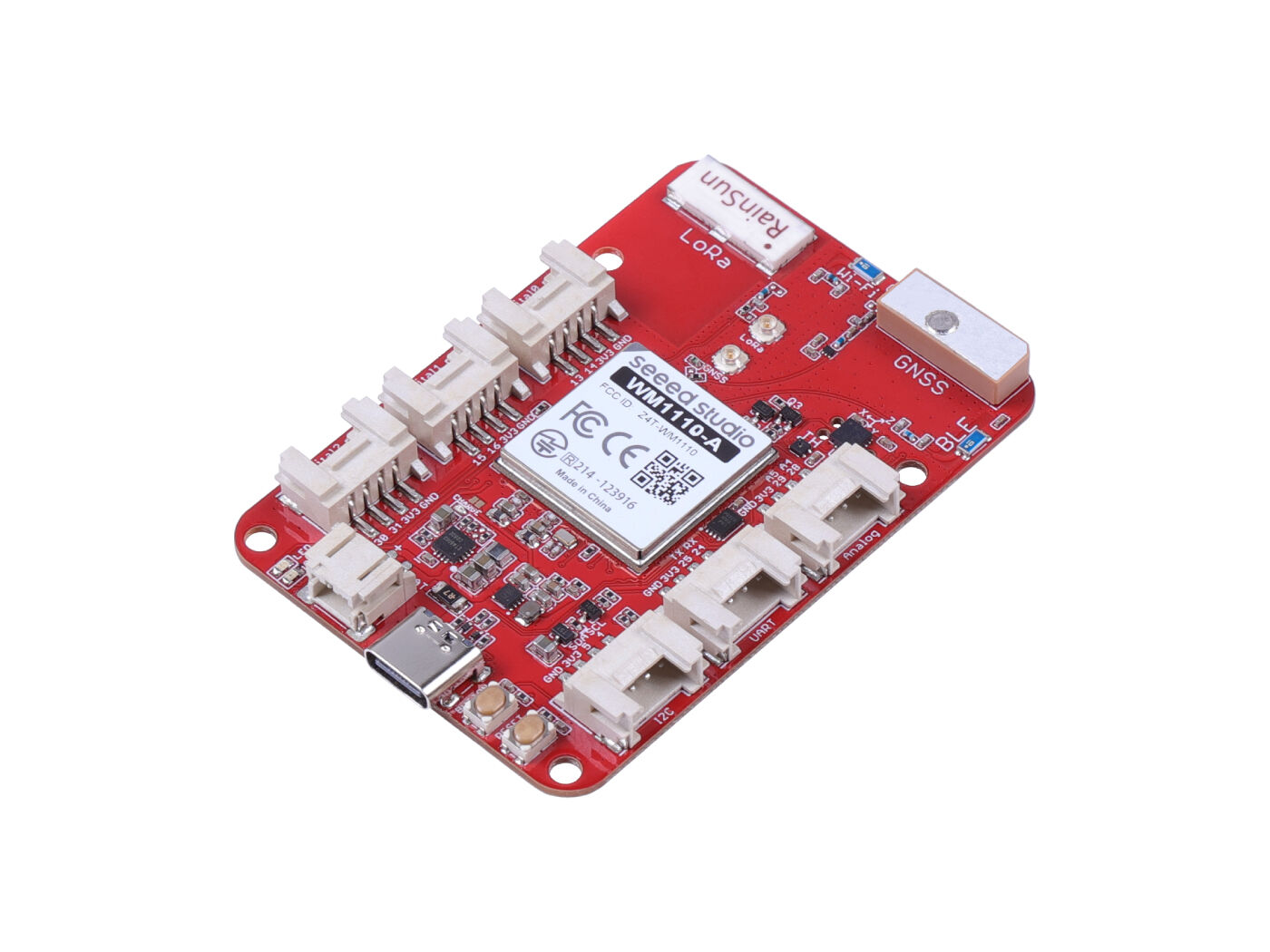

Wio Tracker 1110 Dev Board- the Tracker Prototype for Indoor and Outdoor Positioning

Feature

• Powerd by Nordic nRF52840 and Semtech LR1110
• Offers multiple connectivity options including: LoRa®, GNSS(GPS/BeiDou), Bluetooth, Wi-Fi Sniffer
• Supports over 300+ Seeed Grove Sensors: making it highly adaptable for different tracking and sensing requirements.
• Onboard temperature sensor, humidity sensor, and a 3-axis accelerometer: capturing a wide range of environmental and motion data
• Fully Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities.
• Arduino IDE compatibility: allowing ease of programming and a familiar environment for developers.

Description

Low Power LoRa® Transceiver

Benefiting from Semtech's LR1110, the Wio-Tracker 1110 Dev Board provides long-distance, low-power LoRa® communication. To learn about Long Range and its features such as network architecture and applications, you can check out An introduction of LoRa® and LoRaWAN® technology, It explains what Long Range is, how it works, and its pros and cons.

Multiple positioning technologies

The Wio-Tracker 1110 Dev Board integrates Multi-Purpose Radio Front-End Targeting Geolocation Purposes. It's equipped with GNSS(GPS/BeiDou) dedicated to outdoor positioning, as well as Wi-Fi Sniffer and Bluetooth scanning for indoor positioning. It's able to automatically transition between outdoor and indoor activities, replacing the need to build different trackers for indoor or outdoor use, this provides all-around location coverage while reducing complexity and cost.

Rich peripherals

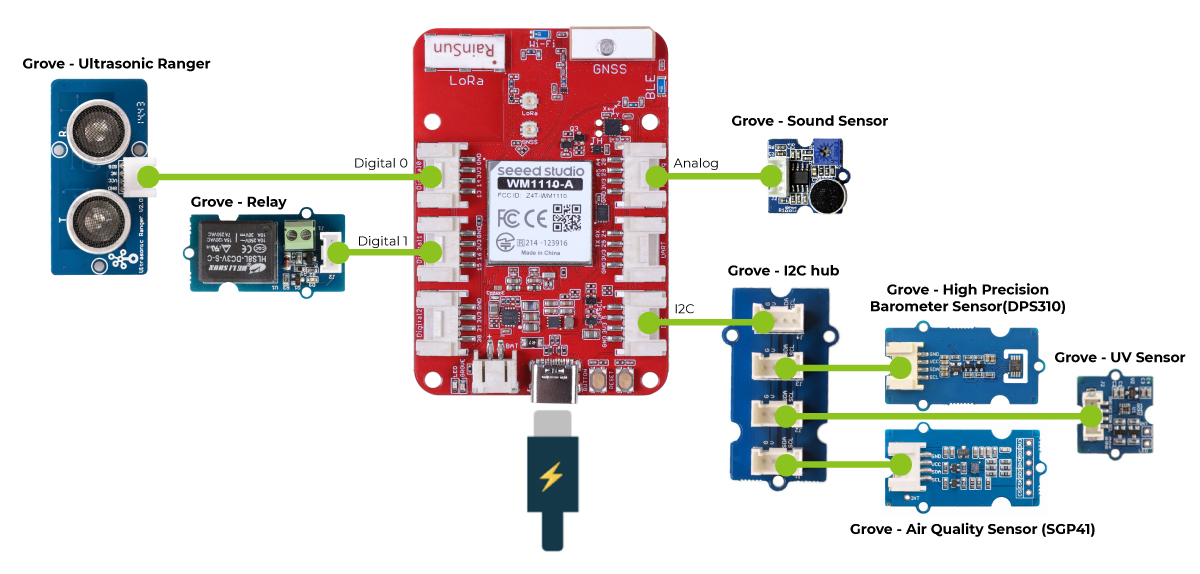

In addition to the onboard temperature and humidity sensor(SHT41) and 3-axis accelerometer(LIS3DHTR), it features a series of peripheral interfaces, and supports ADC/UART and IIC transmission protocols, which can be connected to 300+ Grove modules, enabling easy upgrades to smarter solutions.



Quick Start Demo

We provide a plug-and-play demo, where users can simply scan a QR code, connect the power, get location and sensor data on the SenseCAP Mate APP within 5 minutes.



Develop User Applications

Wio-Tracker 1110 Dev Board is a fully open-source powerful IoT development platform, compatible with Arduino IDE, it comes with a set of example applications and code samples to help you get started smoothly and quickly.

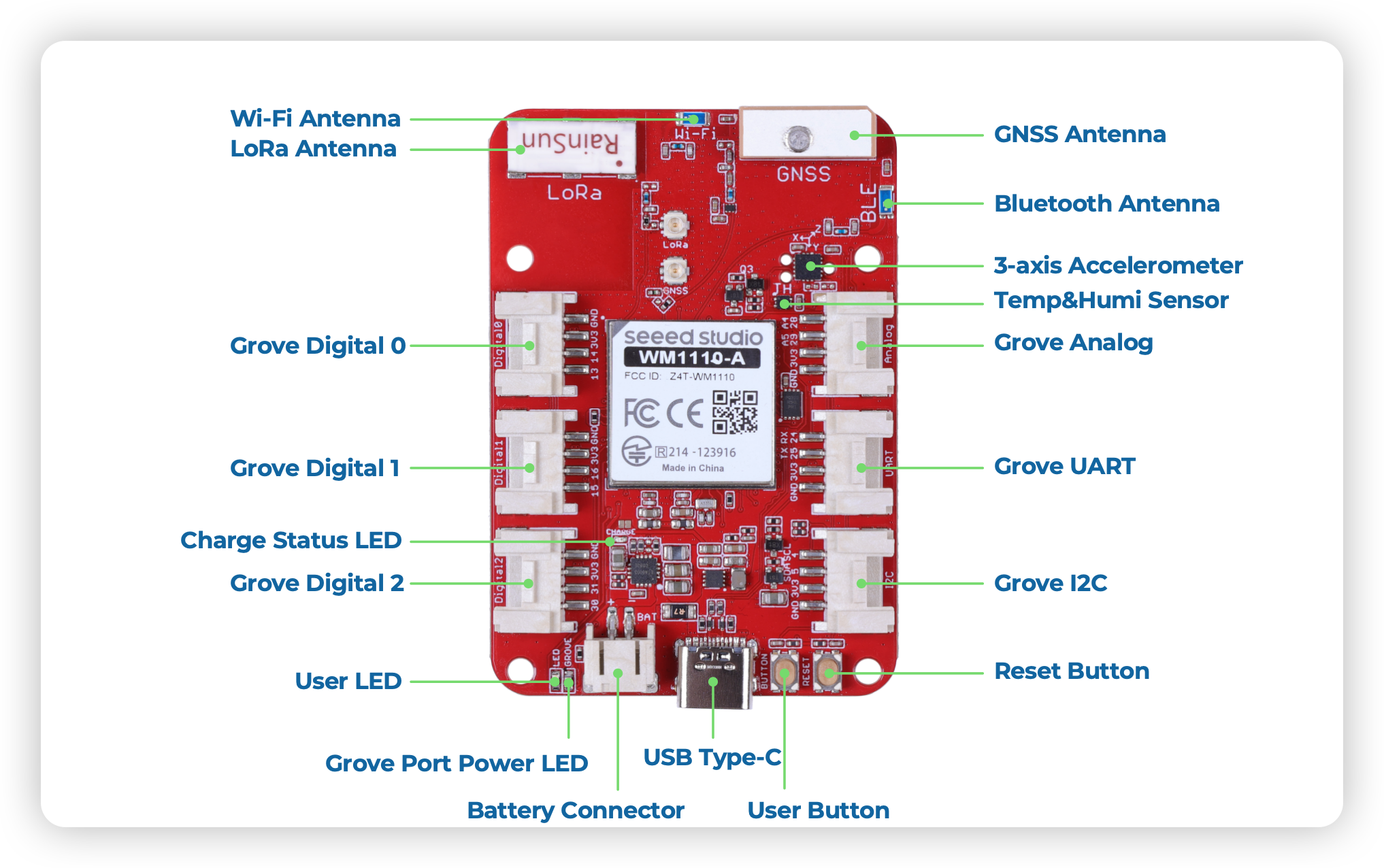

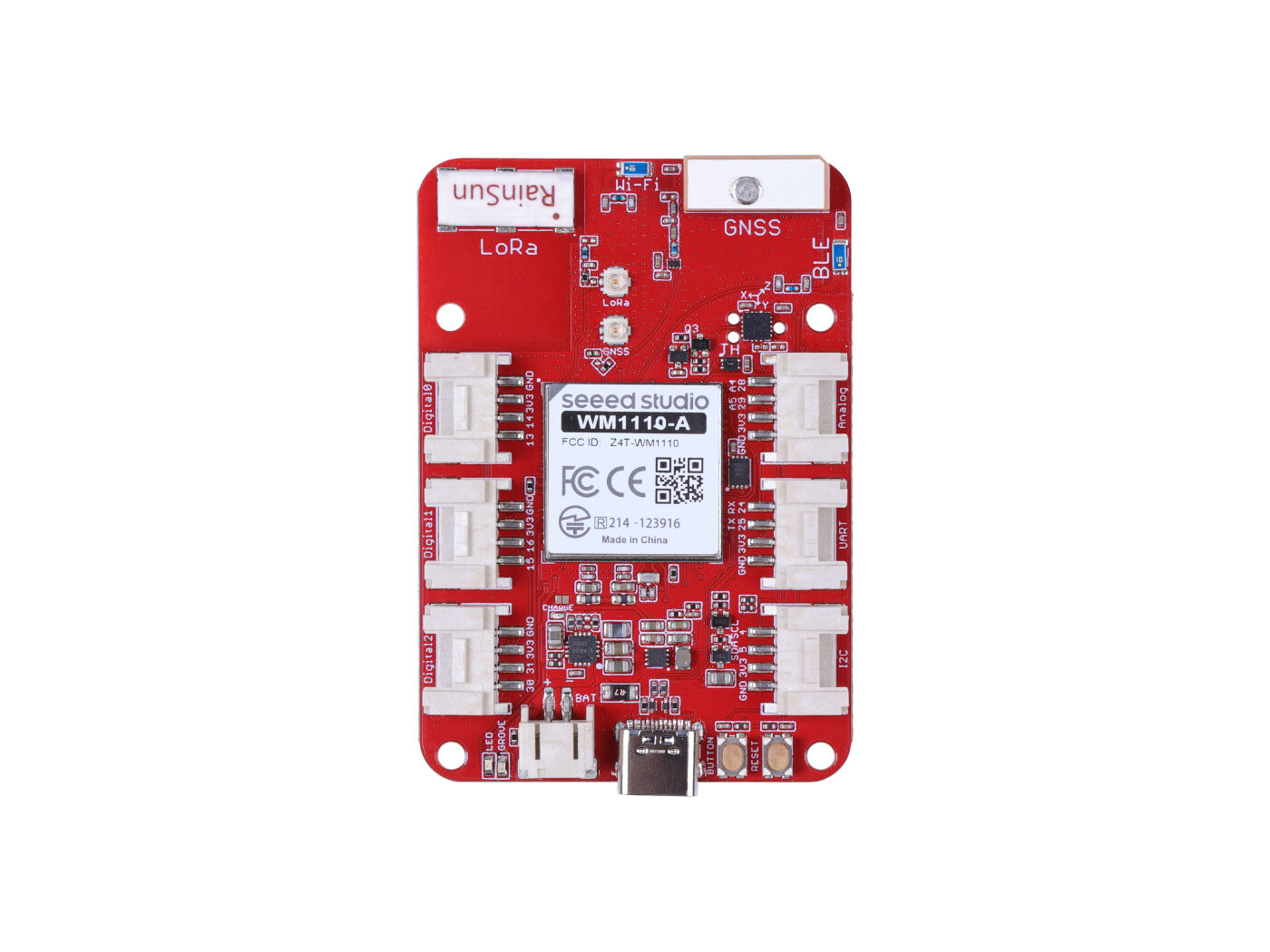

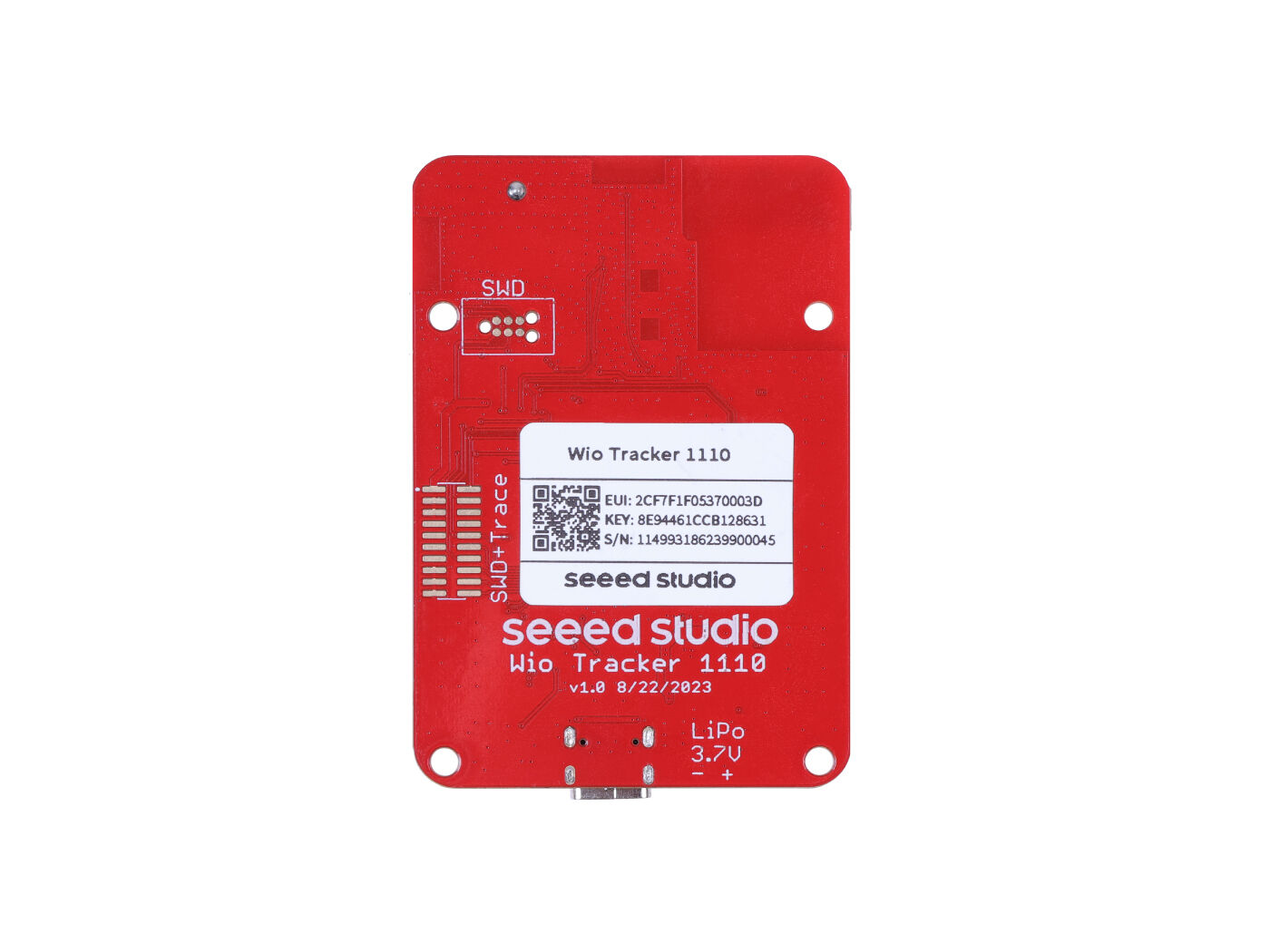

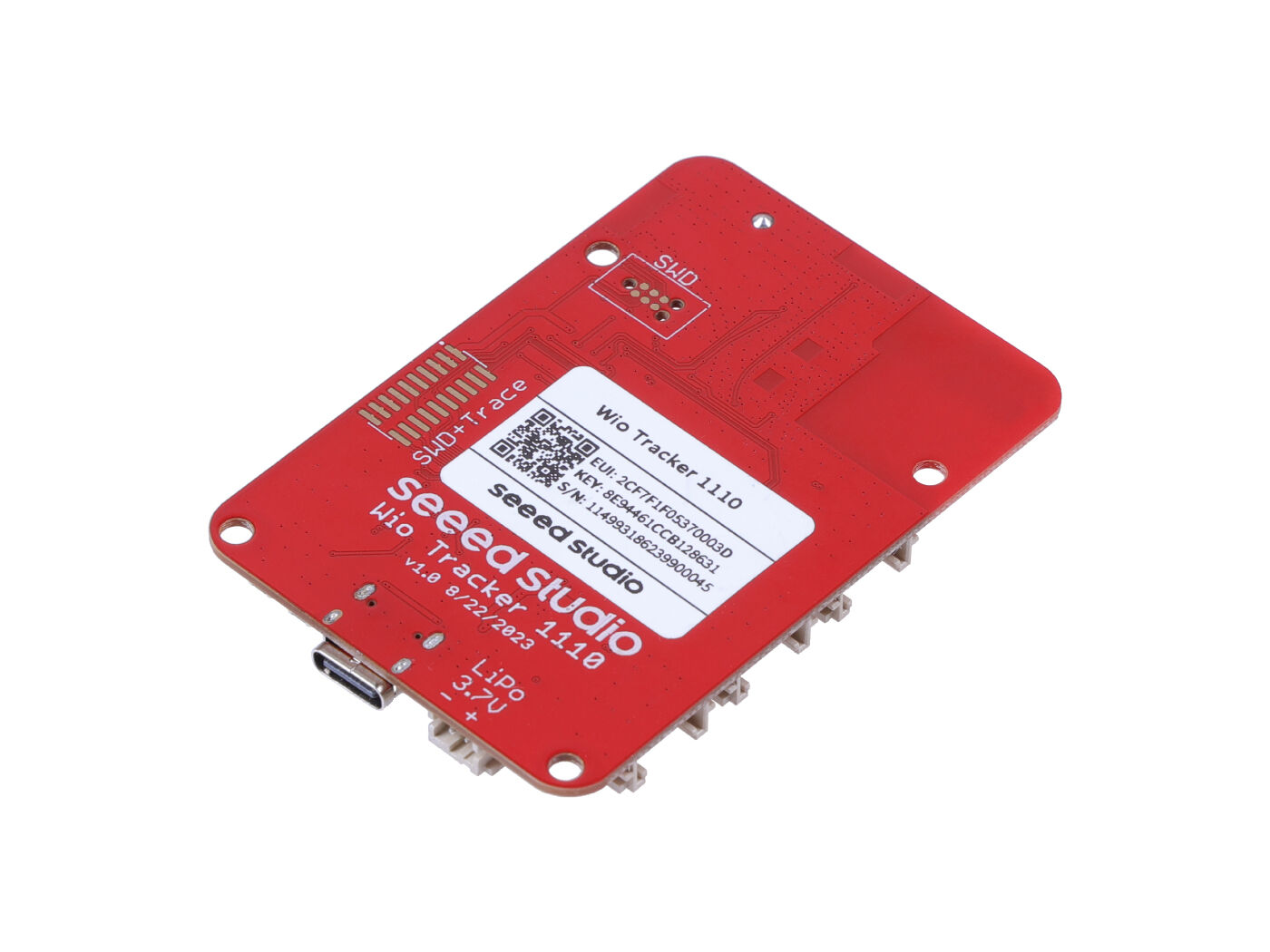

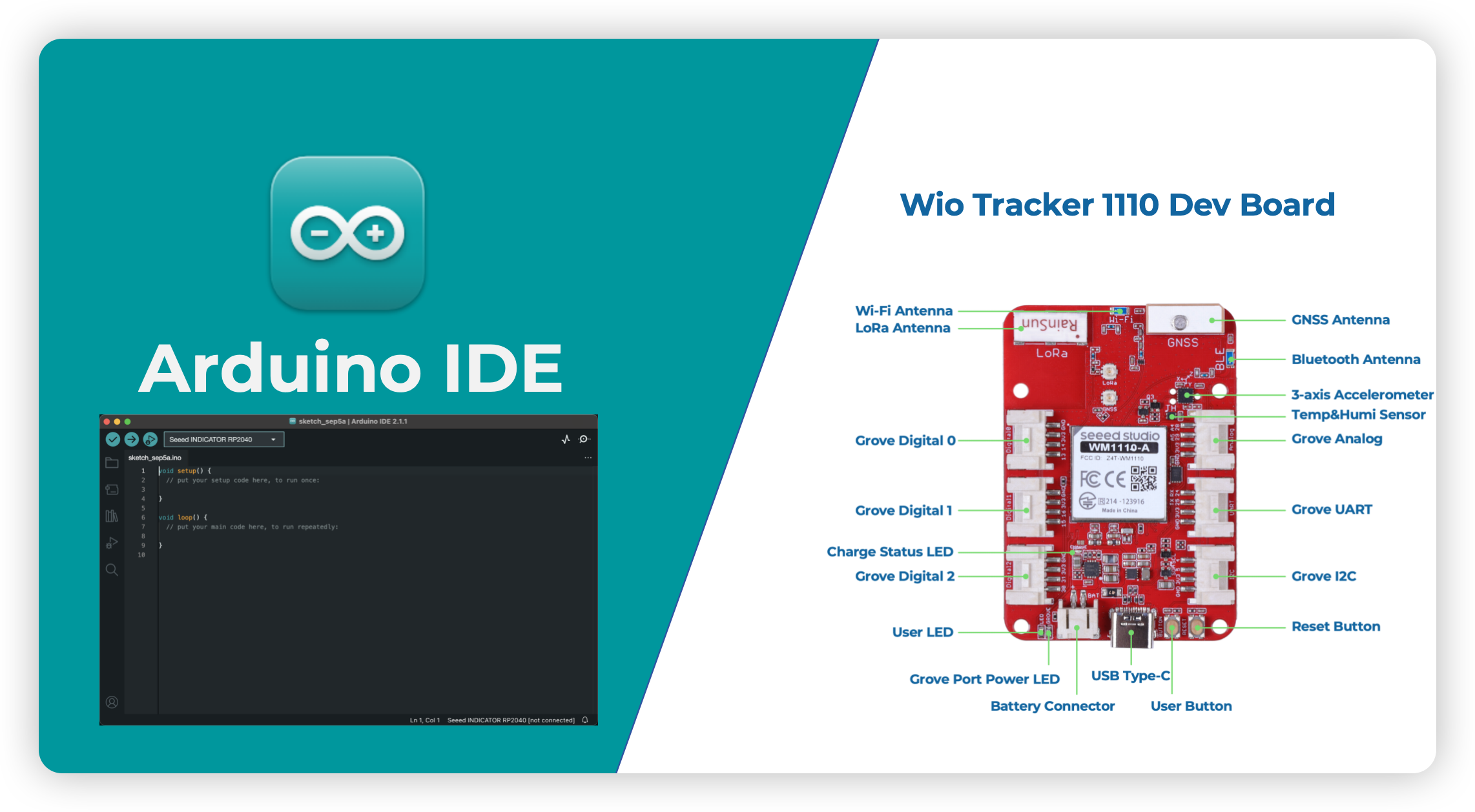

Hardware Overview

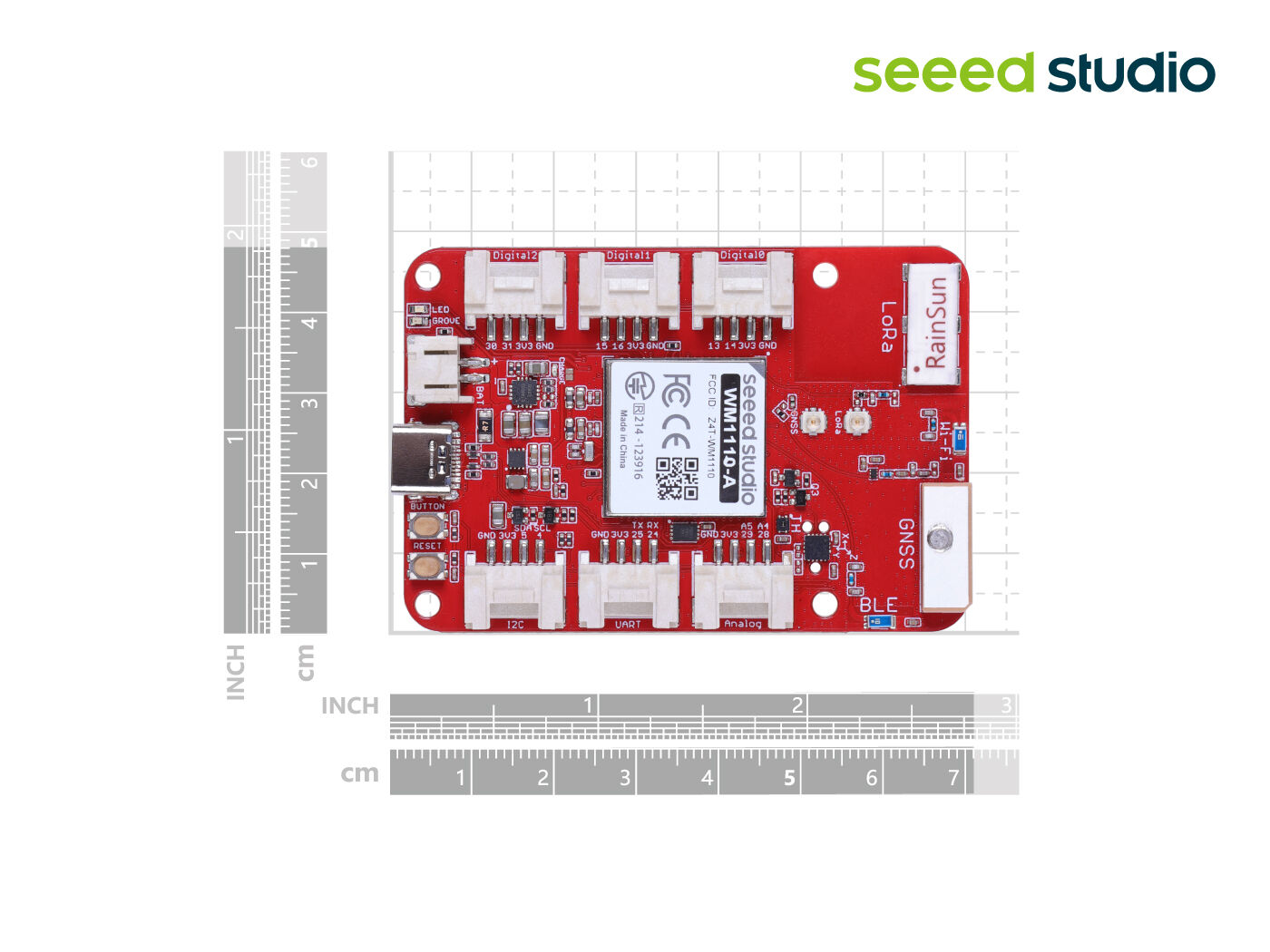

Specification

LoRa® and Positioning (Semtech LR1110)

LoRaWAN® Protocol	V1.0.4
Frequency Plan	863~928MHz
Sensitivity	-125dBm @125K/SF7 -141dBm @125K/SF12
Output Power	20dBm max @LoRa®
Positioning Technology	GNSS(GPS/BeiDou), WiFi Sniffer
Range	2~10km (Depends on antenna and environment)

Bluetooth(Nordic nRF52840)

Bluetooth	Bluetooth 5.3
Flash	1MB
RAM	256KB
Protocol	Bluetooth LE, Bluetooth mesh, Thread, Zigbee, 802.15.4, ANT and 2.4 GHz proprietary stacks
Output Power	6dBm max @Bluetooth

General

Voltage - supply	5V (USB 2.0 Type-C)
	Battery Connector	3.7V
Interface	RFIO	GNSS Antenna Connector* 1 LoRa Antenna Connector* 1
	USB type-C	* 1
	Grove Interface	ADC* 1I2C* 1UART* 1 Digital*3
Button	USER	Configurable button
	RESET	Reset
Exterior FLASH Memory	4M

Onboard Sensors

TH Sensor (SHT41)
	Range	Accuracy
Temperature	-40~85°C	± 0.2°C
Humidity	0~100%RH	±1.8%RH

3-Axis Accelerometer(LIS3DHTR)
Range	±2g, 4g, 8g, 16g
Bandwidth	0.5Hz ~ 625Hz
Sensitivity (LSB/g)	1000 (±2g) ~ 83 (±16g)

Part List

Wio Tracker 1110 Dev Board	x1
Plastic Packing Box	x1
