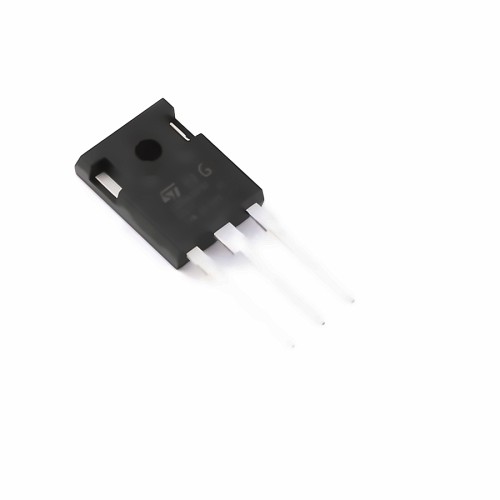

Images are for reference only
Add to Favourites
STMicroelectronics STGWA100H65DFB2
| Manufacturer | |
| Mfr. Part # | STGWA100H65DFB2 |
| EBEE Part # | E83193679 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 441W 145A 650V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>273 In Stock for Fast Shipping
273 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.5101 | $ 5.5101 |
| 10+ | $4.7597 | $ 47.5970 |
| 30+ | $4.3142 | $ 129.4260 |
| 100+ | $3.8633 | $ 386.3300 |
| 500+ | $3.6552 | $ 1827.6000 |
| 1000+ | $3.5620 | $ 3562.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGWA100H65DFB2 | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 145A | |
| Power Dissipation (Pd) | 441W | |
| Turn?off Delay Time (Td(off)) | 130ns | |
| Turn?on Delay Time (Td(on)) | 30ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Input Capacitance (Cies@Vce) | - | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2V@15V,100A | |
| Total Gate Charge (Qg@Ic,Vge) | 288nC | |
| Diode Reverse Recovery Time (Trr) | 123ns | |
| Turn?off Switching Loss (Eoff) | 1.4mJ | |
| Turn?on Switching Loss (Eon) | 2.2mJ |
