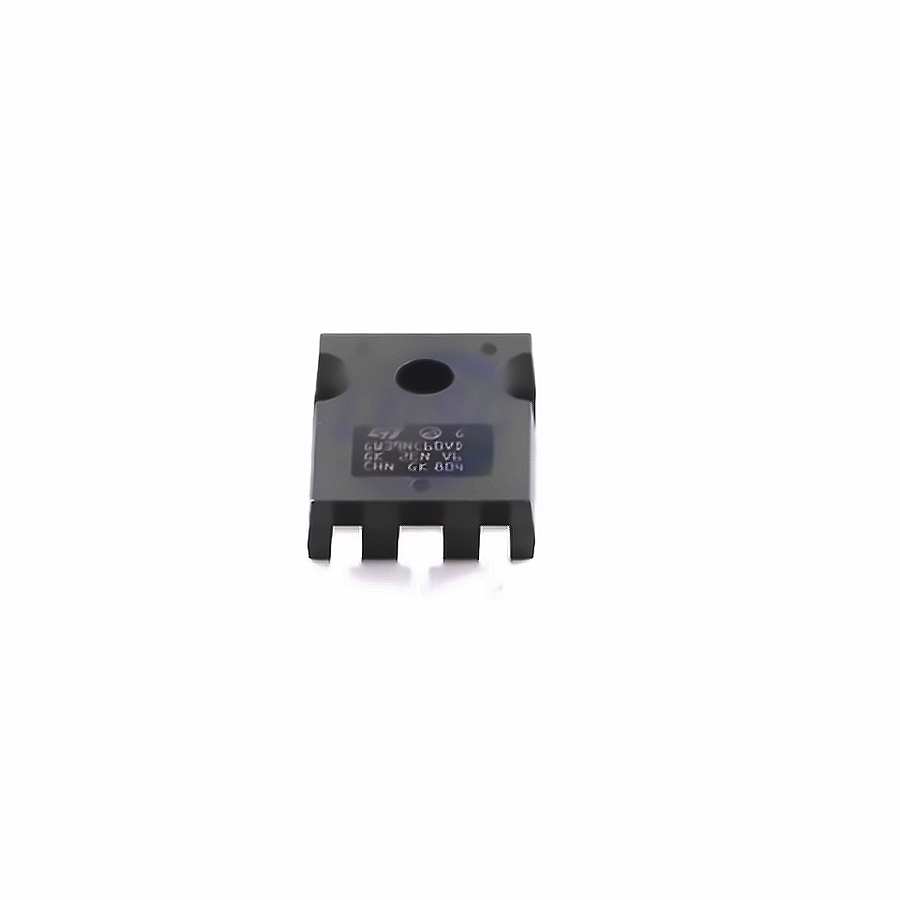

STMicroelectronics STGW39NC60VD
| Manufacturer | |
| Mfr. Part # | STGW39NC60VD |
| EBEE Part # | E8169774 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 250W 80A 600V TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>6109 In Stock for Fast Shipping
6109 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.0667 | $ 2.0667 |
| 10+ | $1.7338 | $ 17.3380 |
| 30+ | $1.5256 | $ 45.7680 |
| 100+ | $1.3110 | $ 131.1000 |
| 500+ | $1.2148 | $ 607.4000 |
| 1000+ | $1.1738 | $ 1173.8000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGW39NC60VD | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.75V@1mA | |
| Pd - Power Dissipation | 250W | |
| IGBT Type | - | |
| Gate Charge(Qg) | 126nC | |
| Td(off) | 178ns | |
| Td(on) | 33ns | |
| Reverse Transfer Capacitance (Cres) | 298pF | |
| Reverse Recovery Time(trr) | 45ns | |
| Switching Energy(Eoff) | 537uJ | |
| Turn-On Energy (Eon) | 333uJ | |
| Input Capacitance(Cies) | - | |
| Pulsed Current- Forward(Ifm) | 120A | |
| Output Capacitance(Coes) | 2900pF |
