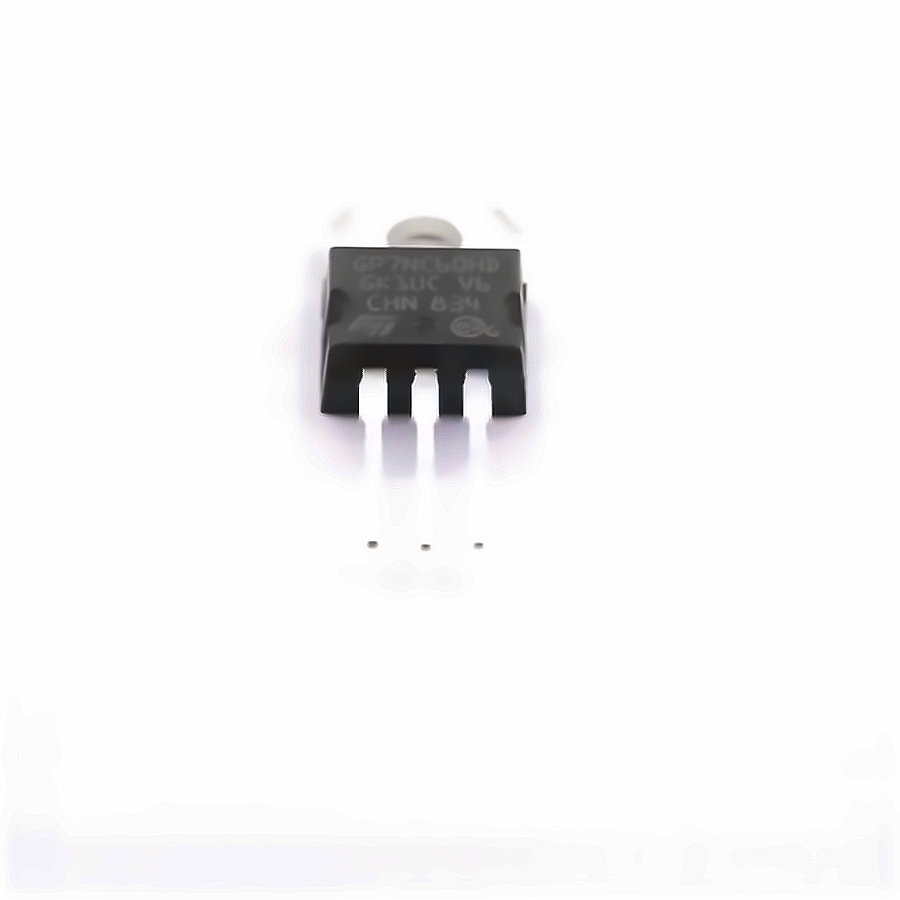

Images are for reference only
Add to Favourites
STMicroelectronics STGP7NC60HD
| Manufacturer | |
| Mfr. Part # | STGP7NC60HD |
| EBEE Part # | E838025 |
| Package | TO-220 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 80W 25A 600V TO-220 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>35 In Stock for Fast Shipping
35 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.4589 | $ 1.4589 |
| 10+ | $1.2011 | $ 12.0110 |
| 30+ | $1.0591 | $ 31.7730 |
| 100+ | $0.8985 | $ 89.8500 |
| 500+ | $0.8275 | $ 413.7500 |
| 1000+ | $0.7951 | $ 795.1000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGP7NC60HD | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | [email protected] | |
| Pd - Power Dissipation | 80W | |
| IGBT Type | - | |
| Gate Charge(Qg) | 35nC | |
| Td(off) | 72ns | |
| Td(on) | 18.5ns | |
| Reverse Transfer Capacitance (Cres) | 17pF | |
| Reverse Recovery Time(trr) | 37ns | |
| Switching Energy(Eoff) | 115uJ | |
| Turn-On Energy (Eon) | 95uJ | |
| Input Capacitance(Cies) | 720pF | |
| Output Capacitance(Coes) | 81pF |
