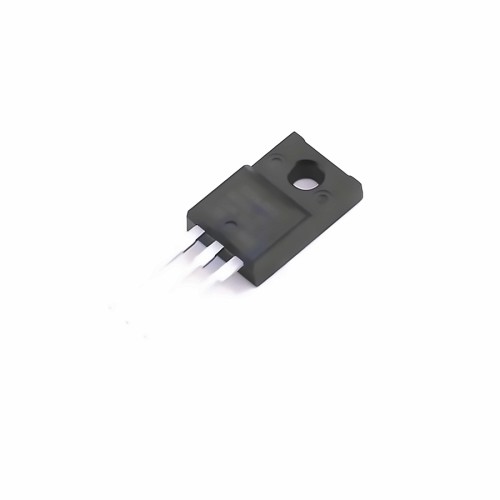

Images are for reference only
Add to Favourites
STMicroelectronics STGF15M65DF2
| Manufacturer | |
| Mfr. Part # | STGF15M65DF2 |
| EBEE Part # | E82935300 |
| Package | TO-220FP |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 31W 30A 650V FS(Field Stop) TO-220FP-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>296 In Stock for Fast Shipping
296 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.0192 | $ 1.0192 |
| 10+ | $0.8283 | $ 8.2830 |
| 50+ | $0.7336 | $ 36.6800 |
| 100+ | $0.6390 | $ 63.9000 |
| 500+ | $0.5822 | $ 291.1000 |
| 1000+ | $0.5522 | $ 552.2000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGF15M65DF2 | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5V@500uA | |
| Pd - Power Dissipation | 31W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 45nC | |
| Td(off) | 93ns | |
| Td(on) | 24ns | |
| Reverse Transfer Capacitance (Cres) | 25pF | |
| Reverse Recovery Time(trr) | 142ns | |
| Switching Energy(Eoff) | 450uJ | |
| Turn-On Energy (Eon) | 90uJ | |
| Input Capacitance(Cies) | 1.25nF | |
| Pulsed Current- Forward(Ifm) | 60A | |
| Output Capacitance(Coes) | 80pF |
