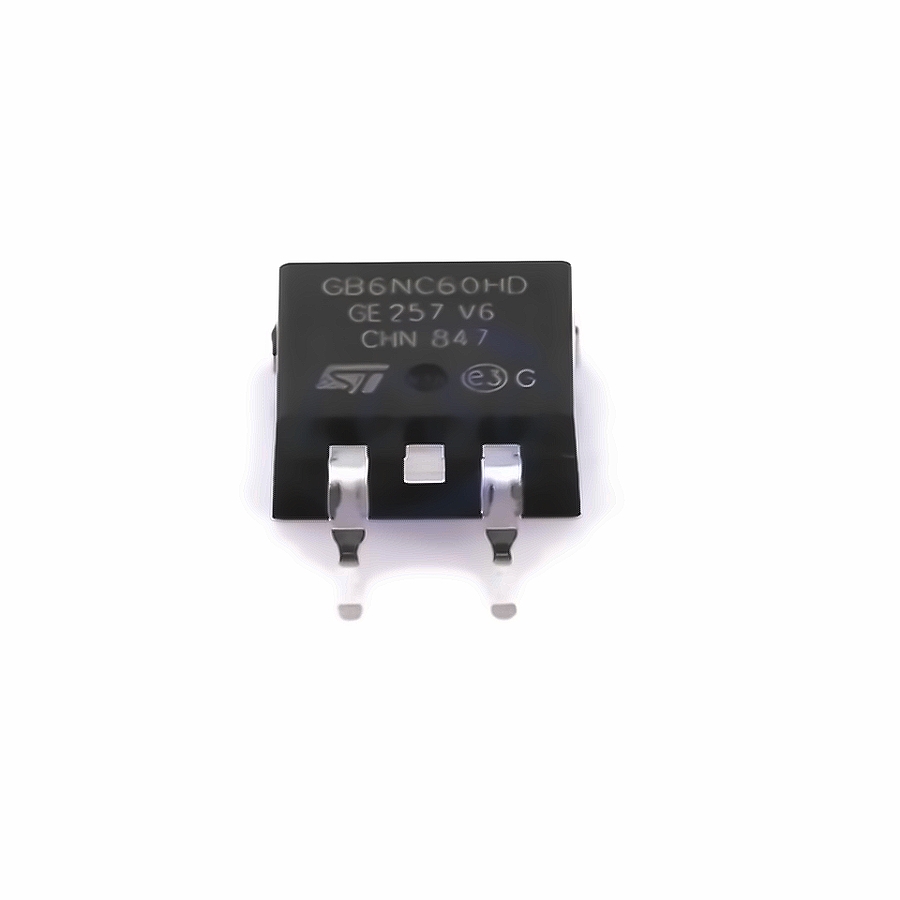

STMicroelectronics STGB6NC60HDT4
| Manufacturer | |
| Mfr. Part # | STGB6NC60HDT4 |
| EBEE Part # | E8377934 |
| Package | D2PAK |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 56W 15A 600V D2PAK IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>993 In Stock for Fast Shipping
993 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.8362 | $ 0.8362 |
| 10+ | $0.7394 | $ 7.3940 |
| 30+ | $0.6794 | $ 20.3820 |
| 100+ | $0.6180 | $ 61.8000 |
| 500+ | $0.5888 | $ 294.4000 |
| 1000+ | $0.5765 | $ 576.5000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGB6NC60HDT4 | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.75V@250uA | |
| Pd - Power Dissipation | 56W | |
| IGBT Type | - | |
| Gate Charge(Qg) | 13.6nC | |
| Td(off) | 76ns | |
| Td(on) | 12ns | |
| Reverse Transfer Capacitance (Cres) | 5.5pF | |
| Reverse Recovery Time(trr) | 21ns | |
| Switching Energy(Eoff) | 68uJ | |
| Turn-On Energy (Eon) | 20uJ | |
| Input Capacitance(Cies) | 205pF | |
| Output Capacitance(Coes) | 32pF |
