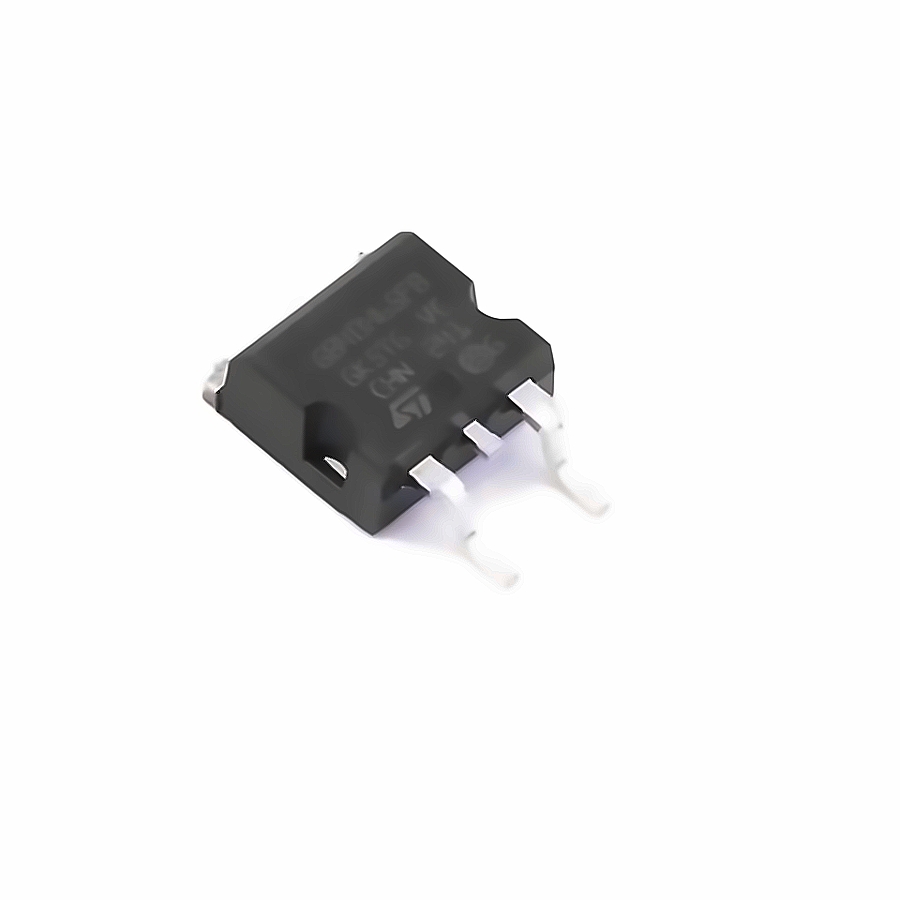

STMicroelectronics STGB40H65FB
| Manufacturer | |
| Mfr. Part # | STGB40H65FB |
| EBEE Part # | E82965367 |
| Package | D2PAK |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 283W 80A 650V FS(Field Stop) D2PAK IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>530 In Stock for Fast Shipping
530 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.3770 | $ 2.3770 |
| 10+ | $2.2328 | $ 22.3280 |
| 30+ | $2.0179 | $ 60.5370 |
| 100+ | $1.9305 | $ 193.0500 |
| 500+ | $1.8906 | $ 945.3000 |
| 1000+ | $1.8722 | $ 1872.2000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGB40H65FB | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5V@1mA | |
| Pd - Power Dissipation | 283W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 210nC@15V | |
| Td(off) | 142ns | |
| Td(on) | 40ns | |
| Reverse Transfer Capacitance (Cres) | 107pF | |
| Switching Energy(Eoff) | 363uJ | |
| Turn-On Energy (Eon) | 498uJ | |
| Input Capacitance(Cies) | - | |
| Output Capacitance(Coes) | 198pF |
