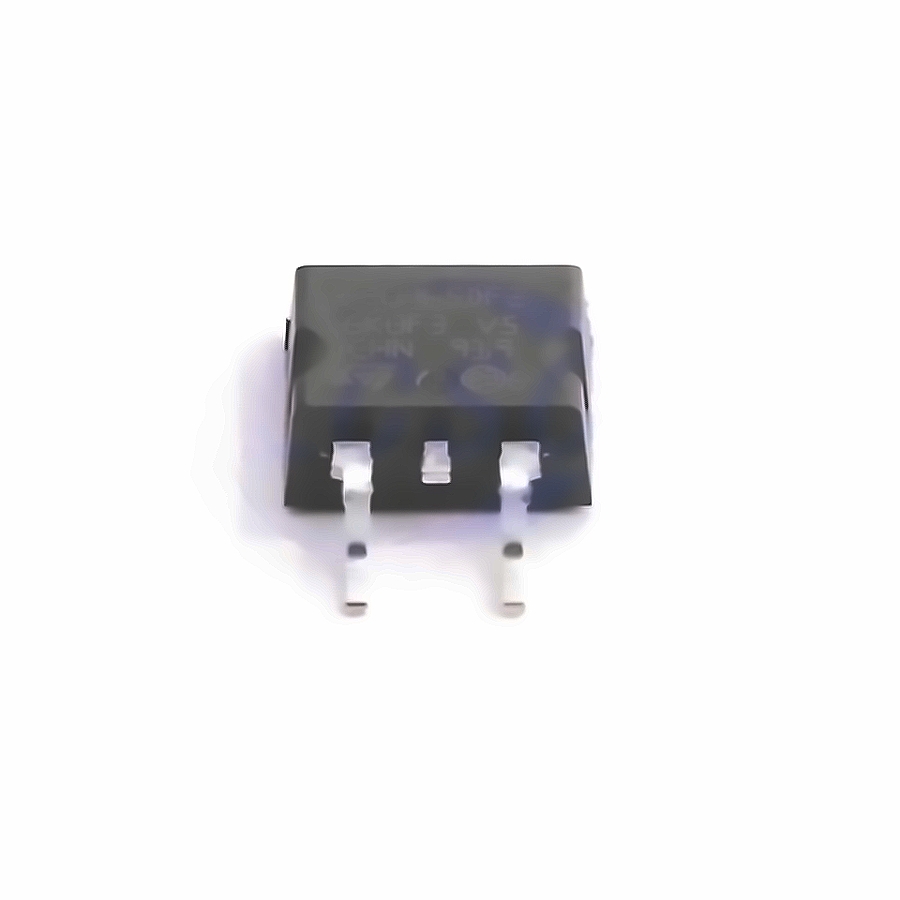

Images are for reference only
Add to Favourites
STMicroelectronics STGB20M65DF2
| Manufacturer | |
| Mfr. Part # | STGB20M65DF2 |
| EBEE Part # | E8472552 |
| Package | D2PAK |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 166W 40A 650V FS(Field Stop) D2PAK IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>504 In Stock for Fast Shipping
504 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.1129 | $ 1.1129 |
| 10+ | $0.9137 | $ 9.1370 |
| 30+ | $0.8046 | $ 24.1380 |
| 100+ | $0.6813 | $ 68.1300 |
| 500+ | $0.6260 | $ 313.0000 |
| 1000+ | $0.6007 | $ 600.7000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGB20M65DF2 | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | [email protected] | |
| Pd - Power Dissipation | 166W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 63nC@15V | |
| Td(off) | 108ns | |
| Td(on) | 26ns | |
| Reverse Recovery Time(trr) | 166ns | |
| Switching Energy(Eoff) | 560uJ | |
| Turn-On Energy (Eon) | 140uJ | |
| Input Capacitance(Cies) | 1.688nF@25V |
