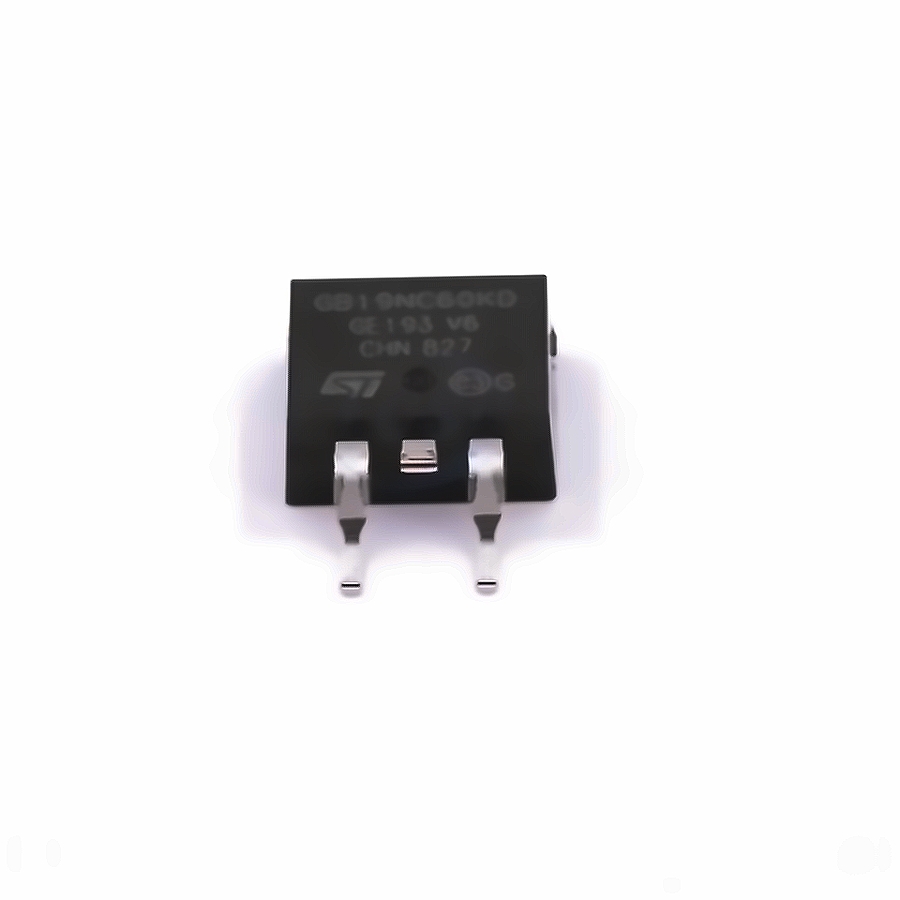

STMicroelectronics STGB19NC60KDT4
| Manufacturer | |
| Mfr. Part # | STGB19NC60KDT4 |
| EBEE Part # | E8314017 |
| Package | D2PAK |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 125W 35A 600V D2PAK IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>1196 In Stock for Fast Shipping
1196 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.6669 | $ 0.6669 |
| 10+ | $0.5367 | $ 5.3670 |
| 30+ | $0.4716 | $ 14.1480 |
| 100+ | $0.4065 | $ 40.6500 |
| 500+ | $0.3684 | $ 184.2000 |
| 1000+ | $0.3478 | $ 347.8000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGB19NC60KDT4 | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.75V@15V,12A | |
| Pd - Power Dissipation | 125W | |
| IGBT Type | - | |
| Gate Charge(Qg) | 55nC | |
| Td(off) | 105ns | |
| Td(on) | 30ns | |
| Reverse Transfer Capacitance (Cres) | 28pF | |
| Reverse Recovery Time(trr) | 31ns | |
| Switching Energy(Eoff) | 255uJ | |
| Turn-On Energy (Eon) | 165uJ | |
| Input Capacitance(Cies) | 1.17nF | |
| Pulsed Current- Forward(Ifm) | 50A | |
| Output Capacitance(Coes) | 127pF |
