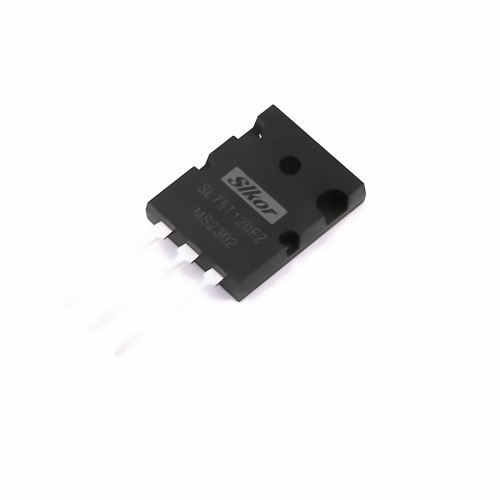

Images are for reference only
Add to Favourites
Slkor(SLKORMICRO Elec.) SL75T120FZ
| Manufacturer | |
| Mfr. Part # | SL75T120FZ |
| EBEE Part # | E85375318 |
| Package | TO-264 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | 625W 115A 1.2kV TO-264 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $6.1623 | $ 6.1623 |
| 10+ | $5.4019 | $ 54.0190 |
| 25+ | $4.9378 | $ 123.4450 |
| 100+ | $4.5495 | $ 454.9500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Slkor(SLKORMICRO Elec.) SL75T120FZ | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector Current (Ic) | 115A | |
| Power Dissipation (Pd) | 625W | |
| Turn?off Delay Time (Td(off)) | 130ns | |
| Turn?on Delay Time (Td(on)) | 205ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Input Capacitance (Cies@Vce) | 7348pF@30V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 4.5V@250uA | |
| Total Gate Charge (Qg@Ic,Vge) | 270nC@75A,15V | |
| Diode Reverse Recovery Time (Trr) | 530ns | |
| Turn?off Switching Loss (Eoff) | 6mJ | |
| Turn?on Switching Loss (Eon) | 19.1mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.85V@75A,15V |
