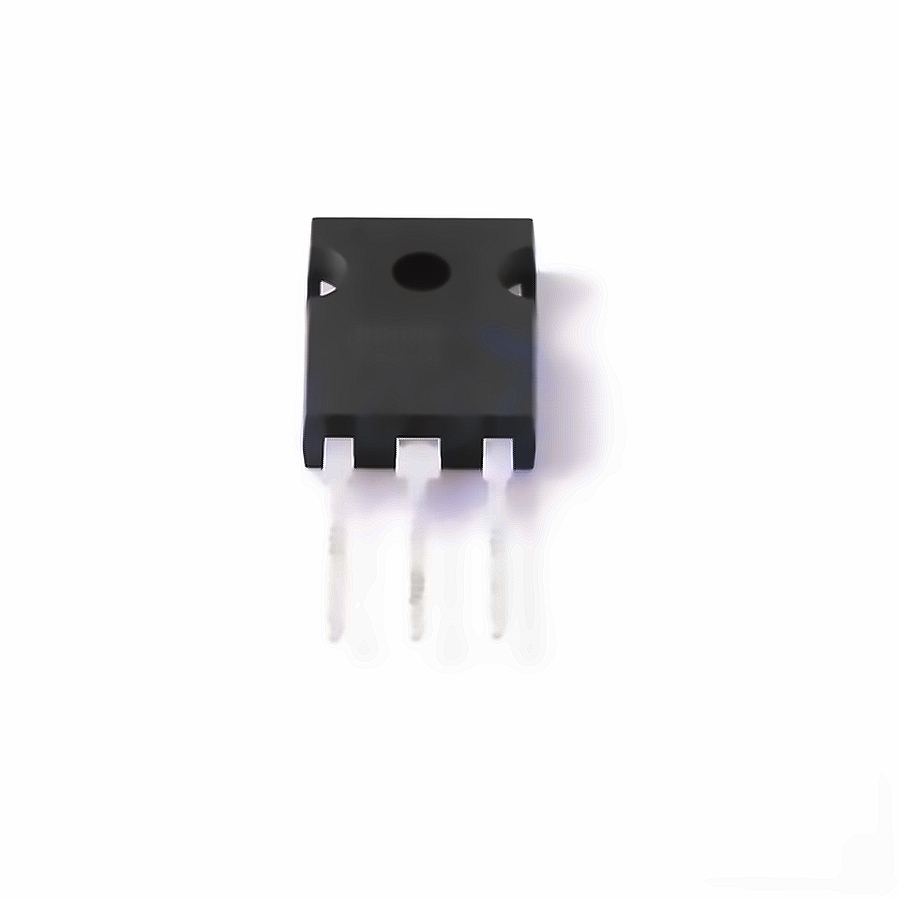

Images are for reference only
Add to Favourites
ROHM Semicon RGS80TSX2DHRC11
| Manufacturer | |
| Mfr. Part # | RGS80TSX2DHRC11 |
| EBEE Part # | E8507505 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 555W 80A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>303 In Stock for Fast Shipping
303 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.6033 | $ 4.6033 |
| 10+ | $4.0578 | $ 40.5780 |
| 30+ | $3.3358 | $ 100.0740 |
| 100+ | $3.0077 | $ 300.7700 |
| 500+ | $2.8561 | $ 1428.0500 |
| 1000+ | $2.7884 | $ 2788.4000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | ROHM Semicon RGS80TSX2DHRC11 | |
| RoHS | ||
| Operating Temperature | -40℃~+175℃@(Tj) | |
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 80A | |
| Power Dissipation (Pd) | 555W | |
| Turn?off Delay Time (Td(off)) | 199ns | |
| Turn?on Delay Time (Td(on)) | 49ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Input Capacitance (Cies@Vce) | - | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.1V@15V,40A | |
| Total Gate Charge (Qg@Ic,Vge) | 104nC | |
| Diode Reverse Recovery Time (Trr) | 198ns | |
| Turn?off Switching Loss (Eoff) | 3.1mJ | |
| Turn?on Switching Loss (Eon) | 3mJ |
