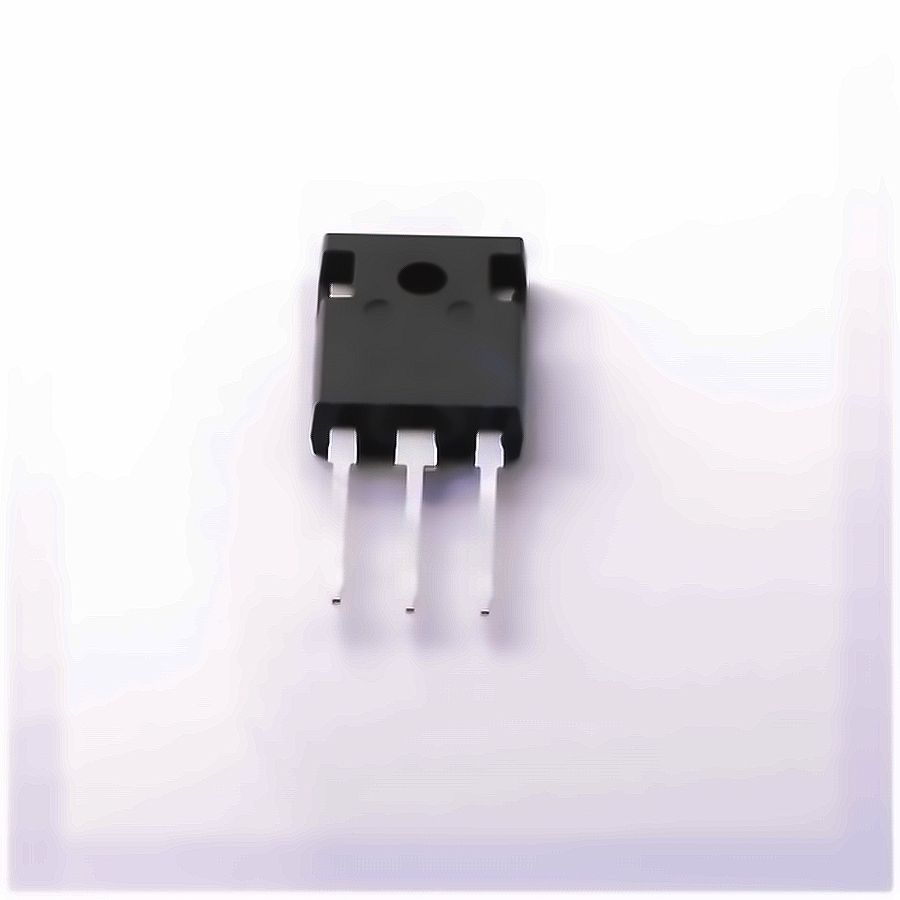

onsemi NGTB25N120FL3WG
| Manufacturer | |
| Mfr. Part # | NGTB25N120FL3WG |
| EBEE Part # | E894822 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 349W 100A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>249 In Stock for Fast Shipping
249 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.0085 | $ 3.0085 |
| 10+ | $2.5620 | $ 25.6200 |
| 30+ | $2.2828 | $ 68.4840 |
| 100+ | $1.9957 | $ 199.5700 |
| 500+ | $1.8663 | $ 933.1500 |
| 1000+ | $1.8111 | $ 1811.1000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | onsemi NGTB25N120FL3WG | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 4.5V@400uA | |
| Pd - Power Dissipation | 349W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 136nC | |
| Td(off) | 109ns | |
| Td(on) | 15ns | |
| Reverse Transfer Capacitance (Cres) | 52pF | |
| Reverse Recovery Time(trr) | 114ns | |
| Switching Energy(Eoff) | 700uJ | |
| Turn-On Energy (Eon) | 1mJ | |
| Input Capacitance(Cies) | 3.085nF | |
| Pulsed Current- Forward(Ifm) | 100A | |
| Output Capacitance(Coes) | 94pF |
