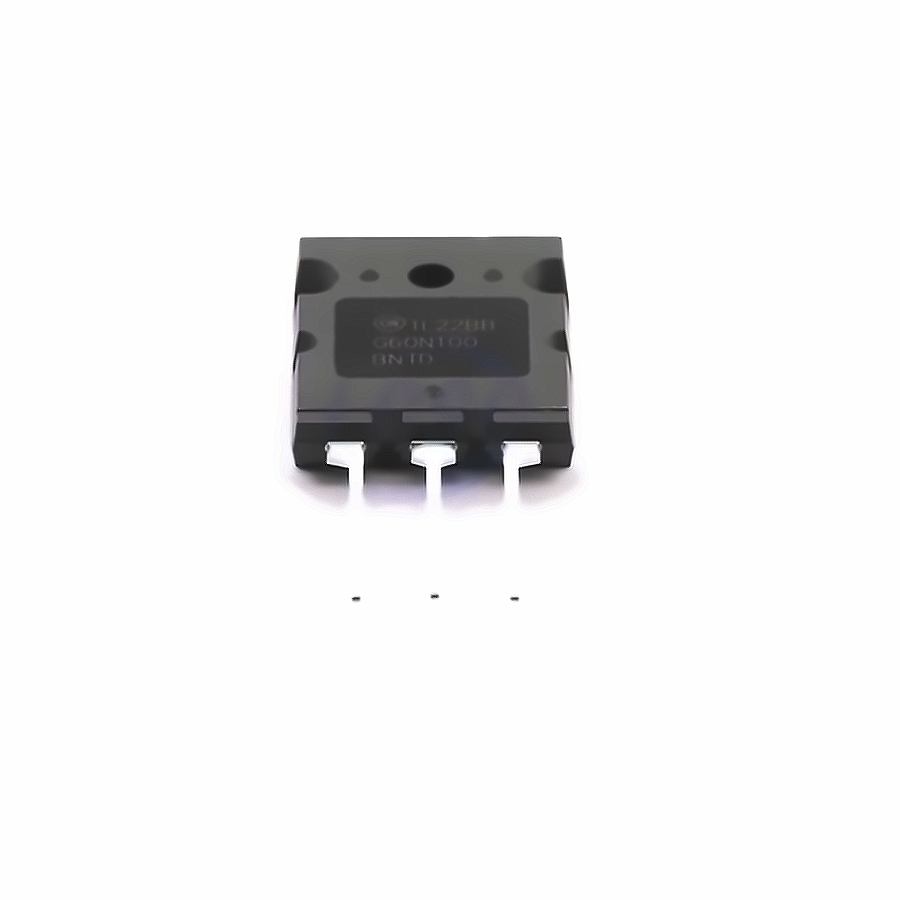

onsemi FGL60N100BNTDTU
| Manufacturer | |
| Mfr. Part # | FGL60N100BNTDTU |
| EBEE Part # | E8105610 |
| Package | TO-264-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 180W 60A 1kV TO-264-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>849 In Stock for Fast Shipping
849 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $14.8162 | $ 14.8162 |
| 10+ | $12.4534 | $ 124.5340 |
| 25+ | $11.5073 | $ 287.6825 |
| 100+ | $10.6817 | $ 1068.1700 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | onsemi FGL60N100BNTDTU | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 1kV | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 4V@60mA | |
| Pd - Power Dissipation | 180W | |
| IGBT Type | NPT (Non-Punch Through) | |
| Gate Charge(Qg) | 275nC@15V | |
| Td(off) | 630ns | |
| Td(on) | 140ns | |
| Reverse Transfer Capacitance (Cres) | 200pF | |
| Reverse Recovery Time(trr) | 1.2us | |
| Turn-On Energy (Eon) | - | |
| Input Capacitance(Cies) | 6nF | |
| Output Capacitance(Coes) | 260pF |
