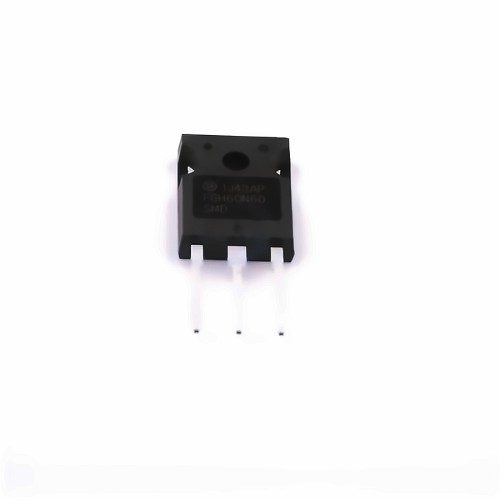

Images are for reference only
Add to Favourites
onsemi FGH60N60SMD
| Manufacturer | |
| Mfr. Part # | FGH60N60SMD |
| EBEE Part # | E850649 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 600W 120A 600V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>2283 In Stock for Fast Shipping
2283 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.2653 | $ 3.2653 |
| 10+ | $2.7671 | $ 27.6710 |
| 30+ | $2.4698 | $ 74.0940 |
| 90+ | $2.1710 | $ 195.3900 |
| 450+ | $2.0328 | $ 914.7600 |
| 900+ | $1.9701 | $ 1773.0900 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | onsemi FGH60N60SMD | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 3.5V@250uA | |
| Pd - Power Dissipation | 600W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 189nC | |
| Td(off) | 104ns | |
| Td(on) | 18ns | |
| Reverse Transfer Capacitance (Cres) | 85pF | |
| Reverse Recovery Time(trr) | 39ns | |
| Switching Energy(Eoff) | 450uJ | |
| Turn-On Energy (Eon) | 1.26mJ | |
| Input Capacitance(Cies) | 2.915nF | |
| Pulsed Current- Forward(Ifm) | 180A | |
| Output Capacitance(Coes) | 270pF |
