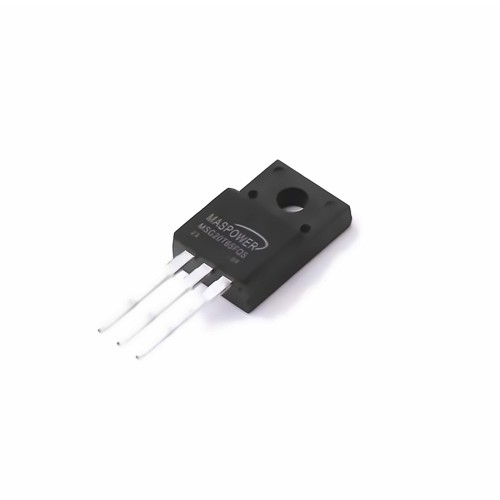

MASPOWER MSG20T65FQS
| Manufacturer | |
| Mfr. Part # | MSG20T65FQS |
| EBEE Part # | E85353629 |
| Package | TO-220F |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 20A 650V TO-220F IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>152 In Stock for Fast Shipping
152 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.9341 | $ 0.9341 |
| 10+ | $0.7597 | $ 7.5970 |
| 50+ | $0.6648 | $ 33.2400 |
| 100+ | $0.5573 | $ 55.7300 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | MASPOWER MSG20T65FQS | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 4.5V@250uA | |
| Pd - Power Dissipation | 35W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 43.9nC@15V | |
| Td(off) | 52ns | |
| Td(on) | 16ns | |
| Reverse Transfer Capacitance (Cres) | 28.7pF | |
| Reverse Recovery Time(trr) | 254ns | |
| Switching Energy(Eoff) | 300uJ | |
| Turn-On Energy (Eon) | 790uJ | |
| Input Capacitance(Cies) | 1.5nF | |
| Pulsed Current- Forward(Ifm) | 80A | |
| Output Capacitance(Coes) | 128pF |
