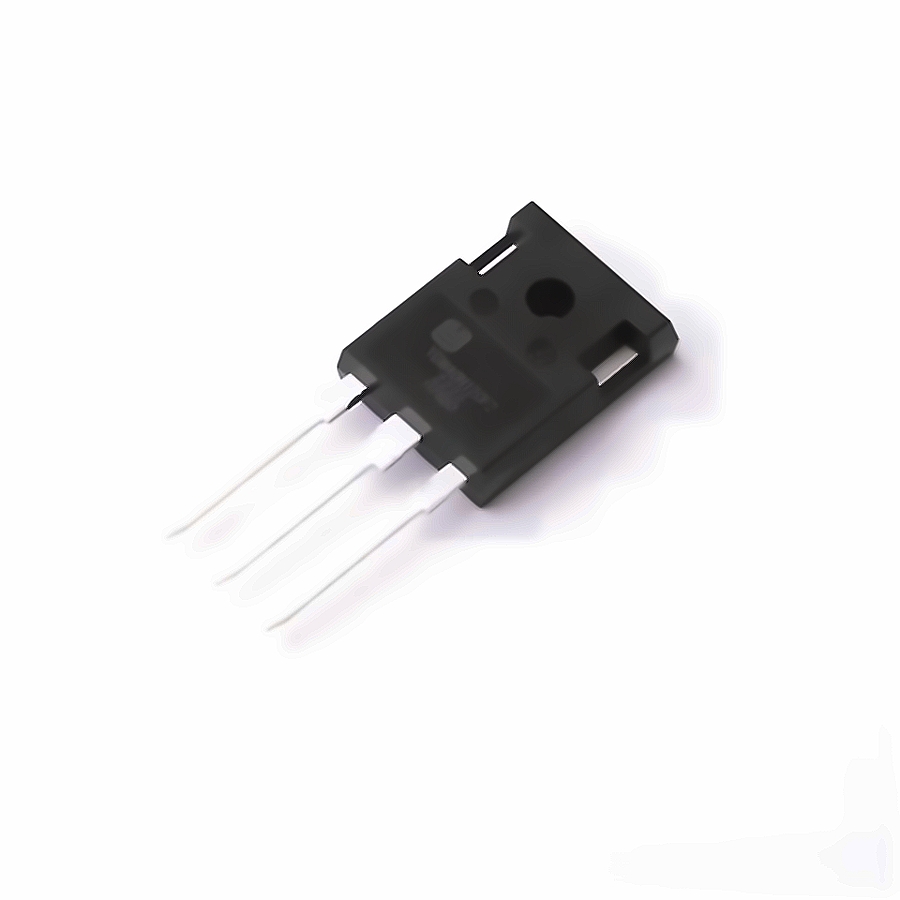

luxin-semi YGW40N120F2
| Manufacturer | |
| Mfr. Part # | YGW40N120F2 |
| EBEE Part # | E84153679 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 40A 1.2kV TO-247 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>34 In Stock for Fast Shipping
34 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.1346 | $ 4.1346 |
| 10+ | $3.5536 | $ 35.5360 |
| 30+ | $3.0782 | $ 92.3460 |
| 90+ | $2.7284 | $ 245.5560 |
| 510+ | $2.5680 | $ 1309.6800 |
| 1200+ | $2.4943 | $ 2993.1600 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | luxin-semi YGW40N120F2 | |
| RoHS | ||
| Operating Temperature | -40℃~+150℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5.2V@250uA | |
| Pd - Power Dissipation | 417W | |
| Gate Charge(Qg) | 250nC@15V | |
| Td(off) | 200ns | |
| Td(on) | 85ns | |
| Reverse Transfer Capacitance (Cres) | 90pF | |
| Reverse Recovery Time(trr) | 190ns | |
| Switching Energy(Eoff) | 1.2mJ | |
| Turn-On Energy (Eon) | 4.3mJ | |
| Input Capacitance(Cies) | 6.4nF | |
| Pulsed Current- Forward(Ifm) | 160A | |
| Output Capacitance(Coes) | 180pF |
