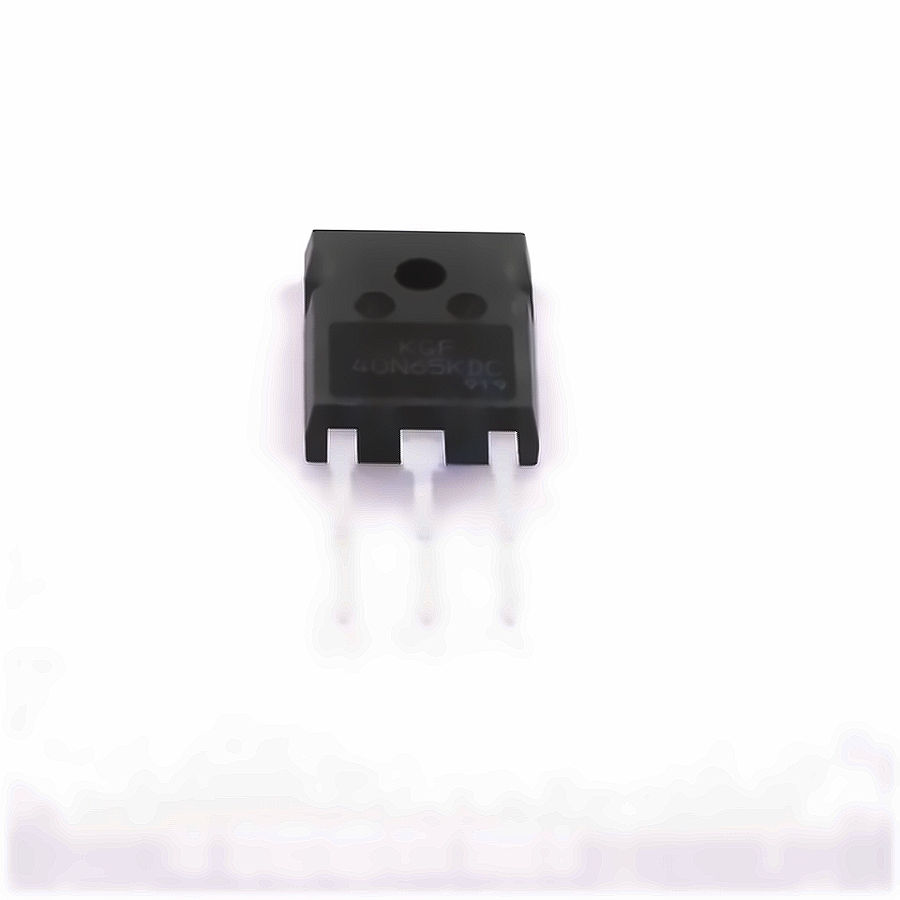

KEC Semicon KGF40N65KDC
| Manufacturer | |
| Mfr. Part # | KGF40N65KDC |
| EBEE Part # | E8400992 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 208W 80A 650V FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.3606 | $ 2.3606 |
| 10+ | $2.0662 | $ 20.6620 |
| 30+ | $1.7013 | $ 51.0390 |
| 100+ | $1.5117 | $ 151.1700 |
| 500+ | $1.4268 | $ 713.4000 |
| 1000+ | $1.3889 | $ 1388.9000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | KEC Semicon KGF40N65KDC | |
| RoHS | ||
| Operating Temperature | - | |
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 80A | |
| Power Dissipation (Pd) | 208W | |
| Turn?off Delay Time (Td(off)) | 110ns | |
| Turn?on Delay Time (Td(on)) | 60ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Input Capacitance (Cies@Vce) | 2.3nF@30V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 6.2V@4mA | |
| Total Gate Charge (Qg@Ic,Vge) | 90nC@40A,15V | |
| Diode Reverse Recovery Time (Trr) | 97ns | |
| Turn?off Switching Loss (Eoff) | 0.55mJ | |
| Turn?on Switching Loss (Eon) | 0.95mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.75V@40A,15V | |
| Diode Forward Voltage (Vf@If) | 1.91V@20A |
