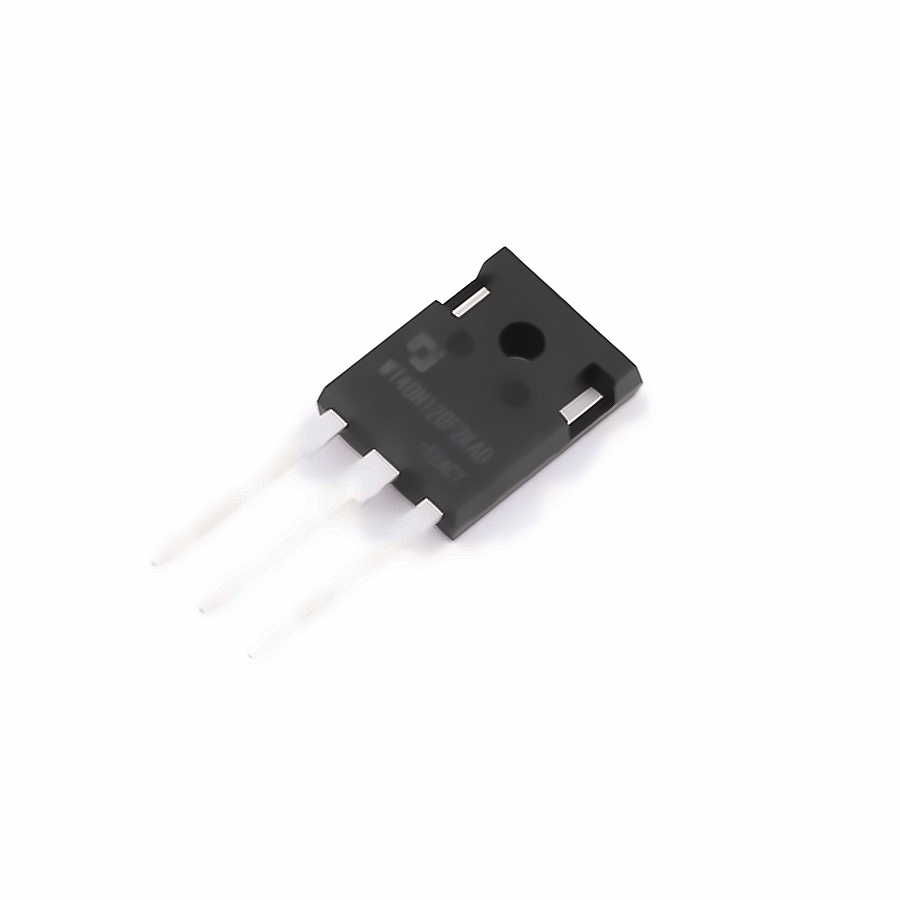

Images are for reference only
Add to Favourites
Jiangsu Changjing Electronics Technology Co., Ltd. CGWT40N120F2KAD
| Manufacturer | |
| Mfr. Part # | CGWT40N120F2KAD |
| EBEE Part # | E87543665 |
| Package | TO-247 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | TO-247-3L IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>17 In Stock for Fast Shipping
17 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.5939 | $ 3.5939 |
| 10+ | $3.0735 | $ 30.7350 |
| 30+ | $2.7630 | $ 82.8900 |
| 90+ | $2.4495 | $ 220.4550 |
| 600+ | $2.3043 | $ 1382.5800 |
| 900+ | $2.2395 | $ 2015.5500 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Jiangsu Changjing Electronics Technology Co., Ltd. CGWT40N120F2KAD | |
| RoHS | ||
| Operating Temperature | -40℃~+175℃ | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 4.5V@250uA | |
| Pd - Power Dissipation | 357W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 170.6nC@15V | |
| Td(off) | 171ns | |
| Td(on) | 41ns | |
| Reverse Transfer Capacitance (Cres) | 27.5pF | |
| Switching Energy(Eoff) | 1.4mJ | |
| Turn-On Energy (Eon) | 3mJ | |
| Input Capacitance(Cies) | 4.225nF | |
| Pulsed Current- Forward(Ifm) | 160A | |
| Output Capacitance(Coes) | 125pF |
