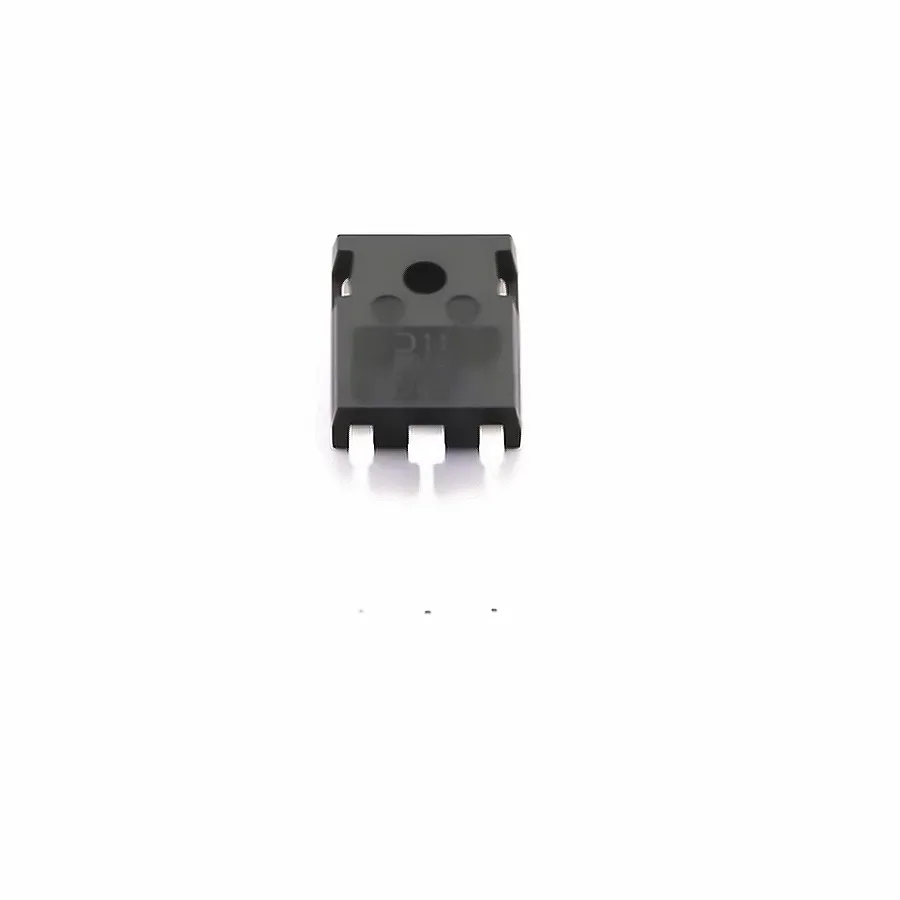

Diodes Incorporated DGTD120T25S1PT
| Manufacturer | |
| Mfr. Part # | DGTD120T25S1PT |
| EBEE Part # | E8705308 |
| Package | TO-247-3 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 348W 50A 1.2kV FS(Field Stop) TO-247-3 IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $5.8647 | $ 5.8647 |
| 10+ | $5.7351 | $ 57.3510 |
| 30+ | $5.3800 | $ 161.4000 |
| 100+ | $5.2948 | $ 529.4800 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Diodes Incorporated DGTD120T25S1PT | |
| RoHS | ||
| Operating Temperature | - | |
| Type | FS(Field Stop) | |
| Collector Current (Ic) | 50A | |
| Power Dissipation (Pd) | 348W | |
| Turn?off Delay Time (Td(off)) | 269ns | |
| Turn?on Delay Time (Td(on)) | 73ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 1.2kV | |
| Input Capacitance (Cies@Vce) | - | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 2.4V@15V,25A | |
| Total Gate Charge (Qg@Ic,Vge) | 204nC | |
| Diode Reverse Recovery Time (Trr) | 100ns | |
| Turn?off Switching Loss (Eoff) | 0.55mJ | |
| Turn?on Switching Loss (Eon) | 1.44mJ |
