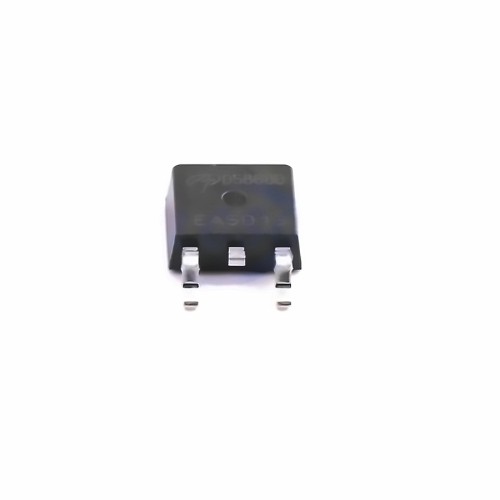

Images are for reference only
Add to Favourites
Alpha & Omega Semicon AOD5B60D
| Manufacturer | |
| Mfr. Part # | AOD5B60D |
| EBEE Part # | E8176751 |
| Package | TO-252-2(DPAK) |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 54.4W 23A 600V TO-252-2(DPAK) IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.8034 | $ 1.8034 |
| 10+ | $1.5692 | $ 15.6920 |
| 30+ | $1.4219 | $ 42.6570 |
| 100+ | $1.2710 | $ 127.1000 |
| 500+ | $1.1875 | $ 593.7500 |
| 1000+ | $1.1574 | $ 1157.4000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | Alpha & Omega Semicon AOD5B60D | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃@(Tj) | |
| Type | - | |
| Collector Current (Ic) | 23A | |
| Power Dissipation (Pd) | 54.4W | |
| Turn?off Delay Time (Td(off)) | 82ns | |
| Turn?on Delay Time (Td(on)) | 12ns | |
| Collector-Emitter Breakdown Voltage (Vces) | 600V | |
| Input Capacitance (Cies@Vce) | 367pF@25V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 6V@1mA | |
| Total Gate Charge (Qg@Ic,Vge) | 9.4nC@5A,15V | |
| Diode Reverse Recovery Time (Trr) | 98ns | |
| Turn?off Switching Loss (Eoff) | 0.04mJ | |
| Turn?on Switching Loss (Eon) | 0.14mJ | |
| Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Vge) | 1.55V@15A,15V | |
| Diode Forward Voltage (Vf@If) | 1.46V@5A |
