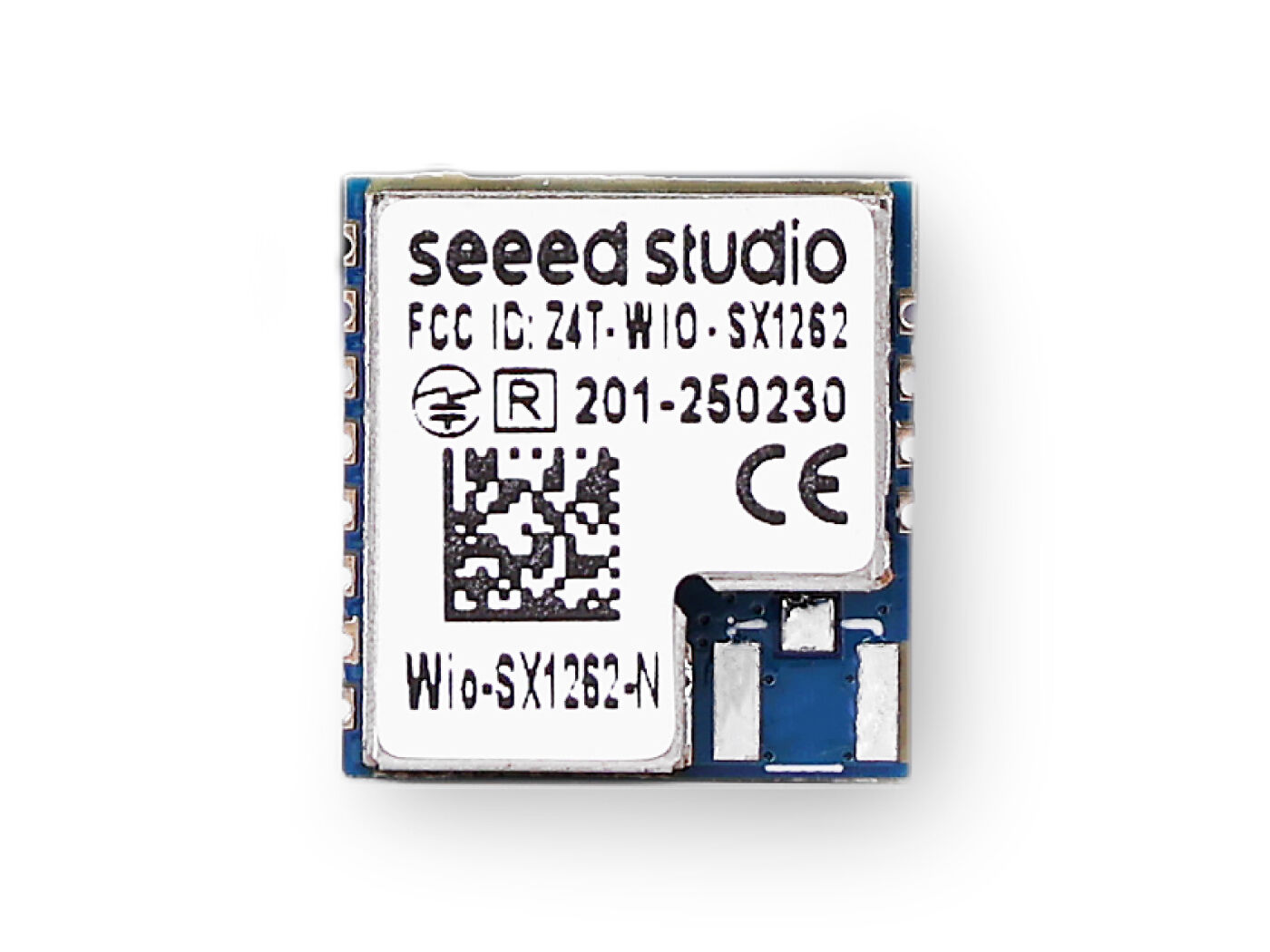

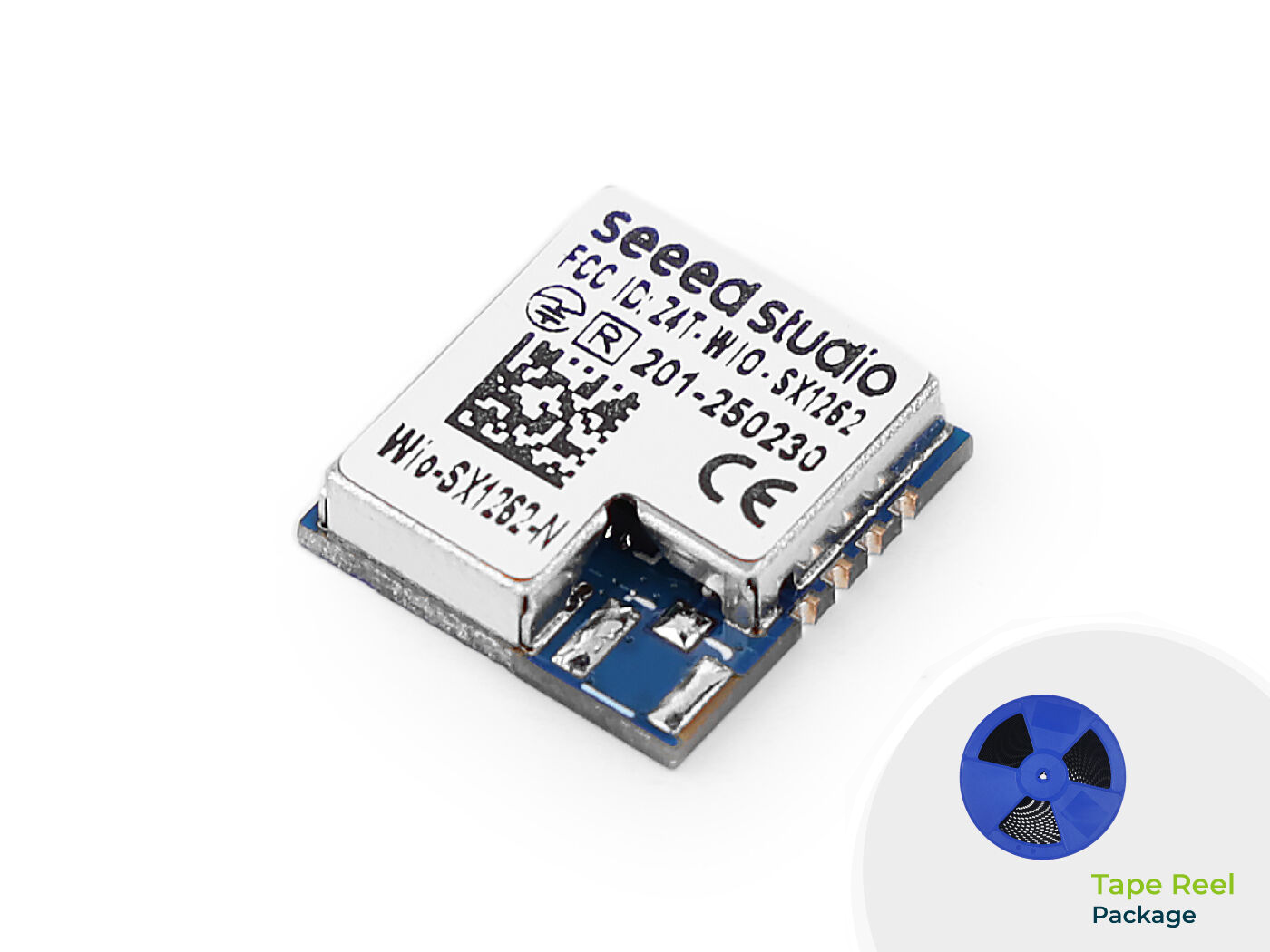

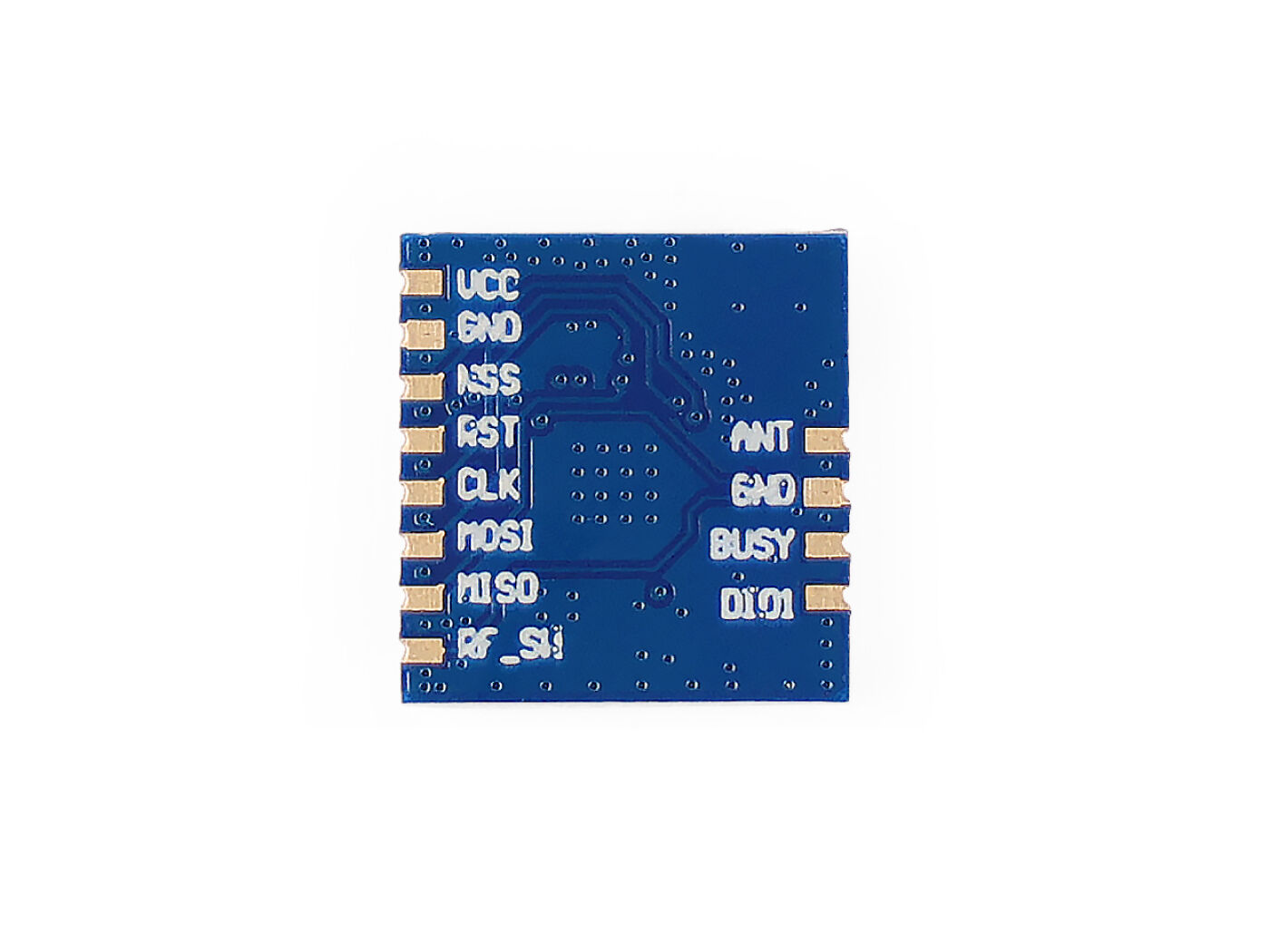

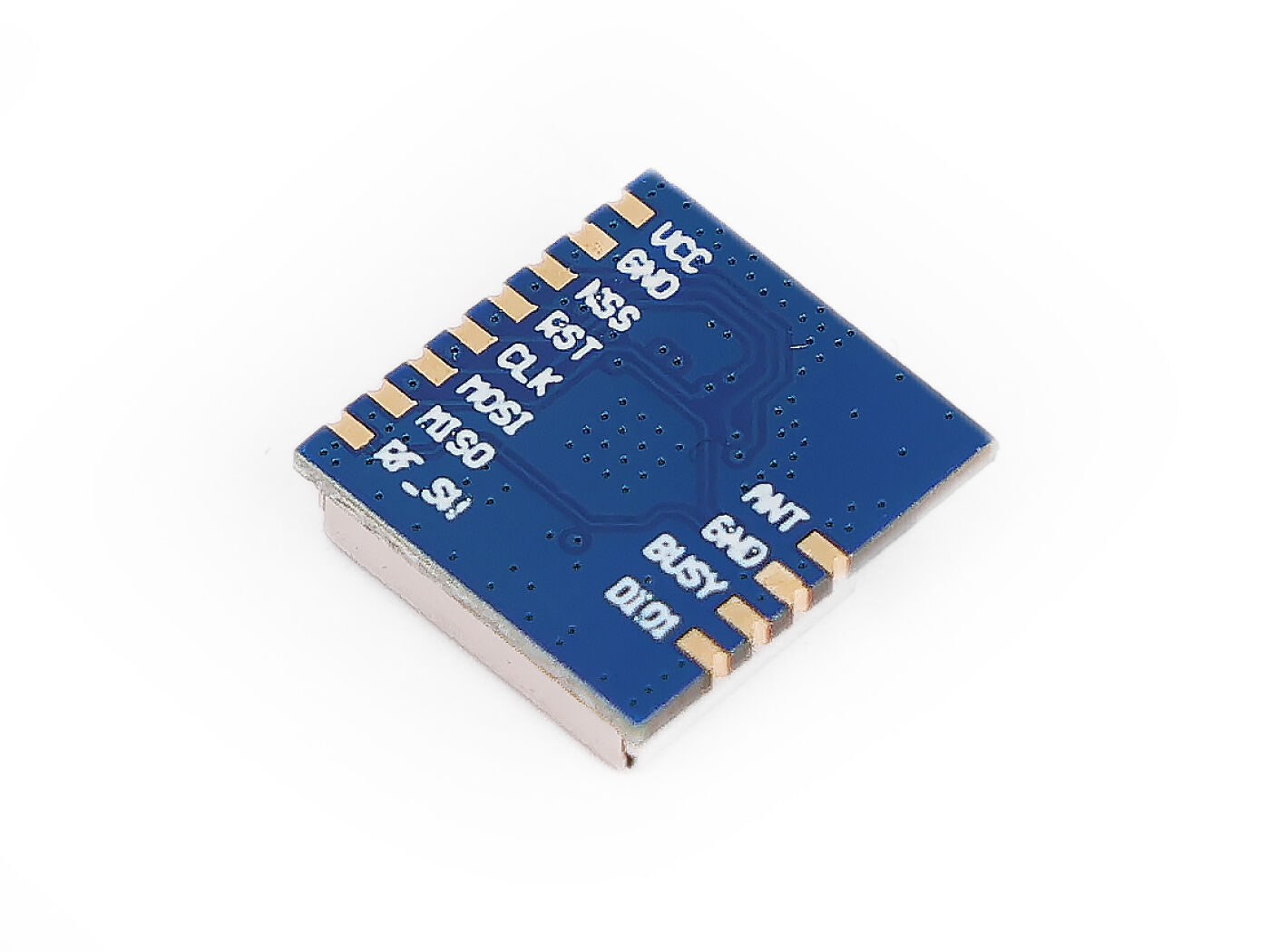

Wio-SX1262 Wireless Module without IPEX (Tape Reel), SX1262 embedded, supports LoRa&LoRaWAN on EU868 & US915
| Manufacturer | |
| Mfr. Part # | 113991436 |
| EBEE Part # | 113991436-EB |
| Customer # | |
| EDA Models | |
| Description | The Wio-SX1262 is a LoRa wireless module based on the Semtech SX1262 chip, supporting LoRa & LoRaWAN frequencies from 868 to 915 MHz. Its SMT-packaged RF pins provides direct pin-out interfaces for PCB antenna integration. Combined with high-quality components like the TCXO, it ensures stable operation even under harsh conditions. Suitable for industrial, agricultural, smart home, and other long-range, low-power applications. |
This materials supports customized cables!
Learn more >>Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | IoT/Communication Modules ,LoRa Modules |
Description
Feature
Note: The Wio-1262-N module does not include an IPEX antenna connector. If your application requires an IPEX interface for external antenna compatibility, please refer to the Wio-SX1262 Wireless Module SKU: 114993390.
- High Performance: The transmit power up to 22dBm @868/930MHz; -136.73dBm sensitivity for SF12 with 125KHz BW.
- Wireless Connectivity: SPI interface, supports 862~930MHz global LoRa&LoRaWAN frequency plan.

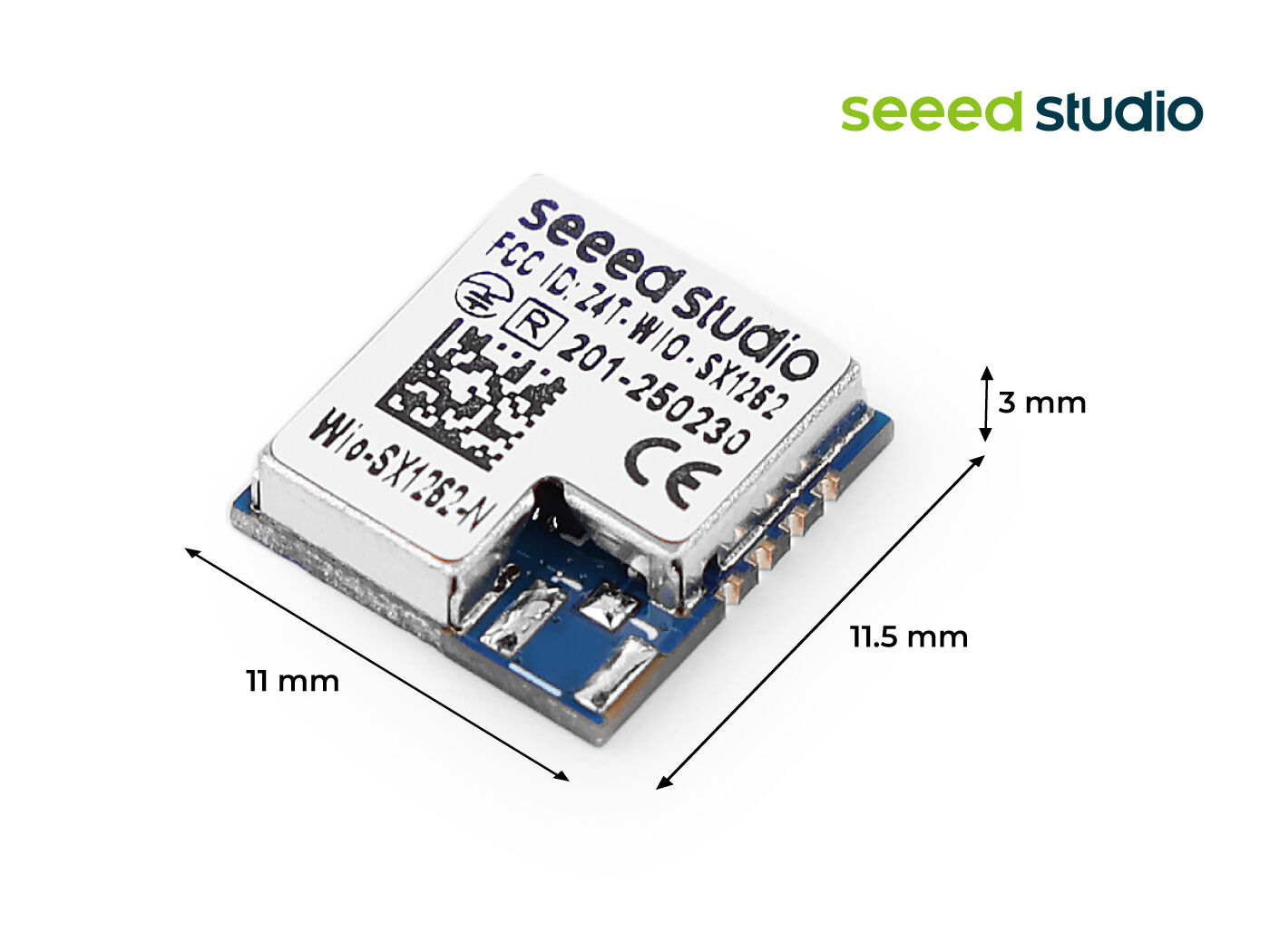

- Small Size: 6mm X 11mm * 2.95mm @12 pins SMT.
- Low Power Consumption: 62uA sleep current .
- RF Interface: SMT Pin.
- FCC ID, CE, RoHS, TELEC Certified

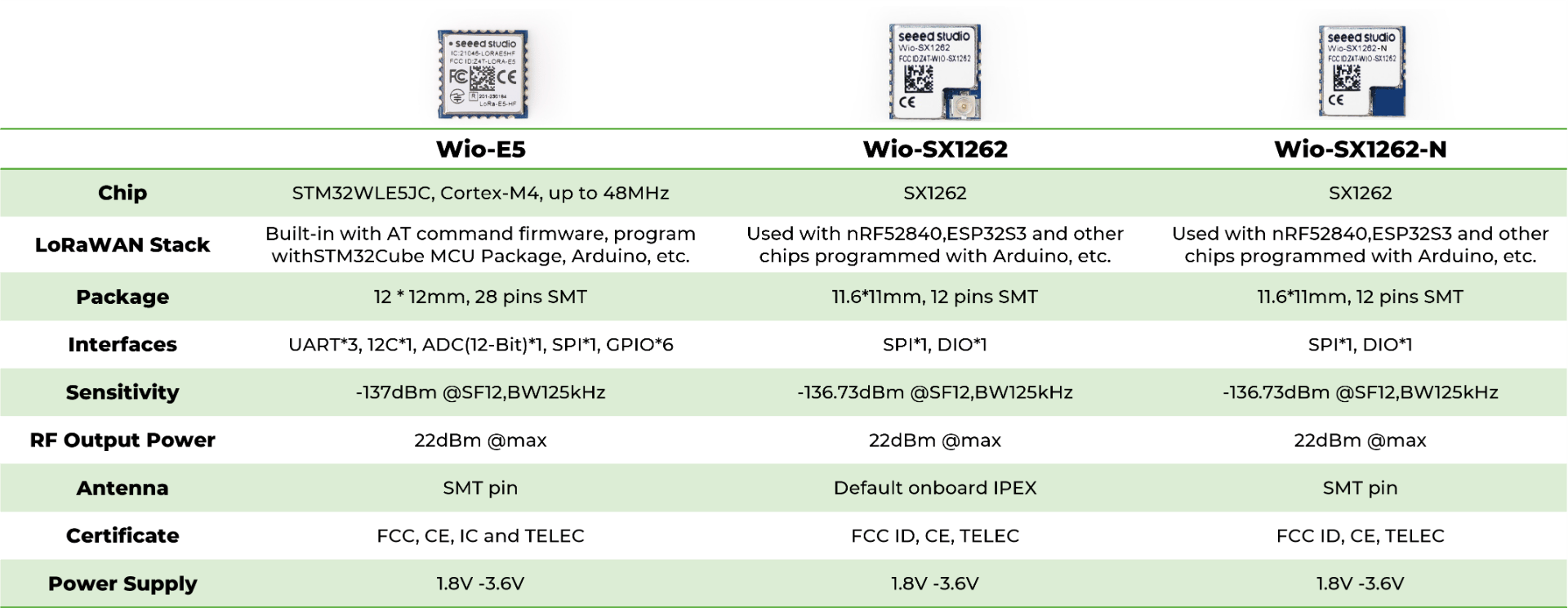

The Wio-SX1262 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU:
- If you already have an MCU, such as an nRF52840 or ESP32, and you just need to add LoRa functionality, you can choose the Wio-SX1262.
- the Wio-SX1262 series now includes the Wio-SX1262-N , which does not have an IPEX connector but instead uses SMT packaging to route the antenna from the PIN pins to an onboard antenna.
- If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.
ODM & OEM
With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization and manufacturing services for hardware products. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios.
If you want to design in our Wio-E5/Wio-SX1262 Module, we provide a one-stop ODM and OEM service for quick customization and scale-up. Please contact [email protected] if you have a large quantity customization need.
30% off Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 Project Sponsorship with Seeed Fusion PCBA
If you have an interesting concept for any of Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 and are willing to share it, we can help you make it a reality with Seeed Fusion’s one-stop-shop capabilities. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 modules from our Fusion Open Parts Library, but also fabricate and scale your PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production. For more information, please click here.
Specification
|
Main Chip |
SX1262 |
|
Size |
11.6(W)11(L)2.95(H) mm |
|
Package |
12 pins, SMT |
|
Frequency |
supports 862-930MHz |
|
Power Supply |
3.3V @typical |
|
Sleep Current |
1.62 μA |
|
SX1262 Power Distribution Mode |
DC-DC Mode |
|
TCXO Supply Mode |
By SX1262 DIO3 |
|
TCXO Supply Voltage |
1.7~3.3 V |
|
Maximum Operation Current (Transmitter) |
125mA @22dBm in 862-930MHz typical |
|
Maximum Operation Current (Receiver) |
7.6mA @BW125kHz, 862-930MHz typical |
|
Output Power |
22dBm max @862-930MHz |
|
Receiver Sensitivity |
● 136.73dBm @SF12, BW125kHz typical |
|
Harmonics |
≤-45dBm above 1GHz |
|
Antenna |
SMT pin |
|
Interface |
1 x SPI DIO1: Multi-purpose digital IO Busy: Busy signal indicator DIO2: Multi-purpose digital IO, internally connected to RF switch DIO3: TCXO voltage power supply configure through software |
|
Working Temperature |
● 40°C ~ 85°C |

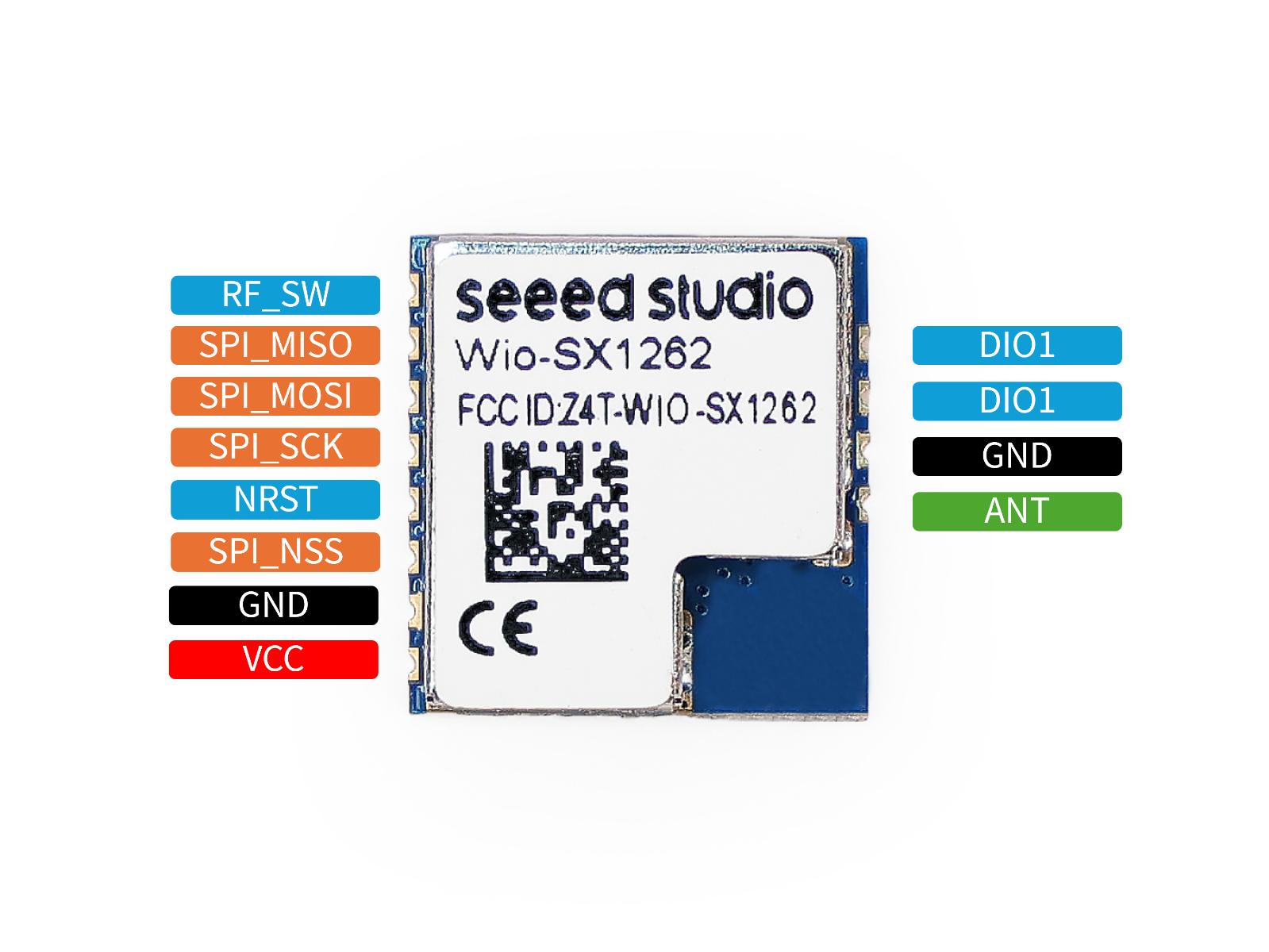

Hardware Overview
Application
The Wio-SX1262 and Wio-E5 can be used for the same applications, with the primary differences being the device control solutions and cost options. Thus, past cases involving the Wio-E5 can serve as useful references.
- Solar-Powered Outdoor Air Quality Monitor transmits data over LoRaWAN with the help of Seeed Fusion
- Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
- Former Ph.D Researcher At OSU Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
- Monitoring Indoor Air Pollutants – The Silent Issue for Smart City IoT using Seeed Wio-E5 and Fusion PCB
- Voice Needed! Ready for a Wio-E5 &038; ESP32 Powered WiLoBlIno Device?
Documents
ECCN/HTS
| HSCODE | 8517799000 |
| USHSCODE | 8517.62.0090 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Part List
|
Wio-SX1262-N Wireless Module (without IPEX) |
x1 |
