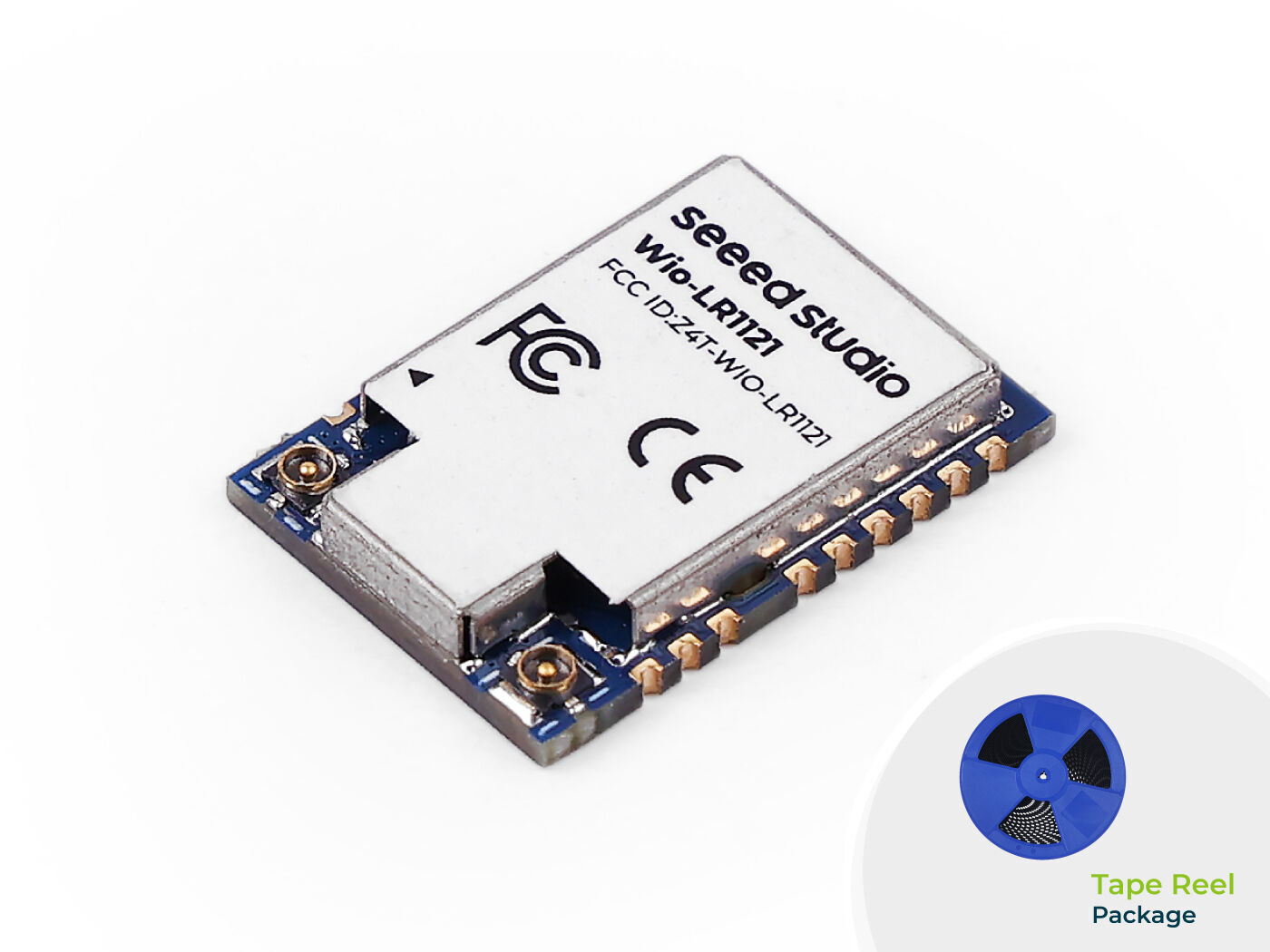

Wio-LR1121 Wireless Module with IPEX (Tape Reel), LR1121 embedded, supports sub-GHz, 2.4GHz ISM, and 2.1GHz satellite S-band
| Manufacturer | |
| Mfr. Part # | 113991415 |
| EBEE Part # | 113991415-EB |
| Customer # | |
| EDA Models | |
| Description | Wio-LR1121 is a multi-band LoRa® connectivity module designed for Internet of Things (IoT) LoRaWAN applications. It supports sub-GHz, 2.4GHz ISM, and 2.1GHz satellite S-band communications. The module features a compact size and an ultra-low power design, integrating a TCXO (temperature-compensated crystal oscillator) and an RF switch, is suitable for global use in smart homes, agricultural sensors, building automation, smart cities, asset tracking, retail store sensors, smart metering, and environmental monitoring. |
This materials supports customized cables!
Learn more >>Recommonended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | IoT/Communication Modules ,LoRa Modules |
Description
Feature
- High Performance: The transmit power up to 33 dBm @868/930MHz; 11.23dBm @ 2.4-2.5GHz
- Wireless Connectivity: SPI interface, supports Sub-GHz global LoRa&LoRaWAN frequency plan and 4GHz

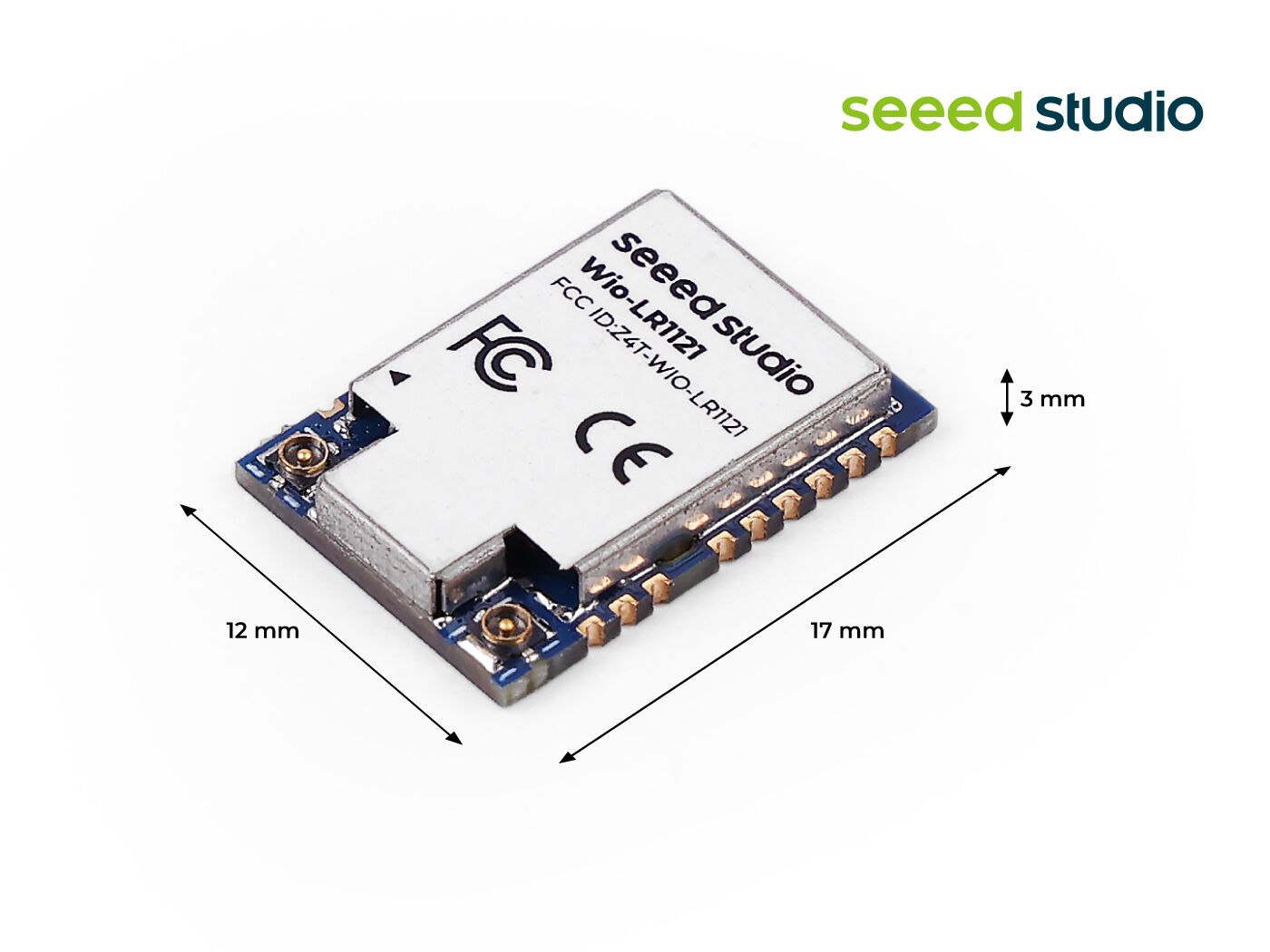

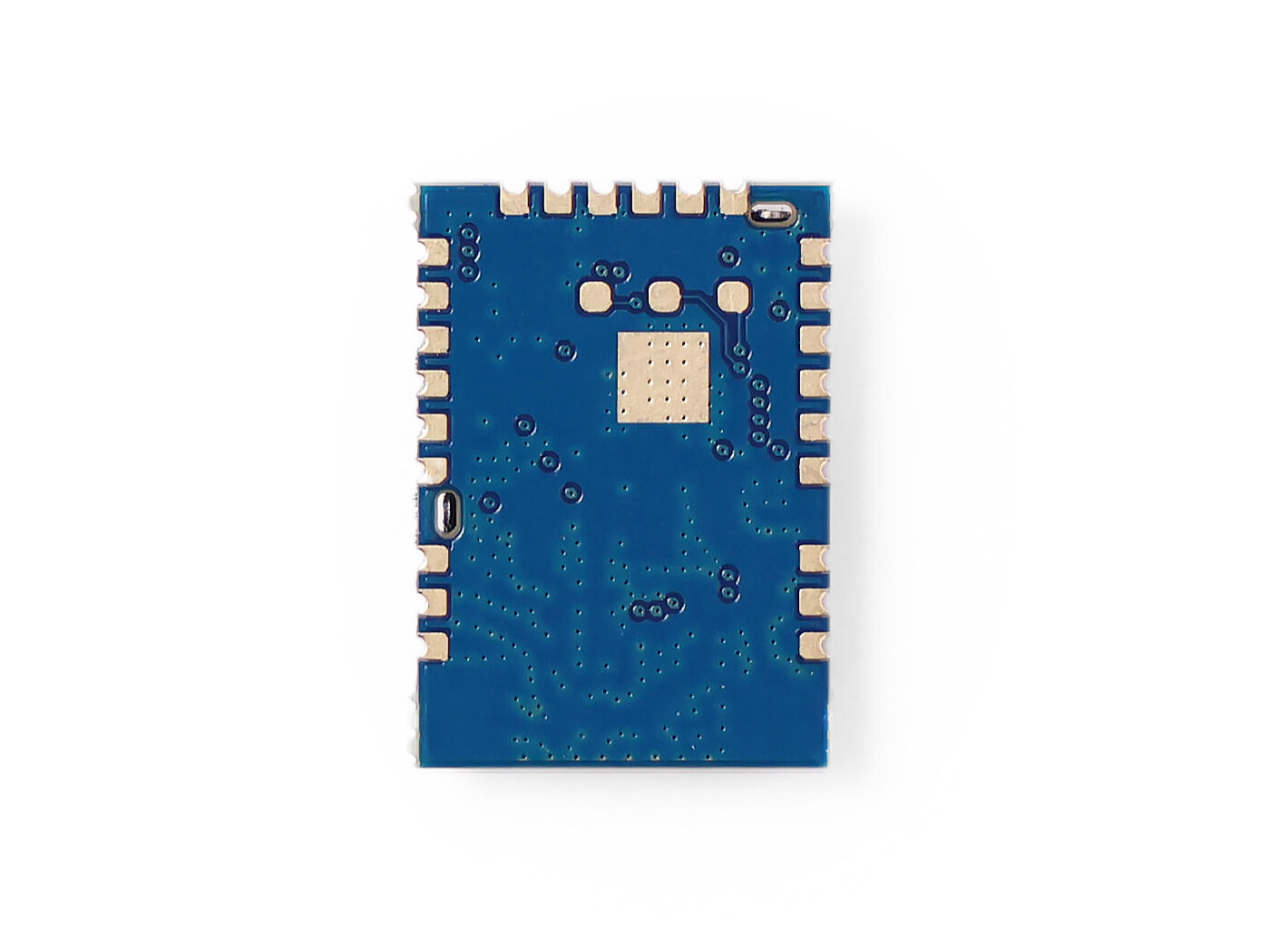

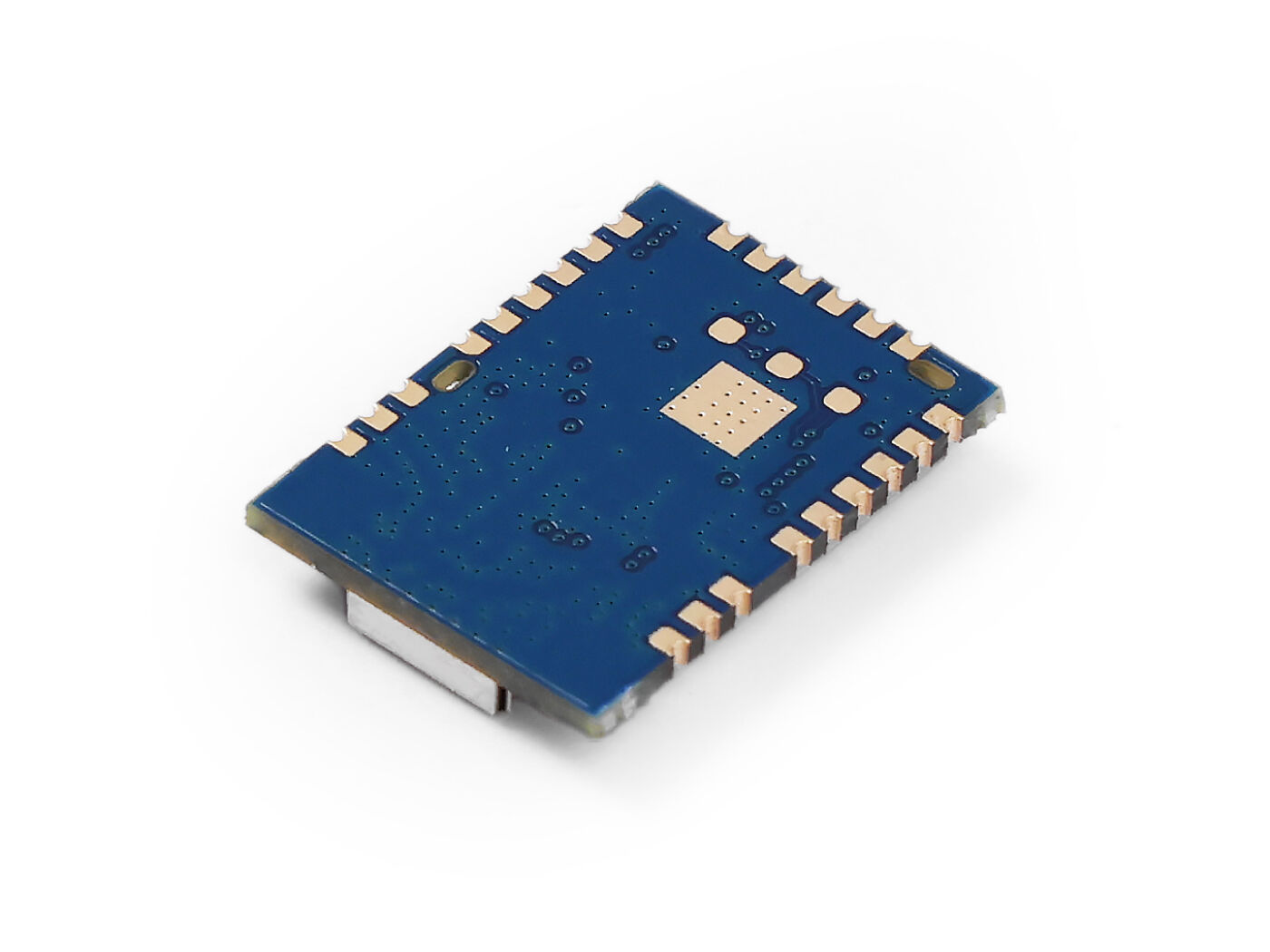

- Small Size: 17*12*2.6mm @24Pins SMT
- Low Power Consumption: 35uA sleep current;Sub-GHz: [email protected]/3.3V; 2.4G:[email protected]/3.3V
- RF Interface: With IPEX4 @1.5mm
- FCC, CE, Certified
The Wio-LR1121 and Wio-E5 are both perfect choices for designing LoRa devices. Their main differences lie in whether you have a host MCU.
If you need a single MCU to complete your design, then the Wio-E5 is an excellent choice.
ODM & OEM
With over 10 years of ODM & OEM experience, our engineers and product experts are proficient in delivering customization and manufacturing services for hardware products. We are committed to assisting you at any moment and shortening your path from idea to product for emerging AIoT scenarios.
If you want to design in our Wio-E5/Wio-SX1262/Wio-LR1121 Module, we provide a one-stop ODM and OEM service for quick customization and scale-up. Please contact [email protected] if you have a large quantity customization need.
30% off Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 Project Sponsorship with Seeed Fusion PCBA
If you have an interesting concept for any of Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 and are willing to share it, we can help you make it a reality with Seeed Fusion’s one-stop-shop capabilities. Through our Fusion PCBA Sponsorship program, you can not only enjoy the lowest unit prices for Wio-E5/Wio-SX1262/Wio-LR1121/Wio-WM1110 modules from our Fusion Open Parts Library, but also fabricate and scale your PCBA designs at low cost (30% off) with FREE Design for Manufacturing consulting services, streamlining your journey from prototype to production. For more information, please click here.
Specification
|
Main Chip |
LR1121 |
|
Size |
17*12*2.6 mm |
|
Package |
12 pins, SMT |
|
Frequency |
supports 863-928MHz; 2.4-2.5GHz |
|
Power Supply |
3.3V @typical |
|
Sleep Current |
1.35 μA |
|
LR1121 Power Distribution Mode |
DC-DC Mode |
|
TCXO Supply Mode |
By LR1121 VTCXO Pin |
|
TCXO Supply Voltage |
1.6~3.3 V |
|
Maximum Operation Current (Transmitter) |
124.5mA @ LoRa® 915 TX 22dBm 31mA@ LoRa® 868 TX 14dBm 30.7mA@ LoRa® 2.4G TX 13dBm |
|
Maximum Operation Current (Receiver) |
7.8mA@ LoRa® SF12 125kHz sub-GHz 6.7mA@ LoRa® SF12 125kHz 2.4GHz/S-band |
|
Output Power |
20.4dBm max @ LoRa® 11dBm max @ 2.4G |
|
Receiver Sensitivity |
RxBoost ON： -126dBm @SubG,BW=125KHz, SF = 7 -140dBm @SubG, BW=125KHz, SF = 12 -118dBm @2.4G,BW=125KHz, SF = 7 -132.5dBm @2.4G ,BW=125KHz, SF = 7 |
|
RxBoost OFF： -124dBm @SubG,BW=125KHz, SF = 7 -138dBm @SubG, BW=125KHz, SF = 12 |
|
|
Antenna |
IPEX4 @1.5mm |
|
Working Temperature |
40°C ~ 85°C |

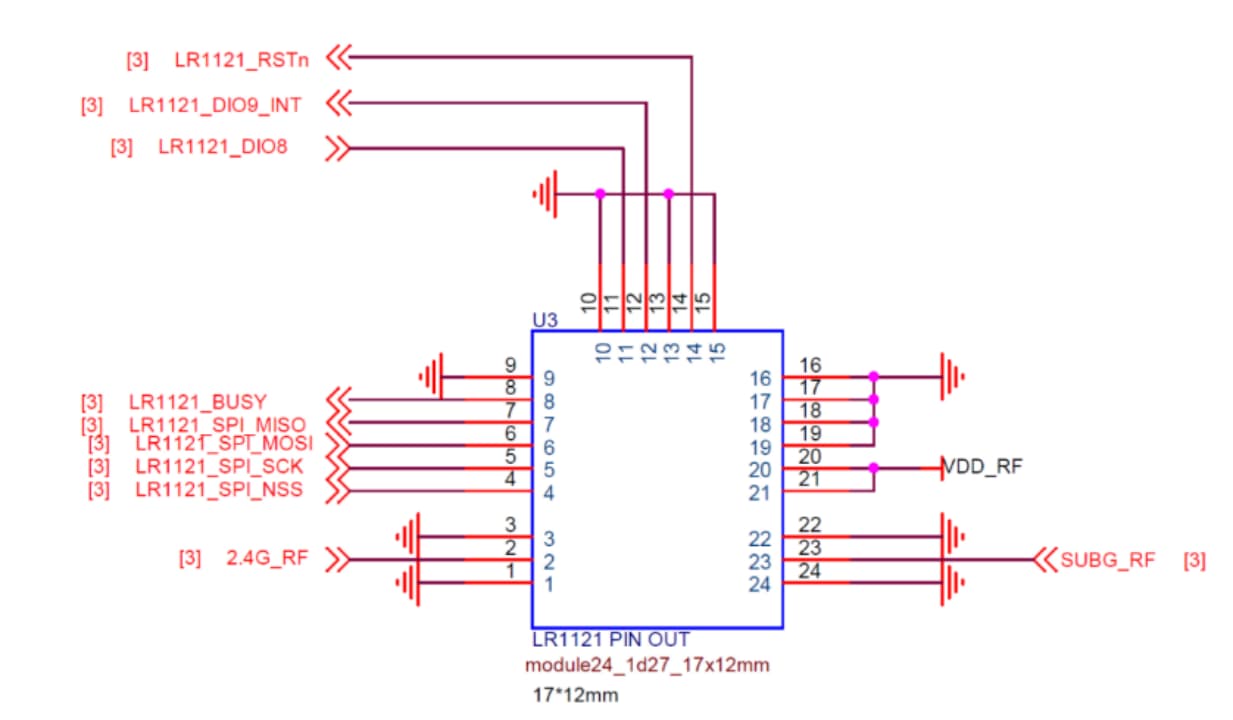

Hardware Overview
ECCN/HTS
| HSCODE | 8517799000 |
| USHSCODE | 8517620090 |
| UPC | |
| EUHSCODE | 8517180000 |
| COO | CHINA |
Part List
|
Wio-LR1121(with IPEX antenna connector) |
x1 |
