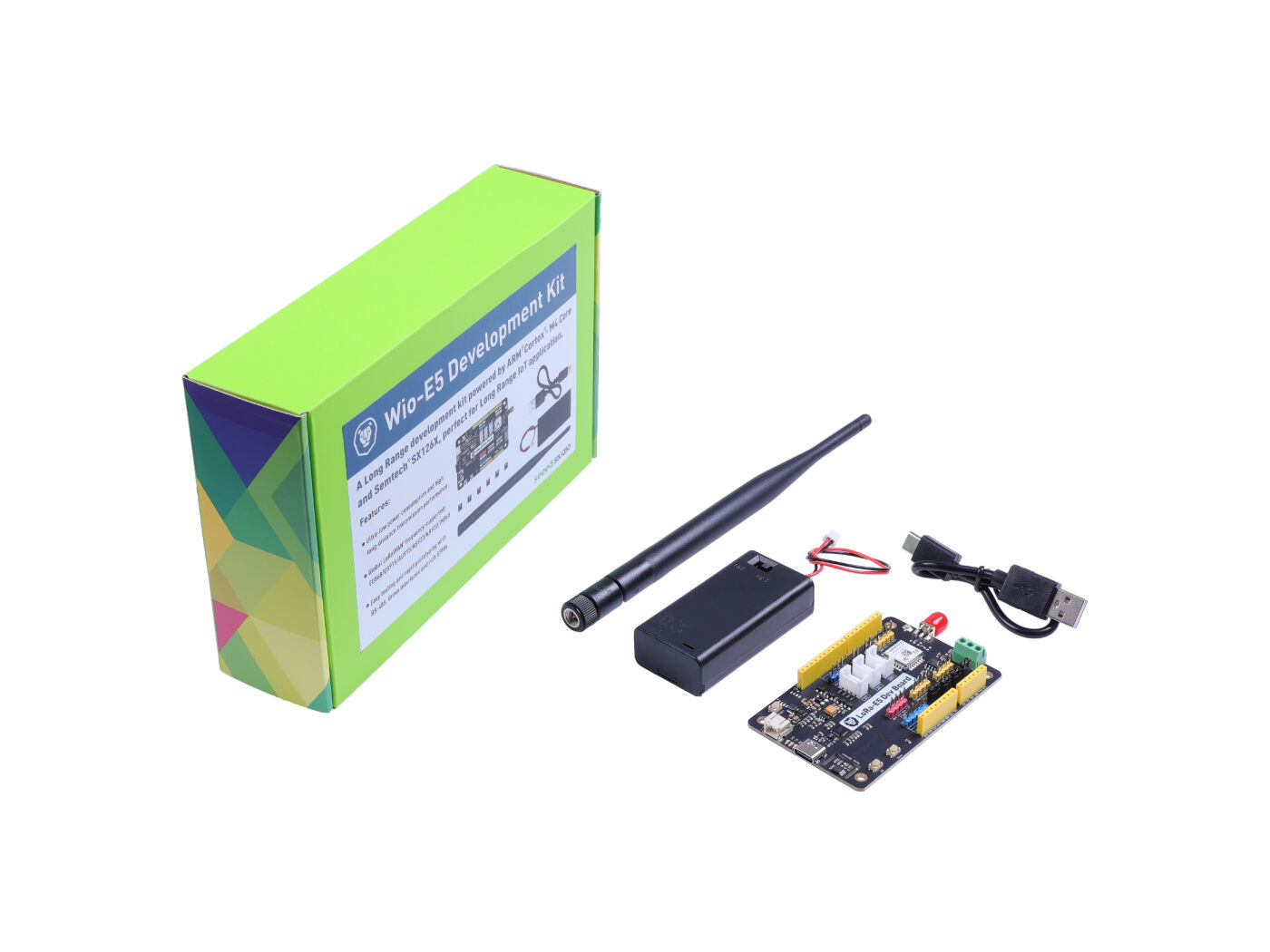

Wio-E5-LE Dev Kit is an easy-to-use compact development toolset for you to unlock the powerful performance of the Wio-E5-LE Wireless Module (STM32WLE5JC). It provides abundant access protocols and interface types, enabling rapid testing and prototyping with RS485, Grove connectors, and flexible GPIO.

This ultra-compact board has an extremely low power draw and supports both (G)FSK and LoRa. With its built-in AT command firmware, the Wio-E5-LE Dev Kit simplifies building prototypes and applications. It can easily support LoRaWAN® protocols and various frequency plans, making it ideal for long-range sensor nodes and wireless communication applications needing minimal power.

Features

• High Performance: TXOP=14dBm@868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW
• Long Distance Use: 158dB link budget
• Wireless Connectivity: Embedded Long Range protocol, AT command, support global Long Range frequency plan
• Use-friendly: It features fully lead out GPIOs, rich interfaces including RS-485, Grove, and etc, as well as convenient RESET and BOOT buttons on board.
• FCC, CE Certified

Description

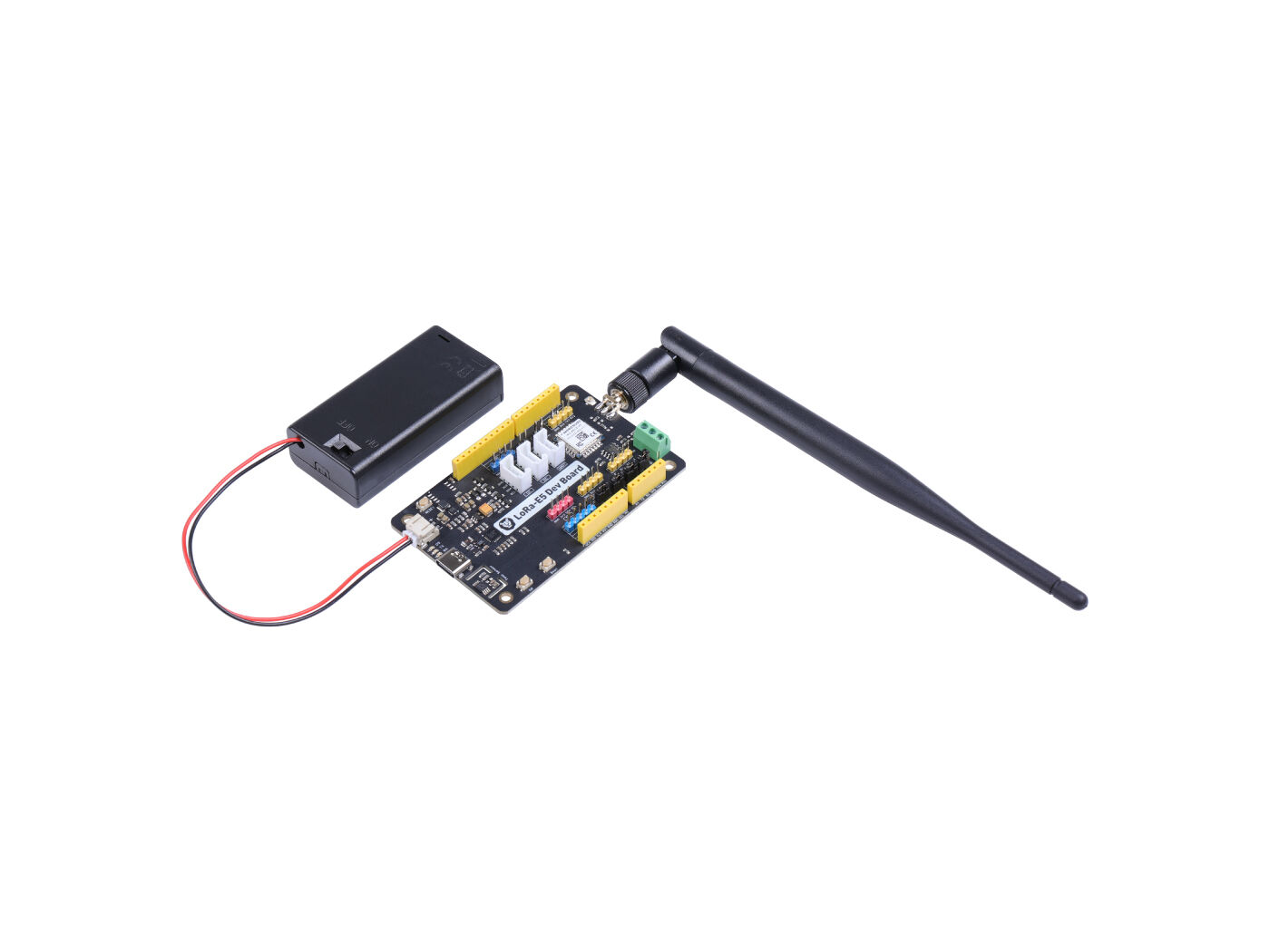

Wio-E5-LE Dev Kit features ultra-long range transmission, extremely low chip power draw, and user-friendly interfaces. Designed to unlock the Wio-E5-LE module's full capabilities, it provides access to all 28 pins and abundant connectivity options including Grove connectors, RS485, and male/female pin headers. This allows connecting sensors and modules with various connectors and data protocols without wire soldering, saving development time. The kit can also be easily powered using the on-board battery holder with 2 AA batteries, enabling temporary use without an external power source. With its versatile connectivity and ease of use, the Wio-E5-LE Dev Kit enables rapid testing and prototyping.

Since Wio-E5-LE is a LoRaWAN chip with an MCU, there are three main ways to utilize the Wio-E5-LE Dev Board:

1. Connect Wio-E5-LE Dev Kit to PC and control it using AT commands

There is a built-in USB to UART function on board, you could just simply connect the Wio-E5-LE Dev Kit to your PC with a USB type C cable, and use serial communication software to send AT commands and read data from the board

2. Connect Wio-E5-LE Dev Kit to another mainboard via UART and control it using AT commands sent through the UART connection

For example, connect Wio-E5-LE Dev Kit to Seeed Studio XIAO and the Expansion Board via UART, and send AT commands and read data from Seeed Studio XIAO through Arduino IDE serial monitor.

3. Develop user application by using SDK

Develop your own LoRa development board with MCU function by using STM32Cube Programmer, which is the SDK officially provided by STMicroelectronics. To download this SDK resource, please click here.

With all the outstanding features listed above, the Wio-E5-LE Dev Board will be a superior choice for IoT device development, testing, prototyping, and applications in long-distance, ultra-low power consumption IoT scenarios like smart agriculture, smart office, and smart industry. Additionally, the module has already been certificated, so your completed device can be certified and approved by any agency cheaply and rapidly.

If you are unfamiliar with Long Range technology, please check out this blog An introduction of LoRa® and LoRaWAN® technology in detail.
