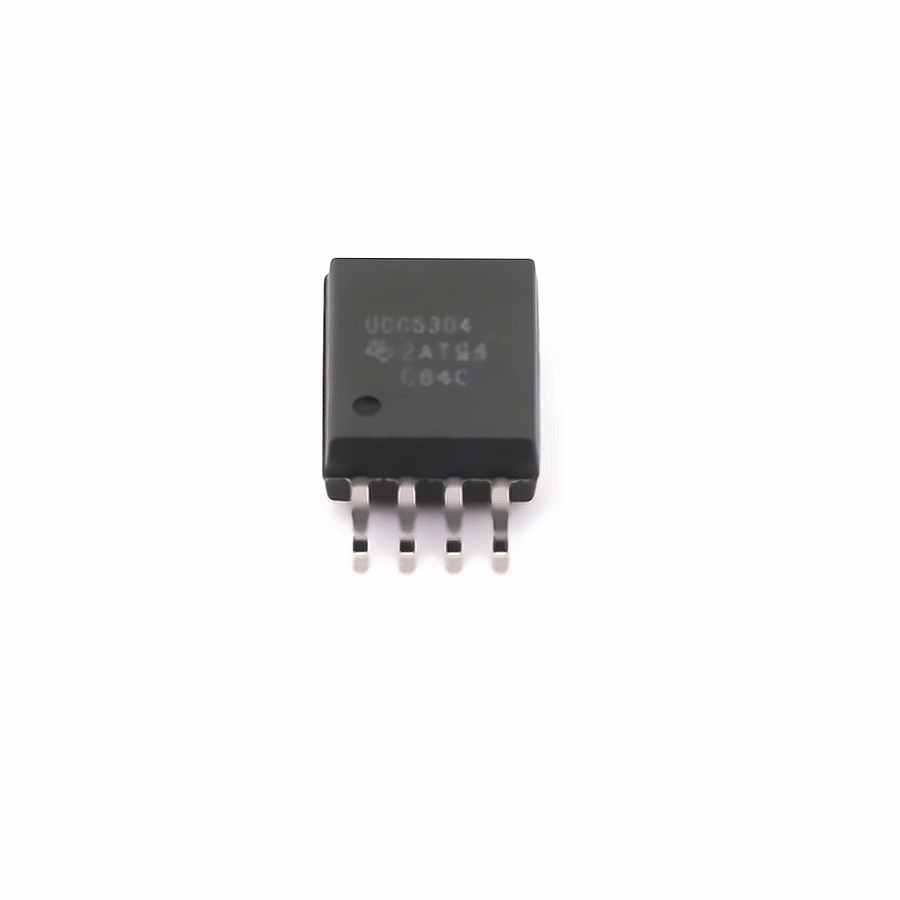

Texas Instruments UCC5304DWVR
| Manufacturer | |
| Mfr. Part # | UCC5304DWVR |
| EBEE Part # | E82878299 |
| Package | SOIC-8-300mil |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | SOIC-8-300mil Isolators - Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>13 In Stock for Fast Shipping
13 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.9571 | $ 1.9571 |
| 10+ | $1.6446 | $ 16.4460 |
| 30+ | $1.4489 | $ 43.4670 |
| 100+ | $1.2485 | $ 124.8500 |
| 500+ | $1.1585 | $ 579.2500 |
| 1000+ | $1.1191 | $ 1119.1000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,Isolators - Gate Drivers | |
| Datasheet | Texas Instruments UCC5304DWVR | |
| RoHS | ||
| Operating Temperature | -40℃~+125℃@(Ta) | |
| Quiescent Current | 2000uA | |
| Number of Channels | 1 | |
| Voltage - Supply | 3V~5.5V;6V~18V | |
| load type | MOSFET | |
| Rise Time | 16ns | |
| Fall Time | 12ns | |
| Isolation Voltage(Vrms) | 5000 | |
| CMTI(kV/us) | 100kV/us | |
| Current - Output High(IOH) | 4A | |
| Current - Output Low(IOL) | 6A | |
| Input Logic Level - Low | 0.8V~1.25V | |
| Input Logic Level - High | 1.6V~2V | |
| Propagation Delay(tpd) | 40ns;40ns |
