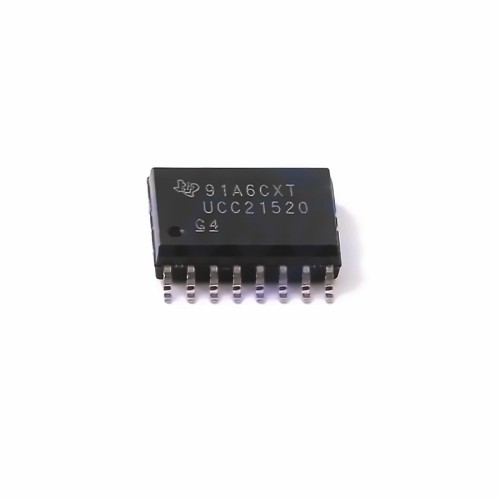

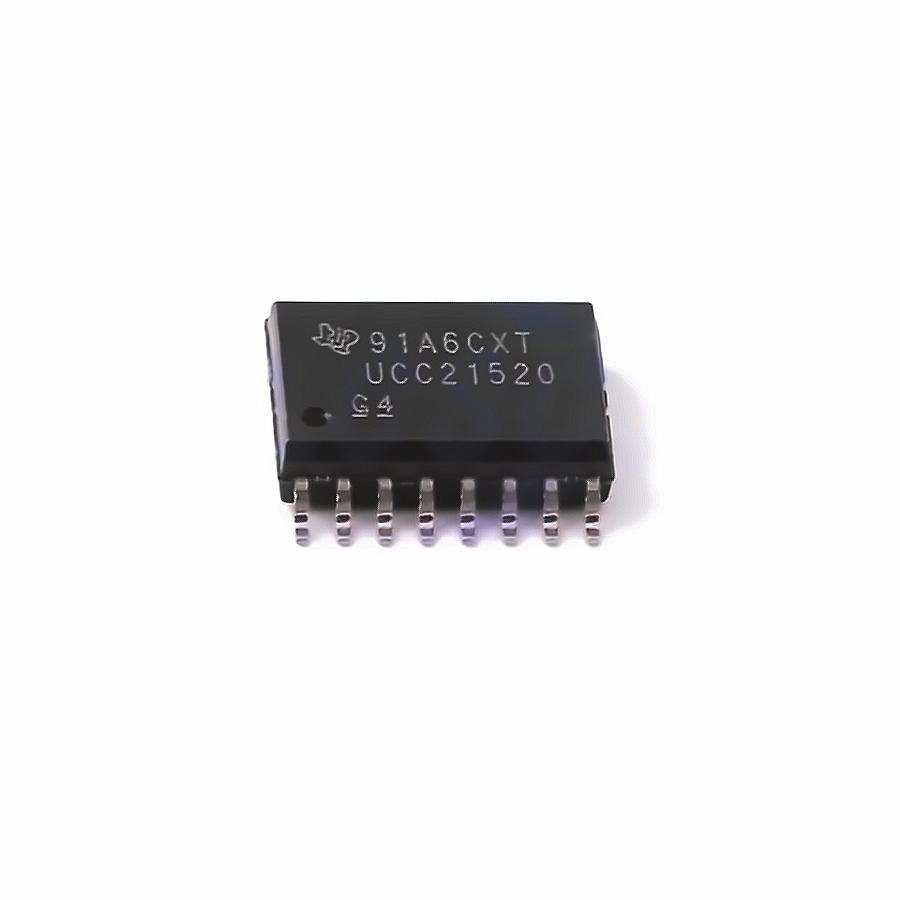

Texas Instruments UCC21520DWR
| Manufacturer | |
| Mfr. Part # | UCC21520DWR |
| EBEE Part # | E8601651 |
| Package | SOIC-16-300mil |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | SOIC-16-300mil Isolators - Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>3294 In Stock for Fast Shipping
3294 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.9320 | $ 0.9320 |
| 10+ | $0.8187 | $ 8.1870 |
| 30+ | $0.7102 | $ 21.3060 |
| 100+ | $0.6304 | $ 63.0400 |
| 500+ | $0.5969 | $ 298.4500 |
| 1000+ | $0.5809 | $ 580.9000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,Isolators - Gate Drivers | |
| Datasheet | Texas Instruments UCC21520DWR | |
| RoHS | ||
| Operating Temperature | -40℃~+150℃@(Tj) | |
| Number of Channels | 2 | |
| Voltage - Supply | 9.2V~25V;3V~18V | |
| load type | IGBT;MOSFET | |
| Isolation Voltage(Vrms) | 5700 | |
| CMTI(kV/us) | 125kV/us | |
| Current - Output High(IOH) | 4A | |
| Current - Output Low(IOL) | 6A | |
| Input Logic Level - Low | 0.8V~1.2V | |
| Input Logic Level - High | 1.2V~2V | |
| Propagation Delay(tpd) | 45ns;45ns |
