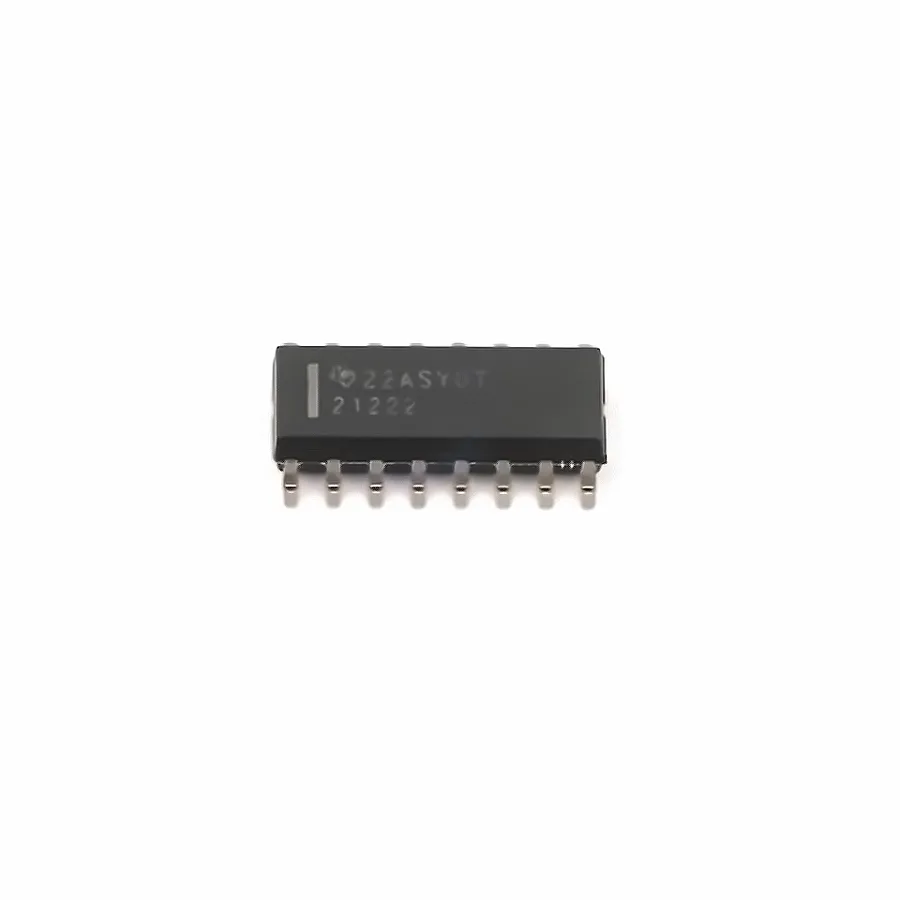

Texas Instruments UCC21222DR
| Manufacturer | |
| Mfr. Part # | UCC21222DR |
| EBEE Part # | E82878024 |
| Package | SOIC-16 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | SOIC-16 Isolators - Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>1299 In Stock for Fast Shipping
1299 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.4022 | $ 2.4022 |
| 10+ | $2.0434 | $ 20.4340 |
| 30+ | $1.8195 | $ 54.5850 |
| 100+ | $1.5893 | $ 158.9300 |
| 500+ | $1.4861 | $ 743.0500 |
| 1000+ | $1.4401 | $ 1440.1000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,Isolators - Gate Drivers | |
| Datasheet | Texas Instruments UCC21222DR | |
| RoHS | ||
| Operating Temperature | -40℃~+130℃@(Tj) | |
| Number of Channels | 2 | |
| load type | IGBT;MOSFET | |
| Driven Configuration | Low Side;High Side;Half-Bridge | |
| Peak Output Current(source) | 4A | |
| Fall Time | 12ns | |
| Peak Output Current(sink) | 6A | |
| Low Level Delay Time | 40ns | |
| High Level Delay Time | 40ns | |
| Isolation Voltage(Vrms) | 3000 | |
| Quiescent Current(Iq) | 2mA | |
| Input Logic Level - Low | 0.8V~1.25V | |
| Input Logic Level - High | 1.6V~2V | |
| Voltage - Supply (Input) | 3V~5.5V | |
| Voltage - Supply (Driver) | 9.2V~18V |
