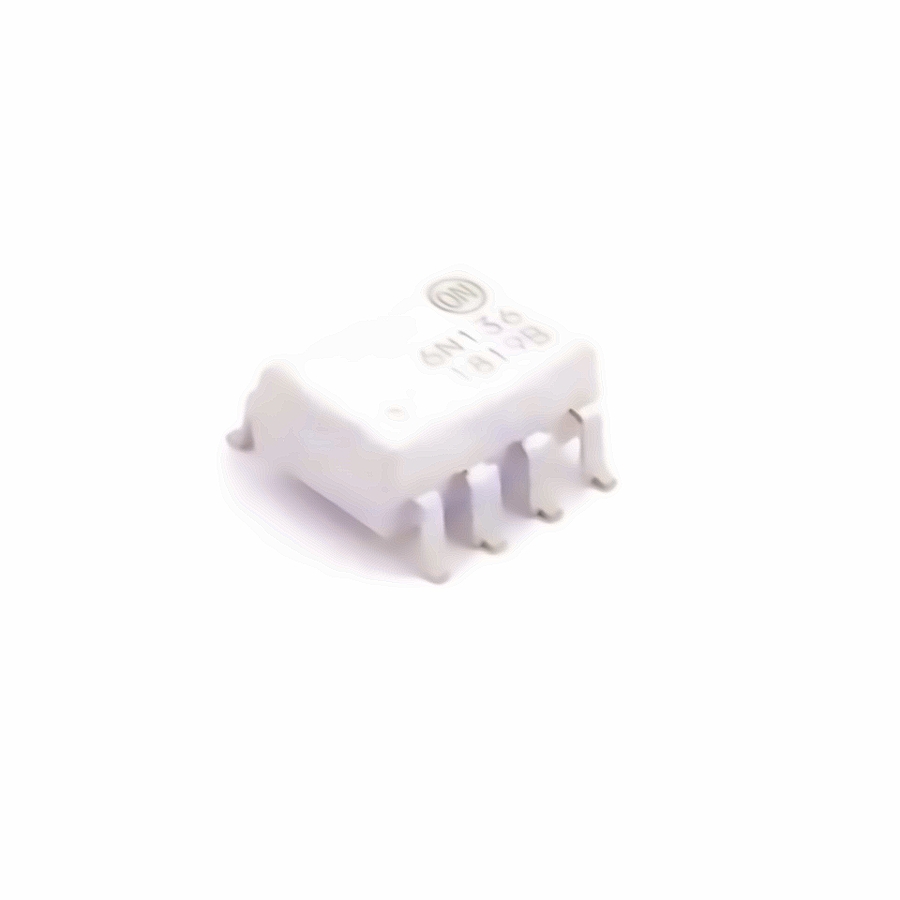

onsemi 6N136SDM
| Manufacturer | |
| Mfr. Part # | 6N136SDM |
| EBEE Part # | E824402 |
| Package | SOP-8-2.54mm |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 1Mbit/s 800ns 10kV/us DC SOP-8-2.54mm Logic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>5541 In Stock for Fast Shipping
5541 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.1165 | $ 1.1165 |
| 10+ | $0.9248 | $ 9.2480 |
| 30+ | $0.8282 | $ 24.8460 |
| 100+ | $0.7332 | $ 73.3200 |
| 500+ | $0.5195 | $ 259.7500 |
| 1000+ | $0.4894 | $ 489.4000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Logic Output Optoisolators | |
| Datasheet | onsemi 6N136SDM | |
| RoHS | ||
| Operating Temperature | -55℃~+100℃ | |
| Output Current | 8mA | |
| Number of Channels | 1 | |
| Voltage - Supply | 500mV~30V | |
| Data Rate | 1Mbit/s | |
| Input Type | DC | |
| Reverse Voltage | 5V | |
| Low Level Delay Time | 1.5us | |
| High Level Delay Time | 1.5us | |
| Isolation Voltage(Vrms) | 2.5kV | |
| CMTI(kV/us) | 10kV/us | |
| Pd - Power Dissipation | 100mW | |
| Voltage - Forward(Vf) | 1.45V | |
| Current transfer ratio | 15% | |
| Forward Current(If) | 25mA | |
| Input threshold current | - |
