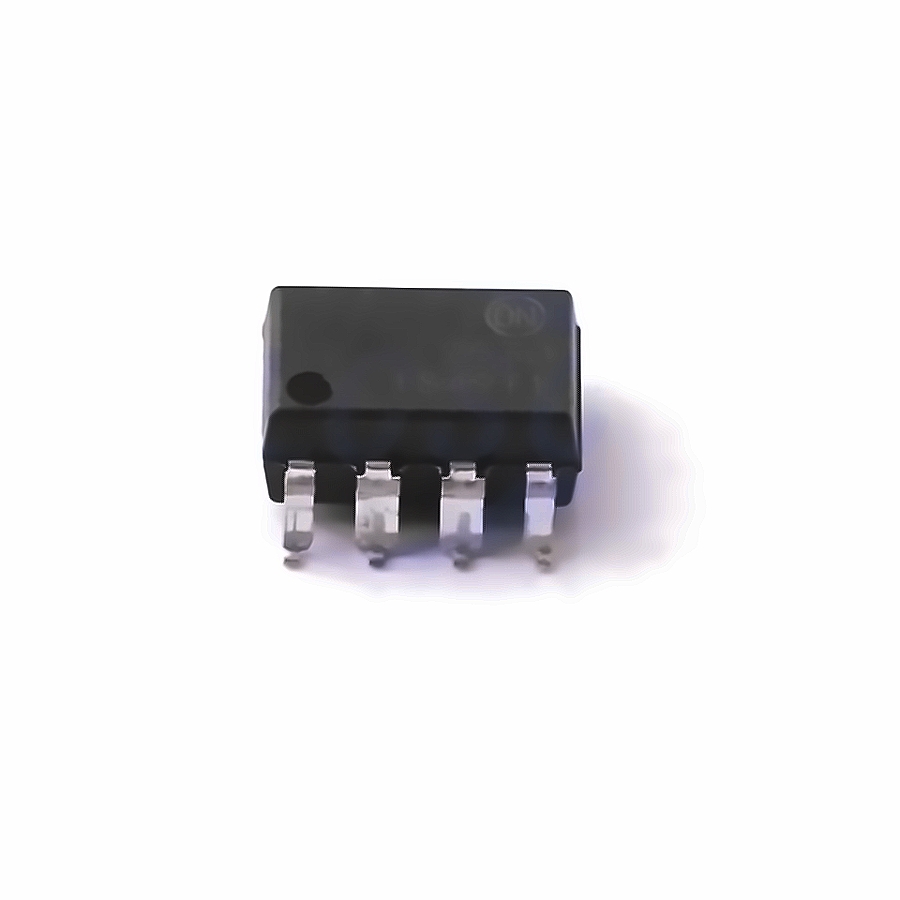

onsemi HCPL2530SD
| Manufacturer | |
| Mfr. Part # | HCPL2530SD |
| EBEE Part # | E8500390 |
| Package | SOP-8-2.54mm |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 1Mbit/s 1.5us 10kV/us DC SOP-8-2.54mm Logic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.7787 | $ 2.7787 |
| 10+ | $2.3587 | $ 23.5870 |
| 30+ | $2.0953 | $ 62.8590 |
| 100+ | $1.6551 | $ 165.5100 |
| 500+ | $1.5343 | $ 767.1500 |
| 1000+ | $1.4816 | $ 1481.6000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Logic Output Optoisolators | |
| Datasheet | onsemi HCPL2530SD | |
| RoHS | ||
| Operating Temperature | -55℃~+100℃ | |
| Number of Channels | 2 | |
| Voltage - Supply | - | |
| Data Rate | 1Mbit/s | |
| Input Type | DC | |
| Reverse Voltage | 5V | |
| Low Level Delay Time | 1.5us | |
| High Level Delay Time | 1.5us | |
| Isolation Voltage(Vrms) | 2.5kV | |
| CMTI(kV/us) | 10kV/us | |
| Pd - Power Dissipation | 35mW | |
| Voltage - Forward(Vf) | 1.45V | |
| Current transfer ratio | 7% | |
| Forward Current(If) | 25mA | |
| Input threshold current | - |
