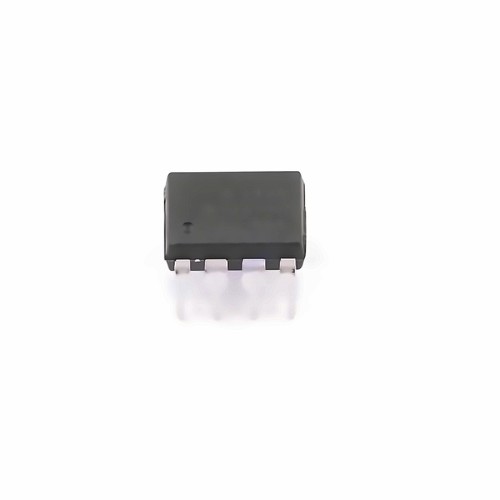

Images are for reference only
Add to Favourites
Broadcom/AVAGO HCPL-3120-000E
| Manufacturer | |
| Mfr. Part # | HCPL-3120-000E |
| EBEE Part # | E814970 |
| Package | DIP-8 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 500ns 15V~30V 25kV/us DC DIP-8 Logic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>2 In Stock for Fast Shipping
2 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.9537 | $ 0.9537 |
| 10+ | $0.7817 | $ 7.8170 |
| 50+ | $0.6878 | $ 34.3900 |
| 100+ | $0.5811 | $ 58.1100 |
| 500+ | $0.5334 | $ 266.7000 |
| 1000+ | $0.5127 | $ 512.7000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Logic Output Optoisolators | |
| Datasheet | Broadcom/AVAGO HCPL-3120-000E | |
| RoHS | ||
| Operating Temperature | -40℃~+100℃ | |
| Output Current | 2.5A | |
| Number of Channels | 1 | |
| Power Dissipation | 295mW | |
| Voltage - Supply | 15V~30V | |
| Data Rate | - | |
| Input Type | DC | |
| Reverse Voltage | 5V | |
| Isolation Voltage(Vrms) | 3.75kV | |
| CMTI(kV/us) | 35kV/us | |
| Voltage - Forward(Vf) | 1.8V | |
| Propagation Delay(tpd) | 500ns;500ns | |
| Forward Current(If) | 16mA | |
| Input threshold current | 8mA |
