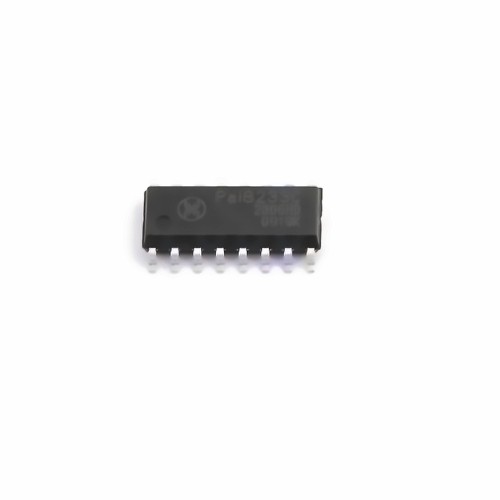

Images are for reference only
Add to Favourites
2Pai Semi Pai8233C-S1R
| Manufacturer | |
| Mfr. Part # | Pai8233C-S1R |
| EBEE Part # | E86807638 |
| Package | SOIC-16 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | SOIC-16 Isolators - Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.2537 | $ 1.2537 |
| 10+ | $1.0197 | $ 10.1970 |
| 30+ | $0.8911 | $ 26.7330 |
| 100+ | $0.7454 | $ 74.5400 |
| 500+ | $0.6803 | $ 340.1500 |
| 1000+ | $0.6509 | $ 650.9000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Power Management (PMIC) ,Isolators - Gate Drivers | |
| Datasheet | 2Pai Semi Pai8233C-S1R | |
| RoHS | ||
| Operating Temperature | -40℃~+125℃@(Tj) | |
| Quiescent Current | 0.5mA | |
| Number of Channels | 2 | |
| Voltage - Supply | 9.2V~25V;3V~5.5V | |
| load type | IGBT;MOSFET | |
| Driven Configuration | Half-Bridge | |
| Rise Time | 18ns | |
| Fall Time | 12ns | |
| Isolation Voltage(Vrms) | 3000 | |
| CMTI(kV/us) | 100kV/us | |
| Current - Output High(IOH) | 4A | |
| Current - Output Low(IOL) | 8A | |
| Input Logic Level - Low | 0.8V~1.2V | |
| Input Logic Level - High | 1.6V~2V | |
| Propagation Delay(tpd) | 30ns;30ns |
