Seeed 318020691
| Üretici | |
| Üretici Parça No. | 318020691 |
| EBEE Parça No. | E83284986 |
| Paket | - |
| Müşteri No. | |
| Veri Sayfası | |
| EDA Modelleri | |
| ECCN | EAR99 |
| Açıklama | Fibreglass LoRa antenna with a gain of 5.8 dBi, frequency range 902-930MHz, and 800mm length, comes with a CFD200 cable with 1m length and a mounting bracket, compatible with SenseCAP M1 Indoor Gateway. |
Bu malzeme özelleştirilmiş kabloları destekler!
Daha fazla bilgi >>Stokta Var : Lütfen Soruşturun
Lütfen teklif talebinde bulunun, derhal yanıtlayacağız.
Satış Birimi: PieceTam Ambalaj: 200
| Adet | Birim Fiyat | Toplam Fiyat |
|---|---|---|
| 1+ | $151.6169 | $ 151.6169 |
| 200+ | $58.6747 | $ 11734.9400 |
| 500+ | $56.6129 | $ 28306.4500 |
| 1000+ | $55.5926 | $ 55592.6000 |
Sizin İçin Önerilenler
Teknik Özellikler
2768ürün bulundu.Benzerleri Göster| Tür | Açıklama | Tümünü Seç |
|---|---|---|
| Kategori | RF ve Kablosuz ,Antenler | |
| Veri Sayfası | Seeed 318020691 | |
| Anten türü | Glue Stick Antenna | |
| VSWR | 2.5 | |
| Zit Kazan | 5dBi | |
| Merkezi Frekans | 915MHz |
Açıklama
Description
Features
- Average gain: 5.8dBi
- Frequency range: 902-930MHz
- Length of 80cm
- Robust enough to withstand the harsh outdoor environment
- Fit for SenseCAP M1/M2 and other Helium hotspots
- Includes hardware for mounting
- Comes with a 1m cable
For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. So If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 5.8 dBi, a length of 80cm, and a frequency range from 902-930MHz, and it comes with hardware for pole and wall mounting.

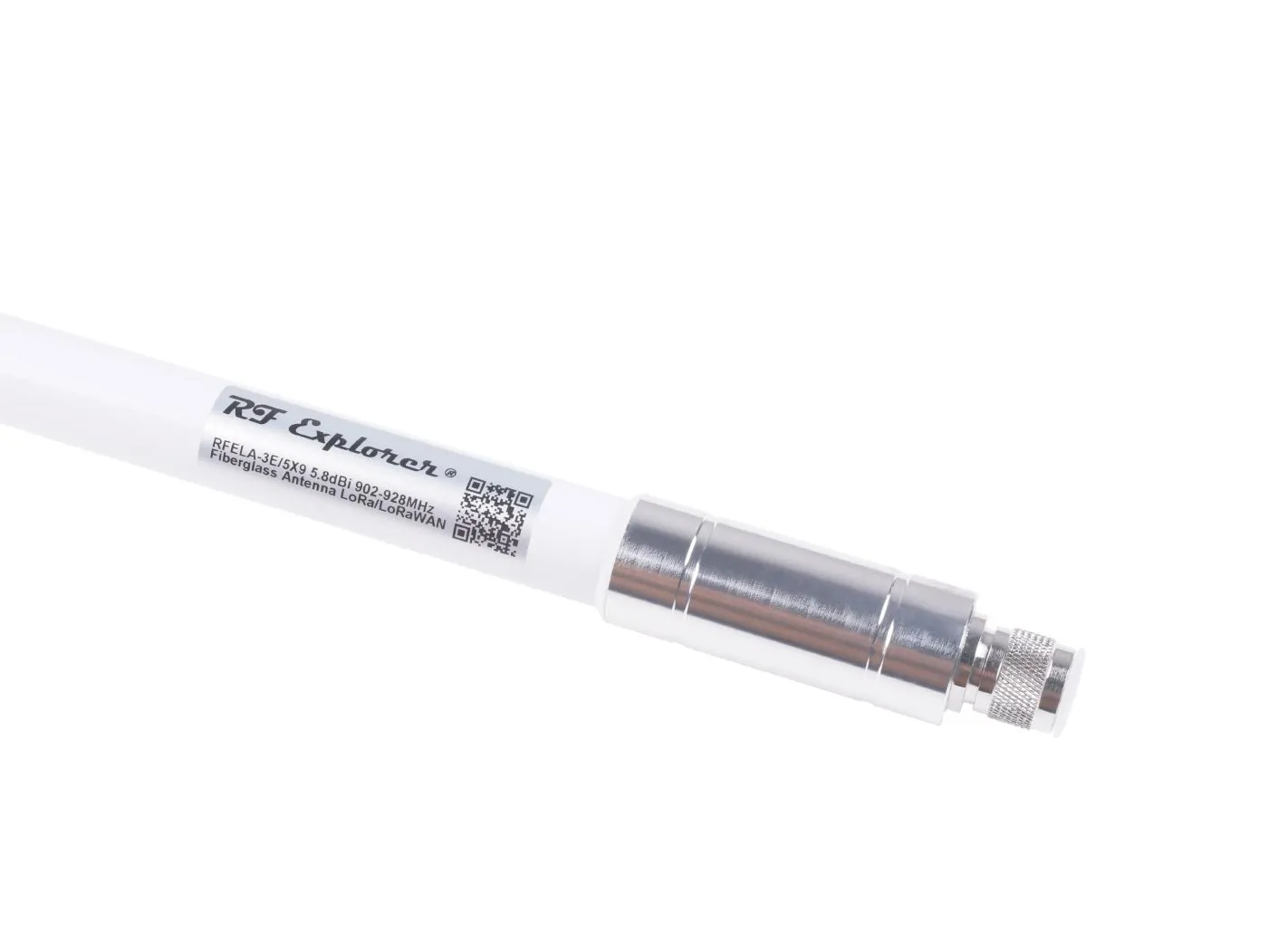

The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.
Application
The antenna can be used in any environment where long-range LoRa connections are required.
- Agriculture
- Environmental Monitoring
- Urban Monitoring
Antenna Specification
|
Frequency |
902-930MHz |
|
Impedance |
50Ω |
|
VSWR |
≤2.5 |
|
Gain |
5.8±1dBi |
|
Max Efficiency |
>78% |
|
Radiation Pattern |
Omni-directional |
|
Connector |
N-Type Male |
|
Material |
Fiberglass |
|
Length |
800±10mm |
|
Operation Temperature |
-30℃~65℃ |
Efficiency and Gain
Cable Specification
| Frequency Range | 0-6000MHz |
| Impedance | 50Ω |
| VSWR | <2.0 |
| Insertion loss | <0.5dB @900 MHz |
| Insulation resistance | >15 MΩ |
| Voltage breakdown | >500V |
| External cable diameter | 5mm |
| Connector |
Type N Female Type RP-SMA Male |
| Conductor material |
Copper |
| Binder material | Aluminum/PE Tape |
| Braid material | Tinned copper wire |
| Operation temperature | -40°C to + 65°C |

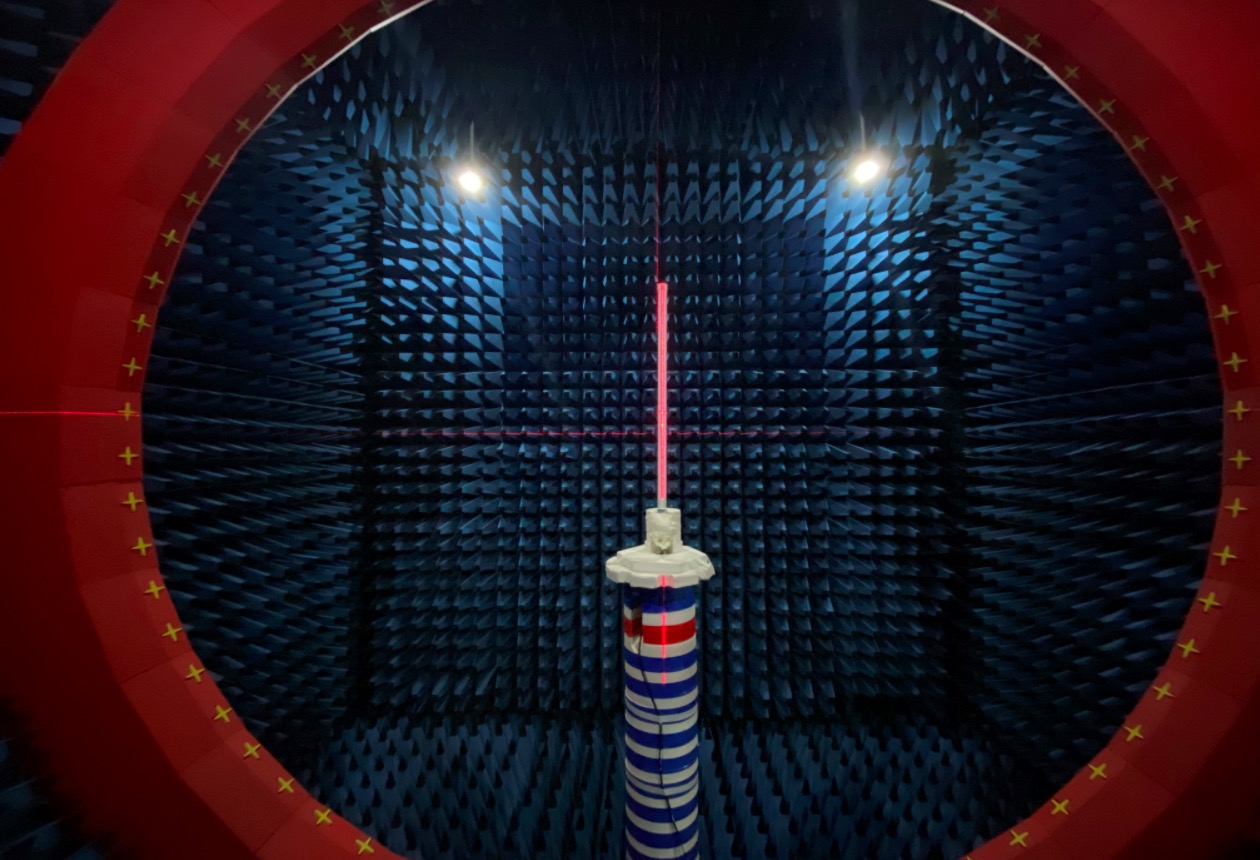

Test Unit in Laboratory
Radiation Pattern
VSWR

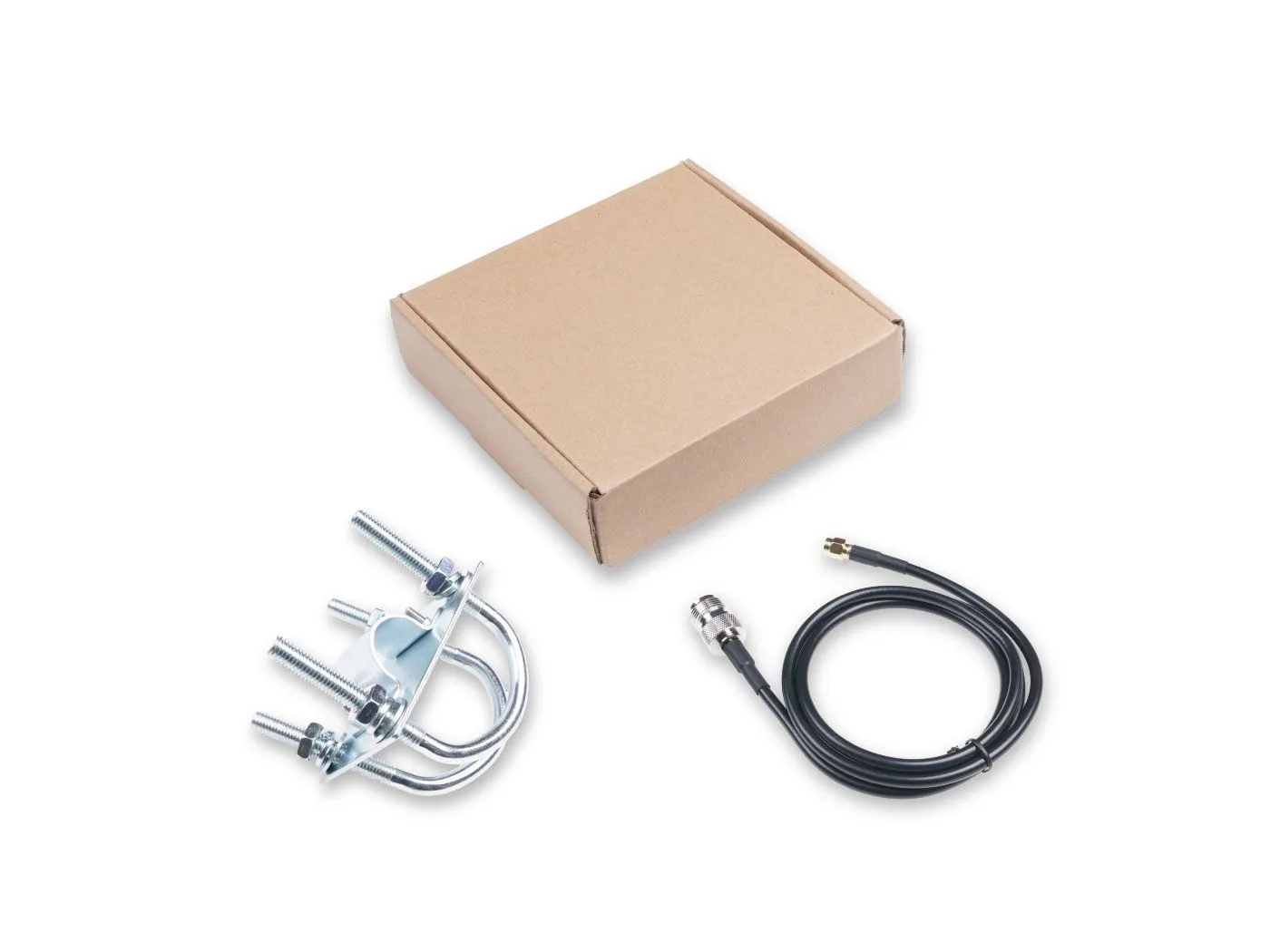

Part list
|
Antenna |
1* |
|
CFD200 cable 1mt |
1* |
|
Mounting Bracket |
1* |
ECCN/HTS
| HSCODE | 8517707090 |
| USHSCODE | 8517710000 |
| UPC | |
| EUHSCODE | 8517620000 |
| COO | CHINA |
