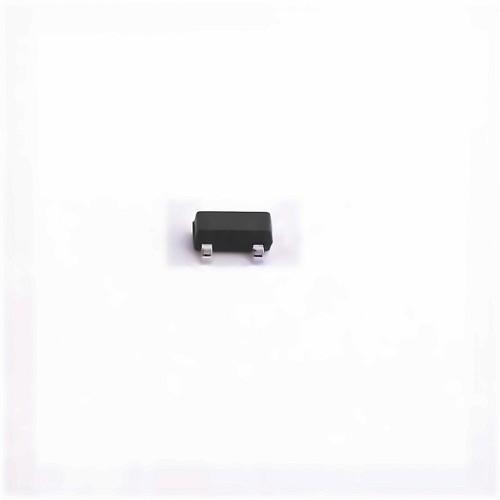

Images are for reference only
Add to Favourites
Yangzhou Yangjie Elec Tech YJL2302B
| Manufacturer | |
| Mfr. Part # | YJL2302B |
| EBEE Part # | E8699316 |
| Package | SOT-23(TO-236) |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 20V 3A 80mΩ@2.5V,2.0A 700mW 0.78V@250uA 1 N-Channel SOT-23(TO-236) MOSFETs ROHS |
This materials supports customized cables!
Learn more >>11190 In Stock for Fast Shipping
11190 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 20+ | $0.0289 | $ 0.5780 |
| 200+ | $0.0230 | $ 4.6000 |
| 600+ | $0.0197 | $ 11.8200 |
| 3000+ | $0.0166 | $ 49.8000 |
| 9000+ | $0.0150 | $ 135.0000 |
| 21000+ | $0.0139 | $ 291.9000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | Yangzhou Yangjie Elec Tech YJL2302B | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | 1 N-Channel | |
| Drain Source Voltage (Vdss) | 20V | |
| Continuous Drain Current (Id) | 3A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 80mΩ@2.5V,2.0A | |
| Power Dissipation (Pd) | 700mW | |
| Gate Threshold Voltage (Vgs(th)@Id) | 0.78V@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 29pF@10V | |
| Input Capacitance (Ciss@Vds) | 280pF@10V | |
| Total Gate Charge (Qg@Vgs) | [email protected] |
