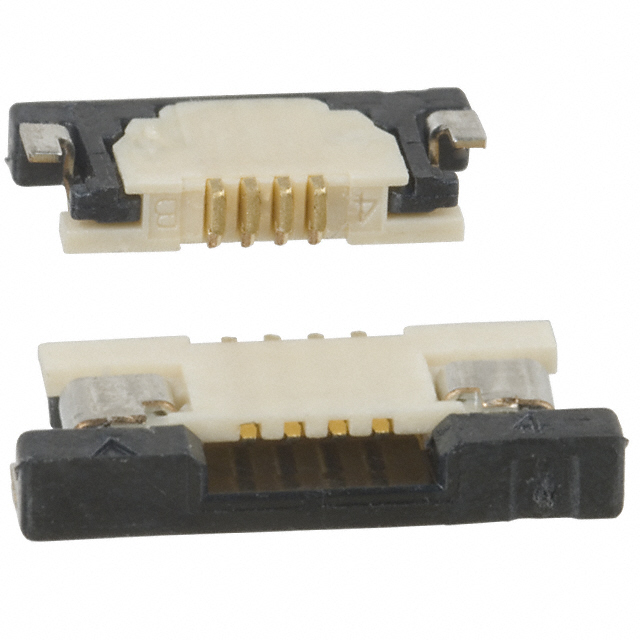

XF2L-0425-1A
| Manufacturer | |
| Mfr. Part # | XF2L-0425-1A |
| EBEE Part # | 9773634-XF2L-0425-1A-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FPC TOP 4POS 0.5MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Omron Electronics Inc-EMC Div XF2L-0425-1A | |
| Series | XF2L | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Obsolete | |
| Number of Positions | 4 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -30°C ~ 85°C | |
| Housing Color | Natural | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Zero Insertion Force (ZIF) | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 5.90µin (0.150µm) | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 0.5A | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Flat Flex Type | FPC | |
| FFC, FCB Thickness | 0.30mm | |
| Locking Feature | Slide Lock | |
| Voltage Rating | 50V | |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | |
| Connector/Contact Type | Contacts, Top | |
| Height Above Board | 0.047" (1.20mm) | |
| Cable End Type | Straight | |
| Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free | |
| Actuator Color | Black |
Description
4 Position FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
