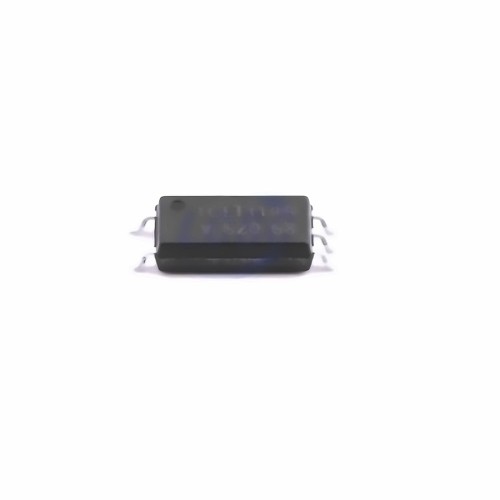

Vishay Intertech TCLT1109
| Manufacturer | |
| Mfr. Part # | TCLT1109 |
| EBEE Part # | E8139540 |
| Package | SOP-5-300mil |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 80V 5kV 50mA 300mV@1mA,10mA 1 6V 1.25V DC SOP-5-300mil Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>2179 In Stock for Fast Shipping
2179 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.2655 | $ 0.2655 |
| 10+ | $0.2287 | $ 2.2870 |
| 30+ | $0.2133 | $ 6.3990 |
| 100+ | $0.1934 | $ 19.3400 |
| 500+ | $0.1842 | $ 92.1000 |
| 1000+ | $0.1796 | $ 179.6000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Vishay Intertech TCLT1109 | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -55℃~+100℃ | |
| Output Current | 50mA | |
| Number of Channels | 1 | |
| Input Type | DC | |
| Rise Time | 3us | |
| Fall Time | 4.7us | |
| Reverse Voltage | 6V | |
| Load Voltage | 80V | |
| Isolation Voltage(Vrms) | 5kV | |
| Voltage - Forward(Vf) | 1.25V | |
| Vce Saturation(VCE(sat)) | 300mV@1mA,10mA | |
| Current transfer ratio | 200%;400% | |
| Forward Current(If) | 60mA |
