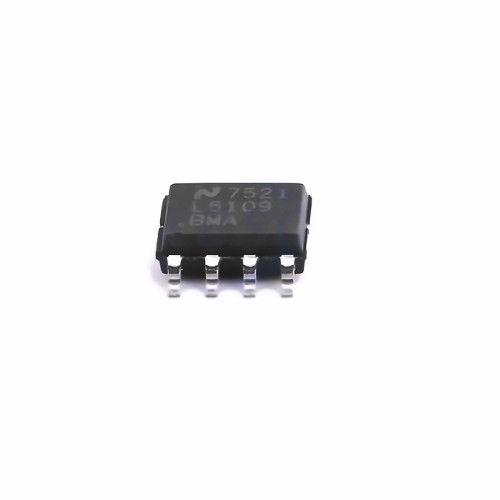

Texas Instruments LM5109BMAX/NOPB
| Manufacturer | |
| Mfr. Part # | LM5109BMAX/NOPB |
| EBEE Part # | E8116862 |
| Package | SOIC-8 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | Half Bridge 2 MOSFET 1A 15ns 15ns 8V~14V 1A SOIC-8 Gate Drivers ROHS |
This materials supports customized cables!
Learn more >>2342 In Stock for Fast Shipping
2342 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.4755 | $ 0.4755 |
| 10+ | $0.3798 | $ 3.7980 |
| 30+ | $0.3383 | $ 10.1490 |
| 100+ | $0.2872 | $ 28.7200 |
| 500+ | $0.2473 | $ 123.6500 |
| 1000+ | $0.2330 | $ 233.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Motor Driver ICs ,Gate Drivers | |
| Datasheet | Texas Instruments LM5109BMAX/NOPB | |
| RoHS | ||
| Operating Temperature | -40℃~+125℃ | |
| Voltage - Supply | 8V~14V | |
| load type | MOSFET | |
| Features | Under Voltage Protection | |
| Driven Configuration | Half-Bridge | |
| Rise Time | 15ns | |
| Fall Time | 15ns | |
| Peak Output Current(sink) | 1A | |
| Low Level Delay Time | 30ns | |
| High Level Delay Time | 30ns | |
| Current - Output High(IOH) | 1A | |
| Quiescent Current(Iq) | 300uA | |
| Input Logic Level - Low | 800mV~1.8V |
Shopping Guide
Expand
2342 Stock for Shipping Fast
2342 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.4755 | $ 0.4755 |
| 10+ | $0.3798 | $ 3.7980 |
| 30+ | $0.3383 | $ 10.1490 |
| 100+ | $0.2872 | $ 28.7200 |
| 500+ | $0.2473 | $ 123.6500 |
| 1000+ | $0.2330 | $ 233.0000 |
Best price for more quantity?
$
