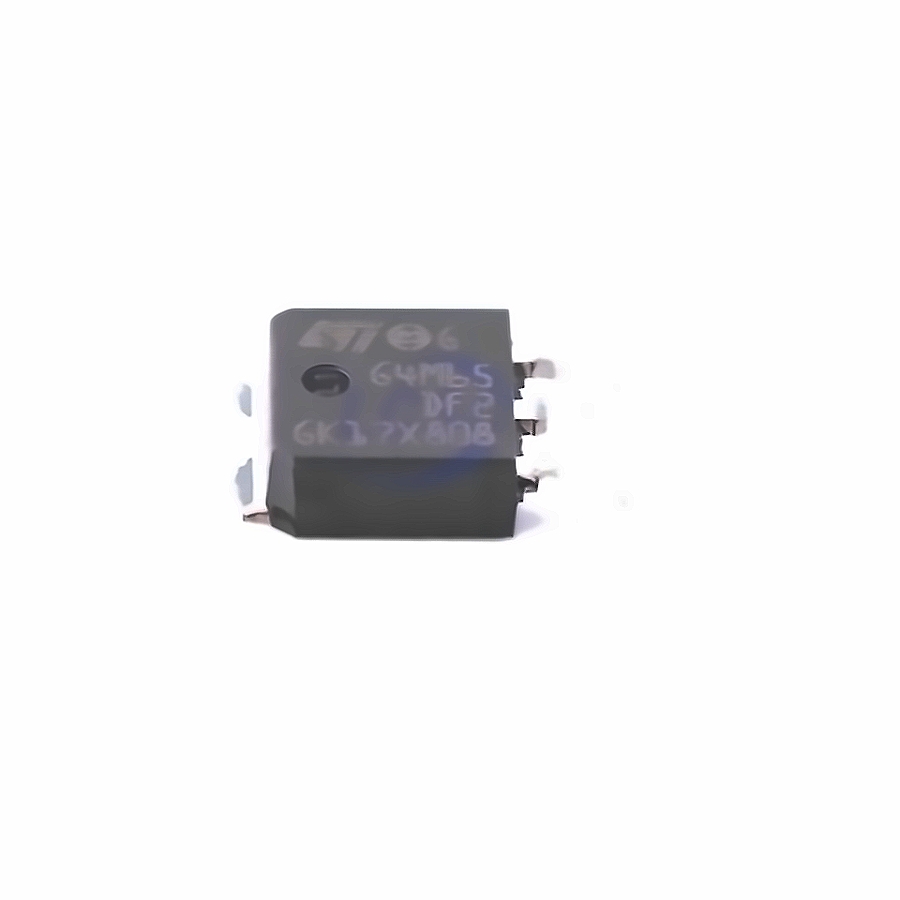

STMicroelectronics STGD4M65DF2
| Manufacturer | |
| Mfr. Part # | STGD4M65DF2 |
| EBEE Part # | E8222118 |
| Package | DPAK |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 68W 8A 650V FS(Field Stop) TO-252-2(DPAK) IGBT Transistors / Modules ROHS |
This materials supports customized cables!
Learn more >>701 In Stock for Fast Shipping
701 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.3117 | $ 0.3117 |
| 10+ | $0.2835 | $ 2.8350 |
| 30+ | $0.2683 | $ 8.0490 |
| 100+ | $0.2507 | $ 25.0700 |
| 500+ | $0.2425 | $ 121.2500 |
| 1000+ | $0.2390 | $ 239.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,IGBT Transistors / Modules | |
| Datasheet | STMicroelectronics STGD4M65DF2 | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃@(Tj) | |
| Collector-Emitter Breakdown Voltage (Vces) | 650V | |
| Gate-Emitter Threshold Voltage (Vge(th)@Ic) | 5V@250uA | |
| Pd - Power Dissipation | 68W | |
| IGBT Type | FS (Field Stop) | |
| Gate Charge(Qg) | 15.2nC | |
| Td(off) | 86ns | |
| Td(on) | 12ns | |
| Reverse Transfer Capacitance (Cres) | 8pF | |
| Reverse Recovery Time(trr) | 133ns | |
| Switching Energy(Eoff) | 136uJ | |
| Turn-On Energy (Eon) | 40uJ | |
| Input Capacitance(Cies) | 369pF | |
| Pulsed Current- Forward(Ifm) | 16A | |
| Output Capacitance(Coes) | 24.8pF |
