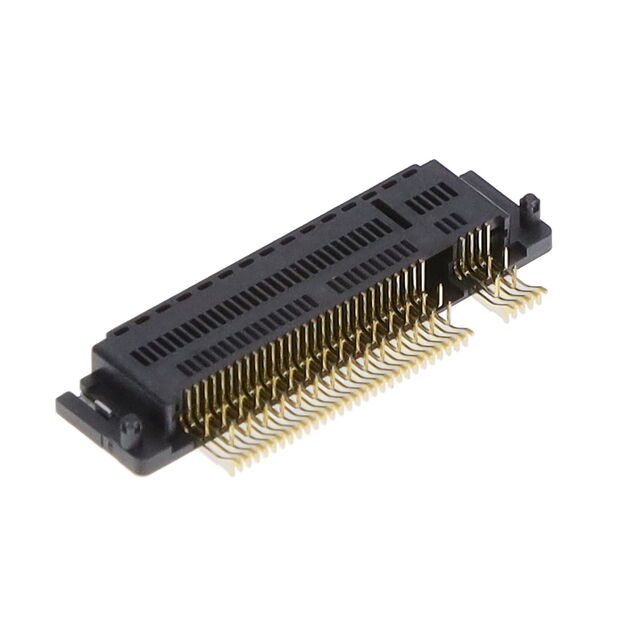

Images are for reference only
Add to Favourites
SM3ZS067B120AM2R1500
| Manufacturer | |
| Mfr. Part # | SM3ZS067B120AM2R1500 |
| EBEE Part # | 11729536-SM3ZS067B120AM2R1500-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN EDGE DUAL FMALE 67POS 0.020 |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Card Edge Connectors | |
| Datasheet | JAE Electronics SM3ZS067B120AM2R1500 | |
| Series | SM3 | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 67 | |
| Contact Type | - | |
| Mounting Type | Through Hole, Right Angle | |
| Operating Temperature | -40°C ~ 80°C | |
| Features | Board Guide | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 5.11µin (0.130µm) | |
| Termination | Solder | |
| Pitch | 0.020" (0.50mm) | |
| Color | - | |
| Number of Rows | 2 | |
| Gender | Female | |
| Material - Insulation | Thermoplastic | |
| Flange Feature | - | |
| Card Thickness | 0.031" (0.79mm) | |
| Card Type | M.2 (NGFF) Mini Card | |
| Number of Positions/Bay/Row | - | |
| Read Out | Dual |
Description
67 Position Female Connector M.2 (NGFF) Mini Card Gold 0.020" (0.50mm)
