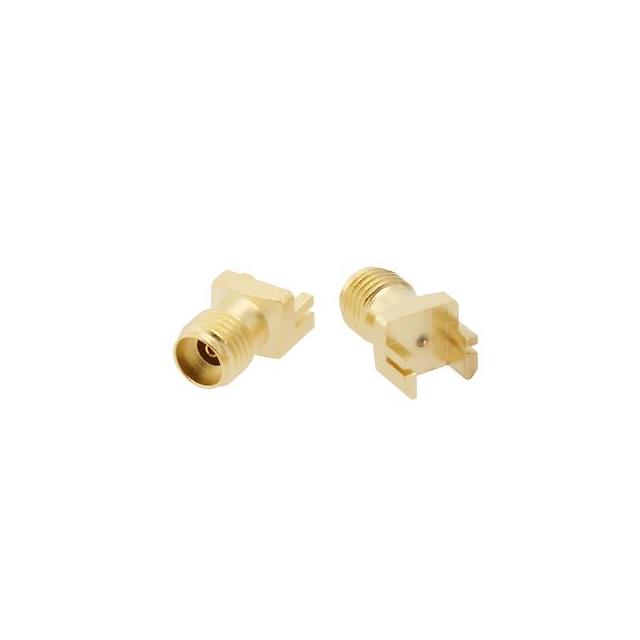

Images are for reference only
Add to Favourites
SM03FS016
| Manufacturer | |
| Mfr. Part # | SM03FS016 |
| EBEE Part # | 9631322-SM03FS016-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | Board Edge 2.92 mm (DC to 40 GHz |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $27.7000 | $ 27.7000 |
| 10+ | $26.3000 | $ 263.0000 |
| 25+ | $24.9000 | $ 622.5000 |
| 50+ | $23.5000 | $ 1175.0000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,Coaxial Connectors (RF) | |
| Datasheet | WITHWAVE CO LTD SM03FS016 | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack, Female Socket | |
| Mounting Type | Board Edge, End Launch | |
| Mounting Feature | - | |
| Fastening Type | Threaded | |
| Operating Temperature | - | |
| Housing Color | Gold | |
| Ingress Protection | - | |
| Features | - | |
| Base Product Number | SM03F | |
| Includes | - | |
| Mfr | WITHWAVE CO LTD | |
| Cable Group | - | |
| Contact Termination | Solder | |
| Impedance | 50 Ohms | |
| Mating Cycles | - | |
| Connector Style | 2.92mm | |
| Body Material | Brass | |
| Body Finish | Gold | |
| Dielectric Material | - | |
| Frequency - Max | 40 GHz | |
| Center Contact Material | Beryllium Copper | |
| Center Contact Plating | Gold | |
| Insertion Loss | - | |
| Shield Termination | Solder | |
| Number of Ports | 1 |
Description
2.92mm Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
