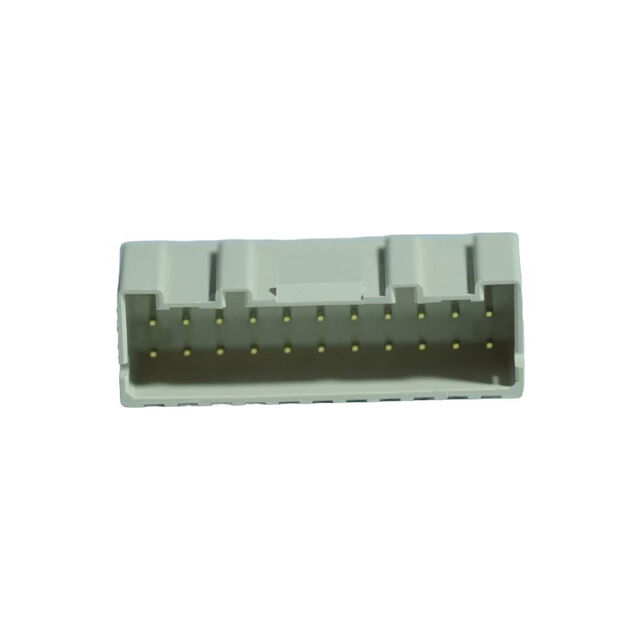

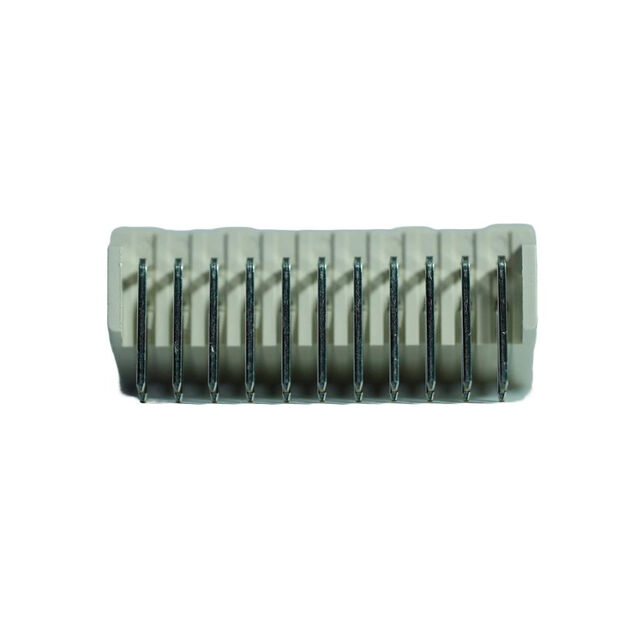

SJW20-22WLA
| Manufacturer | |
| Mfr. Part # | SJW20-22WLA |
| EBEE Part # | 11600473-SJW20-22WLA-EB |
| Customer # | |
| EDA Models | |
| Description | 2 MM W TO B CONNECTOR 22P HEADER |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.5500 | $ 0.5500 |
| 10+ | $0.4480 | $ 4.4800 |
| 25+ | $0.4132 | $ 10.3300 |
| 50+ | $0.3884 | $ 19.4200 |
| 192+ | $0.3446 | $ 66.1632 |
| 384+ | $0.3241 | $ 124.4544 |
| 576+ | $0.3126 | $ 180.0576 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors, Interconnects ,Rectangular Connectors ,Common Rectangular | |
| Series | SJW | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Header | |
| Number of Positions | 22 | |
| Contact Type | Male Pin | |
| Mounting Type | Through Hole, Right Angle | |
| Fastening Type | Locking Ramp | |
| Operating Temperature | -25°C ~ 85°C | |
| Ingress Protection | - | |
| Material Flammability Rating | UL94 V-0 | |
| Features | - | |
| Contact Shape | Square | |
| Mfr | JAM | |
| Contact Finish - Mating | Tin | |
| Contact Material | Brass | |
| Applications | - | |
| Current Rating (Amps) | 3A | |
| Termination | Solder | |
| Style | Board to Cable/Wire | |
| Number of Rows | 2 | |
| Voltage Rating | 250VAC/DC | |
| Pitch - Mating | 0.079" (2.00mm) | |
| Row Spacing - Mating | 0.079" (2.00mm) | |
| Number of Positions Loaded | All | |
| Shrouding | Shrouded - 4 Wall | |
| Contact Length - Mating | - | |
| Contact Length - Post | 0.130" (3.30mm) | |
| Overall Contact Length | - | |
| Insulation Height | 0.307" (7.80mm) | |
| Contact Finish Thickness - Mating | - | |
| Contact Finish - Post | Tin | |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | |
| Insulation Color | White | |
| Contact Finish Thickness - Post | - | |
| Mated Stacking Heights | - |
Description
Connector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
