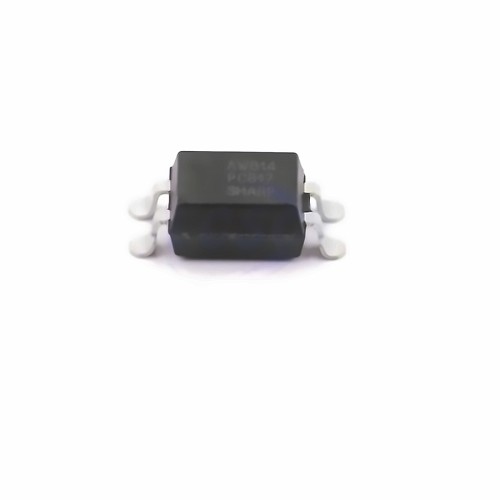

Sharp Microelectronics PC817X1CSP9F
| Manufacturer | |
| Mfr. Part # | PC817X1CSP9F |
| EBEE Part # | E897308 |
| Package | SMD-4P |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 80V 5kV 50mA 100mV@1mA,20mA 1 6V 1.2V DC SMD-4P Transistor, Photovoltaic Output Optoisolators ROHS |
This materials supports customized cables!
Learn more >>2305 In Stock for Fast Shipping
2305 available for immediate shippingCan Ship in 1-2 Business Days
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 5+ | $0.1016 | $ 0.5080 |
| 50+ | $0.0796 | $ 3.9800 |
| 150+ | $0.0686 | $ 10.2900 |
| 500+ | $0.0604 | $ 30.2000 |
| 2000+ | $0.0538 | $ 107.6000 |
| 4000+ | $0.0505 | $ 202.0000 |
Best price for more quantity?
$
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Optoisolators ,Transistor, Photovoltaic Output Optoisolators | |
| Datasheet | Sharp Microelectronics PC817X1CSP9F | |
| RoHS | ||
| Output Type | Phototransistor | |
| Operating Temperature | -30℃~+100℃ | |
| Output Current | 4mA | |
| Number of Channels | 1 | |
| Input Type | DC | |
| Rise Time | 4us | |
| Fall Time | 3us | |
| Reverse Voltage | 6V | |
| Load Voltage | 80V | |
| Isolation Voltage(Vrms) | 5kV | |
| Pd - Power Dissipation | 200mW | |
| Voltage - Forward(Vf) | 1.2V | |
| Vce Saturation(VCE(sat)) | 200mV@20mA,1mA | |
| Current transfer ratio | 600%;50% | |
| Forward Current(If) | 50mA |
