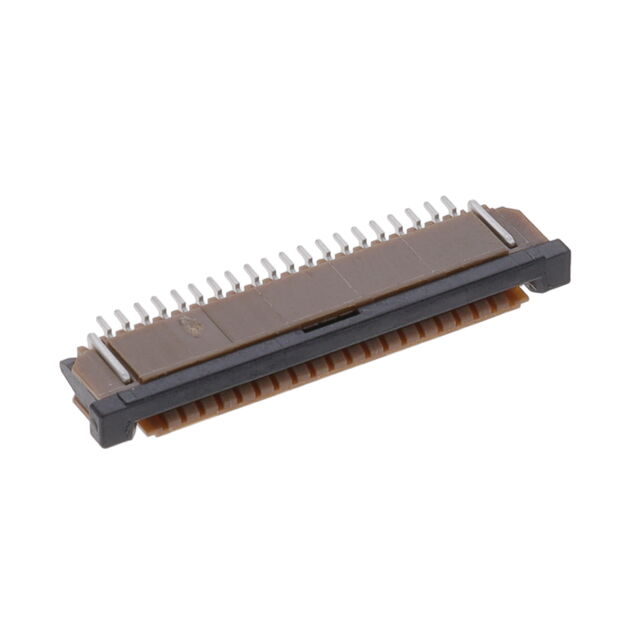

Images are for reference only
Add to Favourites
SFW20R-2STE1LF
| Manufacturer | |
| Mfr. Part # | SFW20R-2STE1LF |
| EBEE Part # | 9774437-SFW20R-2STE1LF-EB |
| Customer # | |
| Datasheet | |
| EDA Models | |
| Description | CONN FFC FPC TOP 20POS 1MM R/A |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.9600 | $ 0.9600 |
| 10+ | $0.8120 | $ 8.1200 |
| 25+ | $0.7616 | $ 19.0400 |
| 50+ | $0.7250 | $ 36.2500 |
| 100+ | $0.6904 | $ 69.0400 |
| 250+ | $0.6471 | $ 161.7750 |
| 500+ | $0.6162 | $ 308.1000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Connectors ,FFC, FPC (Flat Flexible) Connector Assemblies | |
| Datasheet | Amphenol ICC (FCI) SFW20R-2STE1LF | |
| Series | SFW-R | |
| Packaging | Tape & Reel (TR):::Cut Tape (CT):::Digi-Reel® | |
| Part Status | Active | |
| Number of Positions | 20 | |
| Mounting Type | Surface Mount, Right Angle | |
| Operating Temperature | -55°C ~ 105°C | |
| Housing Color | Brown | |
| Material Flammability Rating | UL94 V-0 | |
| Features | Zero Insertion Force (ZIF) | |
| Base Product Number | SFW20R | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Mating Cycles | 20 | |
| Current Rating (Amps) | 1A | |
| Termination | Solder | |
| Pitch | 0.039" (1.00mm) | |
| Flat Flex Type | FFC, FPC | |
| FFC, FCB Thickness | 0.30mm, 0.33mm | |
| Locking Feature | Slide Lock | |
| Voltage Rating | 100V | |
| Housing Material | Polyphenylene Sulfide (PPS), Glass Filled | |
| Connector/Contact Type | Contacts, Top | |
| Height Above Board | 0.106" (2.70mm) | |
| Cable End Type | Notched | |
| Actuator Material | Polyphenylene Sulfide (PPS), Glass Filled | |
| Actuator Color | Brown |
Description
20 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
