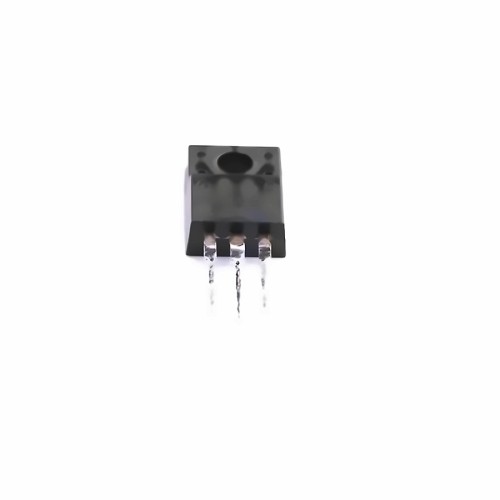

Images are for reference only
Add to Favourites
RENESAS 2SA1744-AZ
| Manufacturer | |
| Mfr. Part # | 2SA1744-AZ |
| EBEE Part # | E8133875 |
| Package | TO-220 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | EAR99 |
| Description | 60V 30W 100@3A,2V 15A PNP TO-220 Bipolar (BJT) ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.6311 | $ 1.6311 |
| 10+ | $1.3725 | $ 13.7250 |
| 30+ | $1.2118 | $ 36.3540 |
| 100+ | $1.0466 | $ 104.6600 |
| 500+ | $0.9716 | $ 485.8000 |
| 1000+ | $0.9395 | $ 939.5000 |
| 2000+ | $0.9257 | $ 1851.4000 |
| 4000+ | $0.9181 | $ 3672.4000 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,Bipolar (BJT) | |
| Datasheet | RENESAS 2SA1744-AZ | |
| RoHS | ||
| Operating Temperature | -55℃~+150℃ | |
| Type | PNP | |
| Collector - Emitter Voltage VCEO | 60V | |
| Current - Collector(Ic) | 15A | |
| Number | 1 PNP | |
| Pd - Power Dissipation | 30W | |
| DC Current Gain | 100 | |
| Emitter-Base Voltage(Vebo) | 7V | |
| Current - Collector Cutoff | 10uA | |
| Vce Saturation(VCE(sat)) | 300mV | |
| Transition frequency(fT) | 80MHz |
