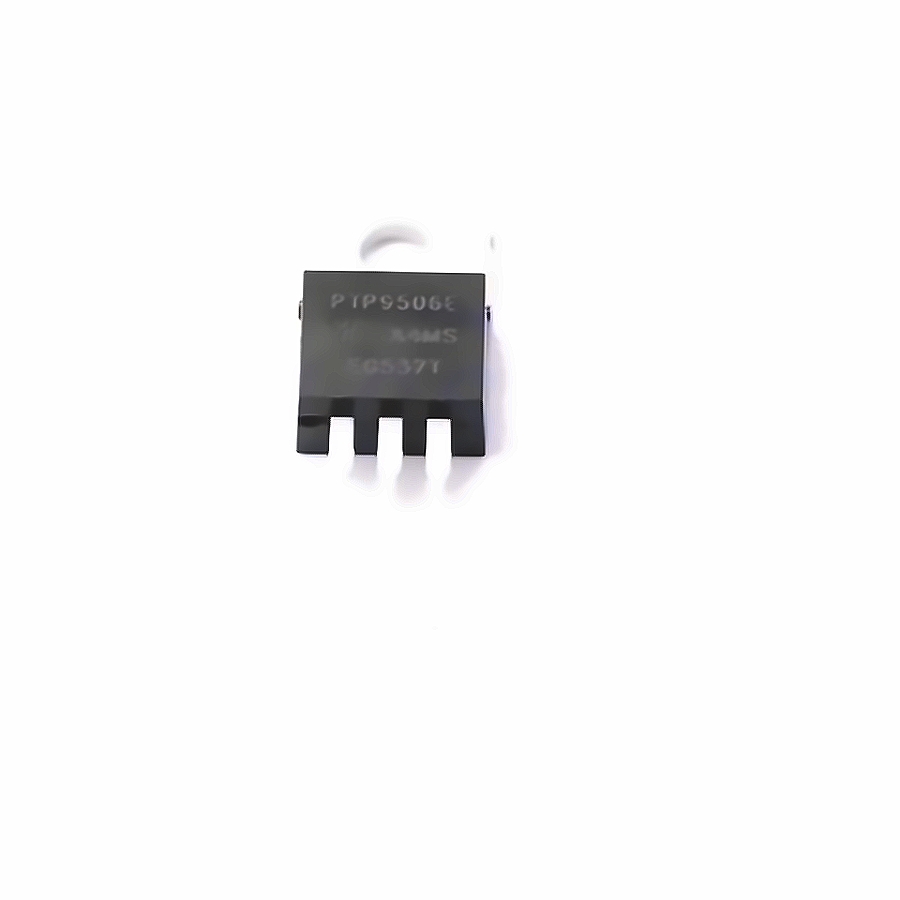

Images are for reference only
Add to Favourites
PIP PTP9506E
| Manufacturer | |
| Mfr. Part # | PTP9506E |
| EBEE Part # | E8575793 |
| Package | TO-220 |
| Customer # | |
| Datasheet | |
| EDA Models | |
| ECCN | - |
| Description | 68V 95A 6.5mΩ@10V,24A 136W 2V@250uA 1 N-channel TO-220 MOSFETs ROHS |
This materials supports customized cables!
Learn more >>In Stock : Please Inquire
Please send RFQ , we will respond immediately.
Sales Unit: PieceFull Bag: 200
| Qty. | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.2468 | $ 0.2468 |
| 10+ | $0.2420 | $ 2.4200 |
| 30+ | $0.2387 | $ 7.1610 |
| 100+ | $0.2355 | $ 23.5500 |
Recommended For You
Specifications
2768products found.Show Similar| Type | Description | Select All |
|---|---|---|
| Category | Transistors/Thyristors ,MOSFETs | |
| Datasheet | PIP PTP9506E | |
| RoHS | ||
| Operating Temperature | -55℃~+175℃ | |
| Type | 1 N-channel | |
| Drain Source Voltage (Vdss) | 68V | |
| Continuous Drain Current (Id) | 95A | |
| Drain Source On Resistance (RDS(on)@Vgs,Id) | 6.5mΩ@10V,24A | |
| Power Dissipation (Pd) | 136W | |
| Gate Threshold Voltage (Vgs(th)@Id) | 2V@250uA | |
| Reverse Transfer Capacitance (Crss@Vds) | 220pF@30V | |
| Input Capacitance (Ciss@Vds) | - | |
| Total Gate Charge (Qg@Vgs) | 70nC@30V |
